Summary of Contents for Gravity Measurement SWB7

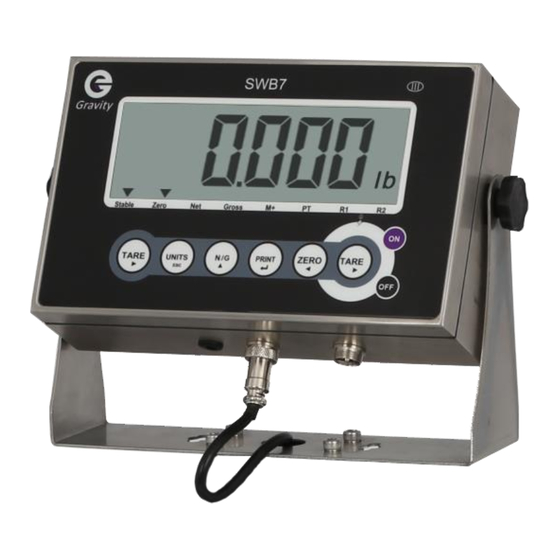

- Page 1 WEIGHING SCALE user manual Model: SWB7 Please read this manual carefully before operation ----Important safety info ----Warranty GRAVITY MEASUREMENT, INC.
-
Page 2: Important Safety Information
@SWB7 USER MANUAL Important Safety Information READ ALL INSTRUCTIONS BEFORE USING SCALES TO ENSURE MAXIMUM SAFETY, BEST PERFORMANCE, AND TO GAIN KNOWLEDGE OF OUR SCALE, IT IS ESSENTIAL THAT YOU OR ANY OTHER OPERATOR OF THE SCALE READ AND UNDERSTAND THE CONTENTS OF THIS MANUAL BEFORE OPERATING THE DEVICE. -
Page 3: Warranty
Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Gravity Measurement. The company or its authorized technician reserves the right to repair or replace the components at any of its workshops depending on the severity of the problems. -
Page 4: System Power Consumption
@SWB7 USER MANUAL What is inside Box AC/DC adaptor (110V) SWB7 indicator Two wire seals. The wire seal is used usually by the inspector of Department of Weight and Measure or authorized dealer. The wire seal is threaded through a metal rode that protrudes through the bottom of the device and also through a hole in the scale base adjacent to the metal rode. -
Page 5: Basic Function Operation
@SWB7 USER MANUAL BASIC FUNCTION OPERATION Press and hold this key for 2 seconds to turn off the balance. Press this key to turn on the balance 1. To select the desired weight unit. 2. To exit from setup mode. -
Page 6: Basic Parameter Setting
@SWB7 USER MANUAL 2) Connection of RS232 to PC or Printer INDICATOR PC/PRINTER ------------- RXD ------------- TXD ------------- GND ------------- NC BASIC PARAMETER SETTING To access to functions setting, press the key at the same time. to select the parameter (UF-1 ~ UF-9) Press the “... - Page 7 @SWB7 USER MANUAL Remarks: A -- Buzzer on: 0= Stable not required 1= Stable required B – LCD indicator and RELAY on: 0= Stable not required 1= Stable required C -- Buzzer beeps when: 0= Buzzer off 1= OK 2= LO and HI ...
- Page 8 @SWB7 USER MANUAL HoLd 4 : Stable hold (when held can auto cancel at zero) 1. Press the key to access to hold function configuration. 2. Use the key to select the desired mode. 3. Press the key to confirm.
- Page 9 @SWB7 USER MANUAL Baud rate: B 1200 : Baud rate 1200 B 2400 : Baud rate 2400 B 4800 : Baud rate 4800 B 9600 : Baud rate 9600 B19200 : Baud rate 19200 B38400 : Baud rate 38400 Remarks: ST,GS,+ 1.000lb...
- Page 10 @SWB7 USER MANUAL 1 2 1 1 2 1 1 2 3 4 5 6 7 8 1 2 1 2 HEAD1 HEAD2 DATA UNIT CR Fixed 21 BYTES ASCII (tl.T lboz) 1 2 1 1 2 1 1 2 3 4 5...
-
Page 11: Speed Setting
@SWB7 USER MANUAL Output examples : 1. Example +0.876 kg stable net weight : 2. Example -1.568 lb unstable gross weight : 3. Example -20. 5.40 lb oz unstable gross weight : 0D 0A ﹒ ﹒ 4. Example +1000 pcs stable net weight :... - Page 12 @SWB7 USER MANUAL 1. Press the key to display the G value of manufacture place. 2. If set the G value of local press the key and then press the key and key to input the new G value. 3. Press the key to confirm.
- Page 13 @SWB7 USER MANUAL Advanced Function (Service Manual) –copied from SWB6 Warning: The following functions are only for trained scale dealers and distributors, not for the end users. For end users, do not modify it by yourself. Please consult our distributors or your local authorized metrology workers.
- Page 14 @SWB7 USER MANUAL calibration Display the full capacity 0 3 0 0 . 0 0 *Full capacity weights recommended for calibration of the scale, or at least 60% F.S. to assure the accurate weighing, it’s not allowed to do with 1% F.S weight or more than 100%F.S.weight.
- Page 15 @SWB7 USER MANUAL *It was blocked when UF-5 set of HOLD 1 *1=15Hz 2=30Hz 3=7.5Hz L F 5 Zero Tracking The same operation as U F 8 Zero Track *It was blocked when U F - 5 set of HOLD 1(animal weighing)
- Page 16 @SWB7 USER MANUAL Officially Distributed B GRAVITY MEASUREMENT, INC.
