INSTALLATION AND OPERATION MANUAL
FDC1 / FDC2
FIBER OPTIC CABLE BREAKAGE MONITOR/DETECTOR
The FDC1 single-channel and FDC2 dual-channel modems are designed to
detect and report a breakage or the loss of optical signal in either multimode or
single-mode fiber plants. The dual-channel version contains two independent
transmitter and receiver units in one compact package, and is ideal for
continuously monitoring the optical status of two separate fiber loops.
The solid-state non-latching relays default to a normally open state in the event of
power loss or loss of optical signal. See Figure 5 on Page 4 for contact settings.
Each module incorporates power and individual status indicating LED's for
monitoring confirmation of contact closure of each of the eight channels. See
Figures 6 and 7 on Page 4 for an explanation of the LED indicators.

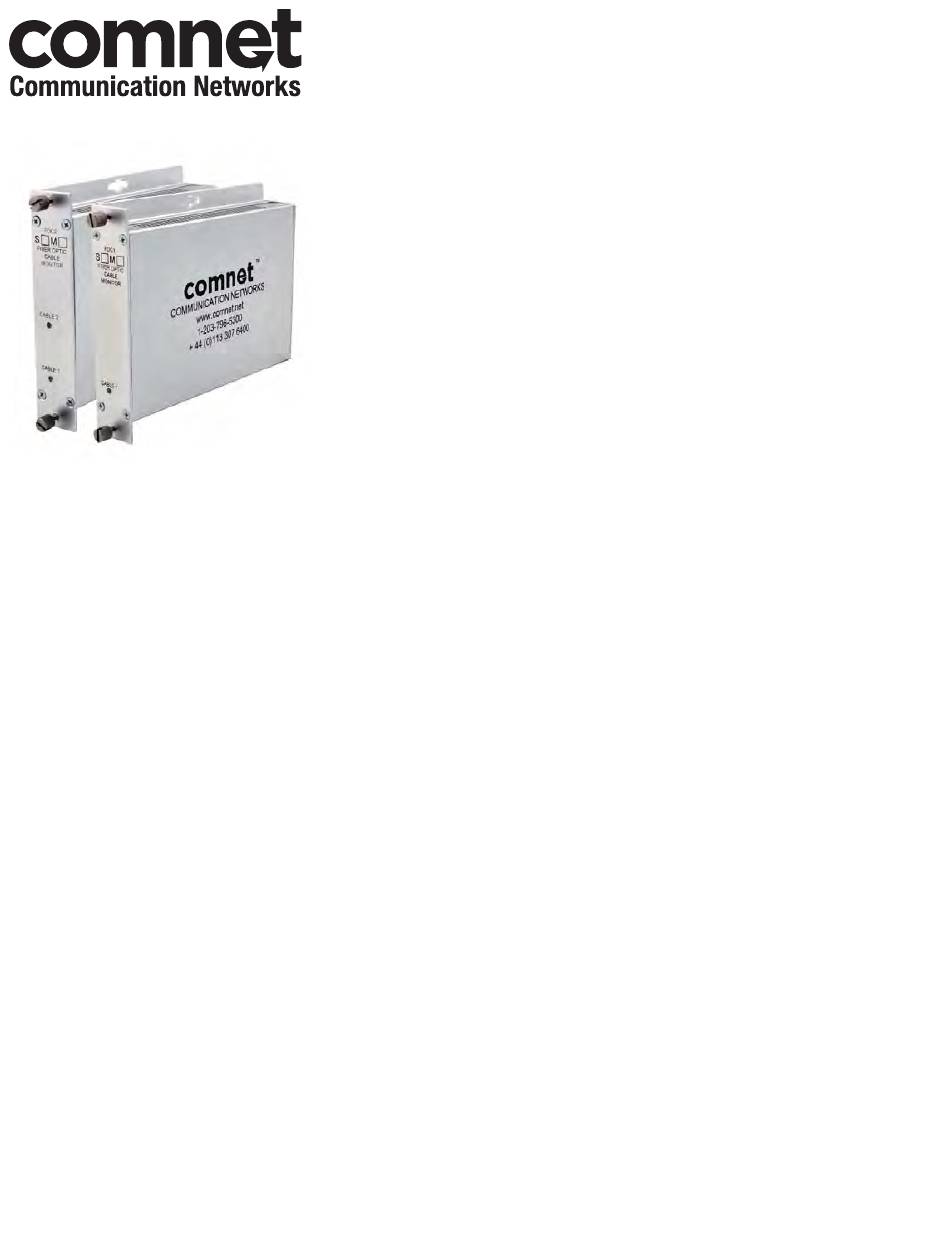

Packaged in the exclusive ComNet ComFit housing, these units may be
either wall or rack-mounted, or may be DIN-rail mounted by the addition of
ComNet model DINBKT1 adaptor plate. See Figure A on Page 5 for mounting
instructions.
See Figures 1 – 7 for complete installation information.
INS_FDC1-FDC2_REV–
02/21/11
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comnet FDC1

  • Page 1 Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. See Figure A on Page 5 for mounting instructions. See Figures 1 – 7 for complete installation information.
  • Page 2 INSTALLATION AND OPERATION MANUAL FDC1 / FDC2 FIGURE 1 – FDC1 TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–27 VDC @ 150mA Rack Mount: From Rack FIGURE 2 – FDC1 TRANSCEIVER...
  • Page 3 INSTALLATION AND OPERATION MANUAL FDC1 / FDC2 FIGURE 3 – FDC2 TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE Power Supply: Surface Mount: 8–27 VDC @ 150mA Rack Mount: From Rack FIGURE 4 – FDC2 TRANSCEIVER...
  • Page 4: Installation And Operation Manual

    FIGURE 5 – TYPICAL RELAY SETTINGS Single Channel FDC1 Dual Channel FDC2 NO = Normally Open* NC = Normally Closed* * Note: Power On, cable intact state. FIGURE 6 – LED INDICATORS (FDC1) CABLE 1 GREEN Fiber Loop Intact Fiber Loop Broken Unit powered down FIGURE 7 –...
  • Page 5 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FDC1-FDC2_REV– 02/21/11 © 2011 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 5...

This manual is also suitable for:

Fdc2
