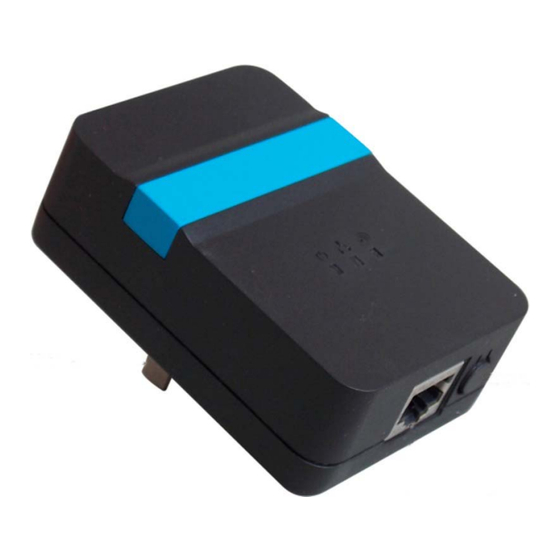

Manhattan 525664 User Manual

11n mini wireless ap
Hide thumbs Also See for 525664:
Table of Contents

Advertisement

Quick Links

11N Mini Wireless AP
User Manual
Version 1.0 | 2/11/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 525664 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan 525664

Summary of Contents for Manhattan 525664

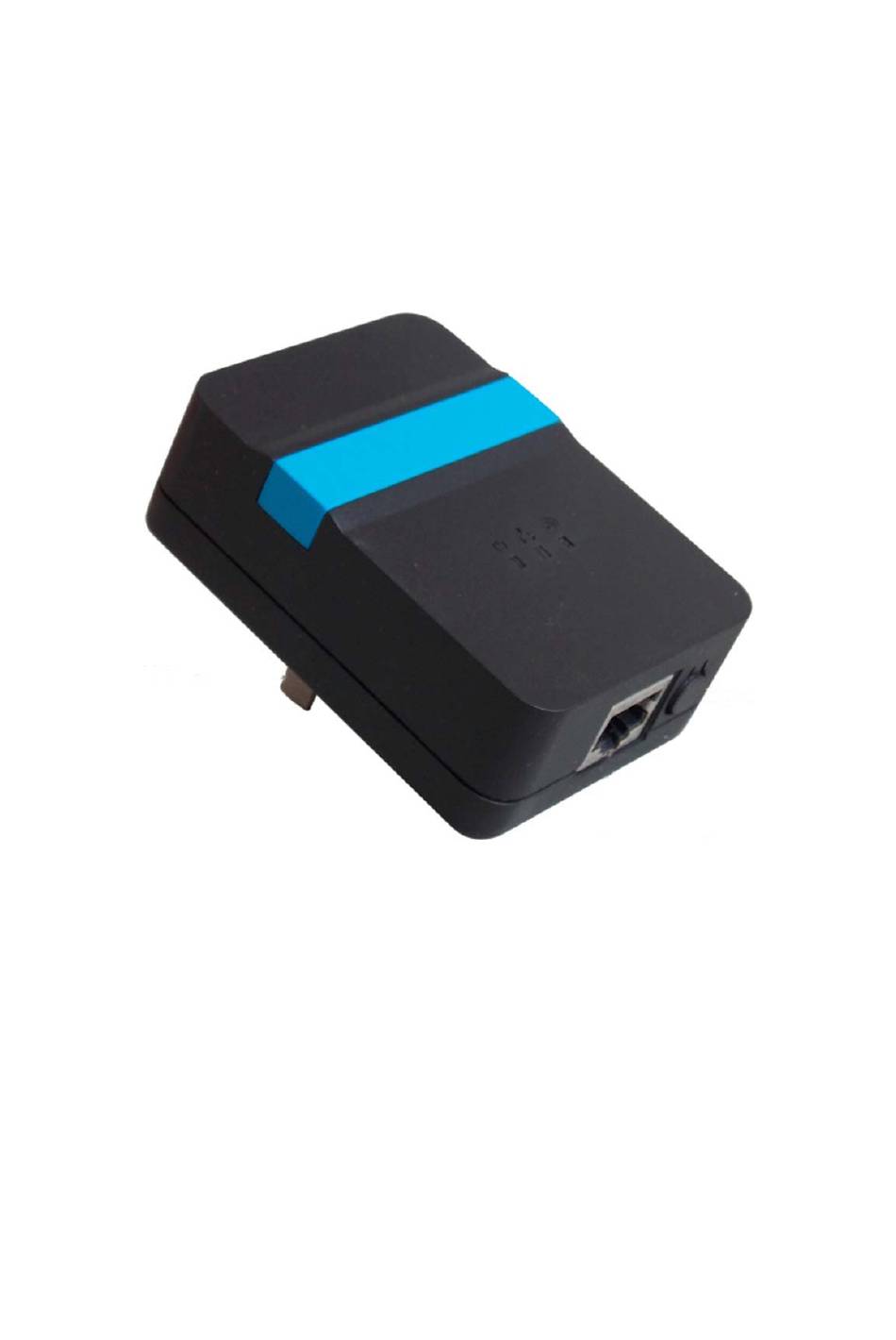

  • Page 1 11N Mini Wireless AP User Manual Version 1.0 | 2/11/2014...

  • Page 2: Table Of Contents

    11N Mini Wireless AP CONTENTS Chapter 1 Introduction........................ 3 1.1 Features....................... 3 1.2 System Requirement ................... 3 1.3 Environment......................3 1.4 Package Contents....................3 Chapter 2 Hardware Installation....................5 2.1 Front Panel ......................5 2.2 Physical Interface....................5 2.3 Typical install......................6 Chapter 3 TCP/IP Configuration ....................
  • Page 3 11N Mini Wireless AP 4.8.2 Upgrade Firmware....................30 4.8.3 Save/Reload Settings ..................30 4.8.4 Password ......................30 4.8.5 Reboot........................31 4.8.6 Language......................31 4.9 Status ......................... 31 4.9.1 Status........................31 4.9.2 Statistics....................... 32 4.9.3 System Log......................32 4.10 Logout ......................33...

  • Page 4: Chapter 1 Introduction

    11N Mini Wireless AP Chapter 1 Introduction Congratulations on your purchase of this outstanding 11N Mini Wireless AP. The Wireless AP is a 150M Mini Wireless AP/Repeater, fully complies with 802.11b/g/n specifications, adopting 1T1R architecture, up to 150Mbps data rate, you can connect notebook computer to a wireless network and access high-speed Internet connection which is beneficial for the such as HD video streaming and online gaming applications.
  • Page 5 11N Mini Wireless AP 11N Mini Wireless AP User Manual RJ-45 Network Cable Warranty Card...

  • Page 6: Chapter 2 Hardware Installation

    11N Mini Wireless AP Chapter 2 Hardware Installation 2.1 Front Panel The front panel provides LED’s for device status. Refer to the following table for the meaning of each feature. Name Status Indication Power is off. POWER Power is on. There is no device linked to the corresponding port.

  • Page 7: Typical Install

    11N Mini Wireless AP Interface Description A Power Plug for connecting the AP to a 100V~240V AC power Power Plug socket. A 10/100Mbps LAN/WAN Port for connecting the AP to the PC or the Wired Port broadband device with a network cable. The Reset Button has two functions, WPS and Factory Default.
  • Page 8 11N Mini Wireless AP 1. Connect the LAN port of Wireless AP to the wired network port with and Ethernet cable. 2. Plug the power plug of Wireless AP in electrical wall socket. 3. Power on the PC(s) and notebook(s). Router Mode: As a wireless router, Wireless AP enables multi-user to share Internet via DSL/Cable Modem.
  • Page 9 11N Mini Wireless AP by wired way. 1. Connect the PC to the LAN port of Wireless AP with an Ethernet cable. 2. Plug the power plug of Wireless AP in electrical wall socket. 3. 3. Power on the PC.

  • Page 10: Chapter 3 Tcp/Ip Configuration

    11N Mini Wireless AP Chapter 3 TCP/IP Configuration 3.1 Set the Network Configurations Under AP mode, you can proceed configuration by using the mode of wireless access or wired access. Under Router mode, you can access device to process configuration by using the mode of wireless access.
  • Page 11 11N Mini Wireless AP 4. Select "Obtain an IP address automatically" or select "Use the following IP address(S)". A. Select "Obtain an IP address automatically" and "Obtain DNS server address automatically". Click "OK". B. "Use the following IP address (S)" IP Address: 192.168.10.XXX :( XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.10.254...

  • Page 12: Getting Started

    11N Mini Wireless AP will be automatic to shut down, you need to press the B method and set the IP. Click "OK" to save the configurations. 3.2 Getting Started To access the configuration pages, open a web-browser such as Internet Explorer and enter the IP address of the AP (192.168.10.254).

  • Page 13: Chapter 4 Configuring The Ap

    11N Mini Wireless AP Chapter 4 Configuring the AP This chapter will show each Web page’s key functions and the configuration way. 4.1 Operating Mode The Wireless AP supports three operation modes, Gateway, Bridge and Wireless ISP. And each mode is suitable for different use, please choose correct mode. 4.2 WAN Interface There are two submenus under the WAN Interface menu: WAN Interface, DDNS.
  • Page 14 11N Mini Wireless AP 1. If you ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP option. The Static IP settings page will appear: IP Address / Subnet Mask: This is the AP's IP Address and Subnet Mask as seen by external users on the Internet (including your ISP).
  • Page 15 11N Mini Wireless AP Clone Mac Address: You can configure the MAC address of the WAN. 2. If your ISP provides the DHCP service, please select DHCP Client option, and the AP’s will automatically get IP parameters from your ISP. You can see the page as follows: Host Name: This option specifies the Host Name of the AP.
  • Page 16 11N Mini Wireless AP User Name / Password: Enter the User Name and Password you use when logging onto your ISP through a PPPoE connection. Service Name(AC): The service name and AC (Access Concentrator) name should not be configured unless you are sure it is necessary for your ISP. In most cases, leaving these fields blank will work.

  • Page 17: Ddns

    11N Mini Wireless AP Dynamic IP (DHCP): Choose the IP address information provided by automatic acquisition ISP, or manual input. Default Gateway: Enter the gateway IP provided by your L2TP Server. User Name / Password: Enter the User Name and Password you use when logging onto your ISP through a L2TP connection.

  • Page 18: Lan Interface

    11N Mini Wireless AP Service Provider: Select one from the drop-down menu, such as DynDNS, OrayDDNS or TZO. Domain Name: Enter the domain name (Such as host.dyndns.org). User Name/Email: Enter the user name or email the same as the registration name. Password/Key: Enter the password you set.

  • Page 19: Static Dhcp

    11N Mini Wireless AP IP Address: Enter the IP address of your AP (factory default: 192.168.10.254). Subnet Mask: An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. Default Gateway: Enter the gateway IP address. DHCP: Enable or Disable the DHCP server.

  • Page 20: Dhcp Client

    11N Mini Wireless AP IP Address: Enter the IP address which needs to be bound. MAC Address: Enter the MAC address of the computer you want to assign the above IP address. Comment: You can add some comment for this item. Click “Apply”...

  • Page 21: Site Survey

    11N Mini Wireless AP 4.4.1 Site Survey This page provides a tool to scan for wireless networks. If an Access Point or IBSS is found, you could choose to connect to it manually when client mode is enabled. 4.4.2 Basic This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point.

  • Page 22: Security

    11N Mini Wireless AP Disable Wireless LAN Interface: Check this box to to disable the AP’s wireless features; uncheck to enable it. Band: Select one mode from the following. The default is 2.4GHz (B+G+N) mode. Mode: Support AP, Client, WDS and AP+WDS mode. Network Type: This type is only valid in client mode.

  • Page 23: Access Control

    11N Mini Wireless AP Key length: WEP supports 64 Bits or 128 Bits security key. Key Format: User can enter key in ASCII or Hex format. Encryption Key: Enter the key, its format is limited by the Key format, ASCII or Hex. The following picture shows how to set WPA-PSK security, you can select WPA (TKIP), WPA2 (AES) and Mixed mode.

  • Page 24: Wds

    11N Mini Wireless AP 4.4.5 WDS Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, firstly you must set AP Mode to WDS or AP+WDS in basic setting, then enable WDS function and set another AP MAC which you want to communicate with.

  • Page 25: Schedule

    11N Mini Wireless AP Disable WPS: Check this box and clicking “Apply” will disable WPS function. WPS is turned on by default. WPS Status: When AP’s settings are factory default, it is set to open security and un-configured state, some registers such as Vista WCN can configure AP. Otherwise If it already shows “Configured”, it means that the AP has setup its security.

  • Page 26: Server Setup

    11N Mini Wireless AP Enable Wireless Schedule: Check this box will enable Wireless Schedule function. 4.5 Server Setup There are two submenus under the Server Setup menu: Port Forwarding, DMZ. Click any of them, and you will be able to configure the corresponding function. 4.5.1 Port Forwarding If you configure the AP as Virtual Server, remote users accessing services such as Web or FTP at your local site via public IP addresses can be automatically redirected to local...

  • Page 27: Security

    11N Mini Wireless AP Enable DMZ: Check this box will enable DMZ function. DMZ Host IP Address: To expose one PC to the Internet, select Enable DMZ and enter the computer's IP address in the DMZ Host IP Address field. 4.6 Security There are four submenus under the Security menu: Port Filtering, IP Filtering, URL Filtering, MAC Filtering.

  • Page 28: Ip Filtering

    11N Mini Wireless AP Comment: You can add some comment for this item. 4.6.2 IP Filtering The IP Filtering feature allows you to control Internet Access by specific users on your LAN based on their IP addresses. Enable IP Filtering: Check this box will enable IP Filtering function. Local IP Address: The Local IP address range that you want to filter.

  • Page 29: Mac Filtering

    11N Mini Wireless AP Enable URL Filtering: Check this box will enable URL Filtering function. URL Address: The URL Address that you want to filter. 4.6.4 MAC Filtering The MAC Filtering feature allows you to control access to the Internet by users on your local network based on their MAC address.

  • Page 30: System

    11N Mini Wireless AP 4.8 System There are six submenus under the System menu: Time Zone Setting, Upgrade Firmware, Save/Reload Settings, Password, Reboot, Language. Click any of them, and you will be able to configure the corresponding function. 4.8.1 Time Zone You can maintain the system time by synchronizing with a public time server over the Internet.

  • Page 31: Upgrade Firmware

    11N Mini Wireless AP Time Zone select: Select your local time zone from this pull down list. NTP Server: Select the NTP Server, then the AP will get the time form the NTP Server preferentially. 4.8.2 Upgrade Firmware You can upgrade latest Firmware in this page. Firmware Version: This displays the current firmware version.

  • Page 32: Reboot

    11N Mini Wireless AP 4.8.5 Reboot You can reboot device via clicking the Apply button. 4.8.6 Language You can select correspondent language. 4.9 Status There are three submenus under the Status menu: Status, Statistics, Log. Click anyone, you will see the following status. 4.9.1 Status The Status page provides the current status information about the AP.

  • Page 33: Statistics

    11N Mini Wireless AP 4.9.2 Statistics This page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks. Refresh: Click this button to refresh the data. 4.9.3 System Log The page shows the system log. Click the “Refresh” to update the log. Click “Clear” to...

  • Page 34: Logout

    11N Mini Wireless AP clear all shown information. Refresh: Click this button to update the log. Clear: Click this button to clear the current shown log. 4.10 Logout This page is used to logout.
  • Page 35 11N Mini Wireless AP FCC RF EXPOSURE INFORMATION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 36 11N Mini Wireless AP EU regulatory conformance The equipment named above is confirmed to comply with the requirements setout in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC) and R&TTE (1999/5/EC).
