Hydrolevel Company AcuTemp series Installation Instructions And Operating Manual

Temperature control

Advertisement

Quick Links

Temperature
Control
NOTICE - Read these instructions completely before proceeding
with the installation. Retain these instructions for future reference.
WARNING
electrical shock, death, or equipment damage, discon-
nect power supply before installing or servicing control.
RATINGS
Input
24 VAC, 60 Hz
Power
2.4 VA
Output
Dry contacts, 50 VA
@ 24 VAC, 60 Hz
Ambient temp
30°F - 140°F

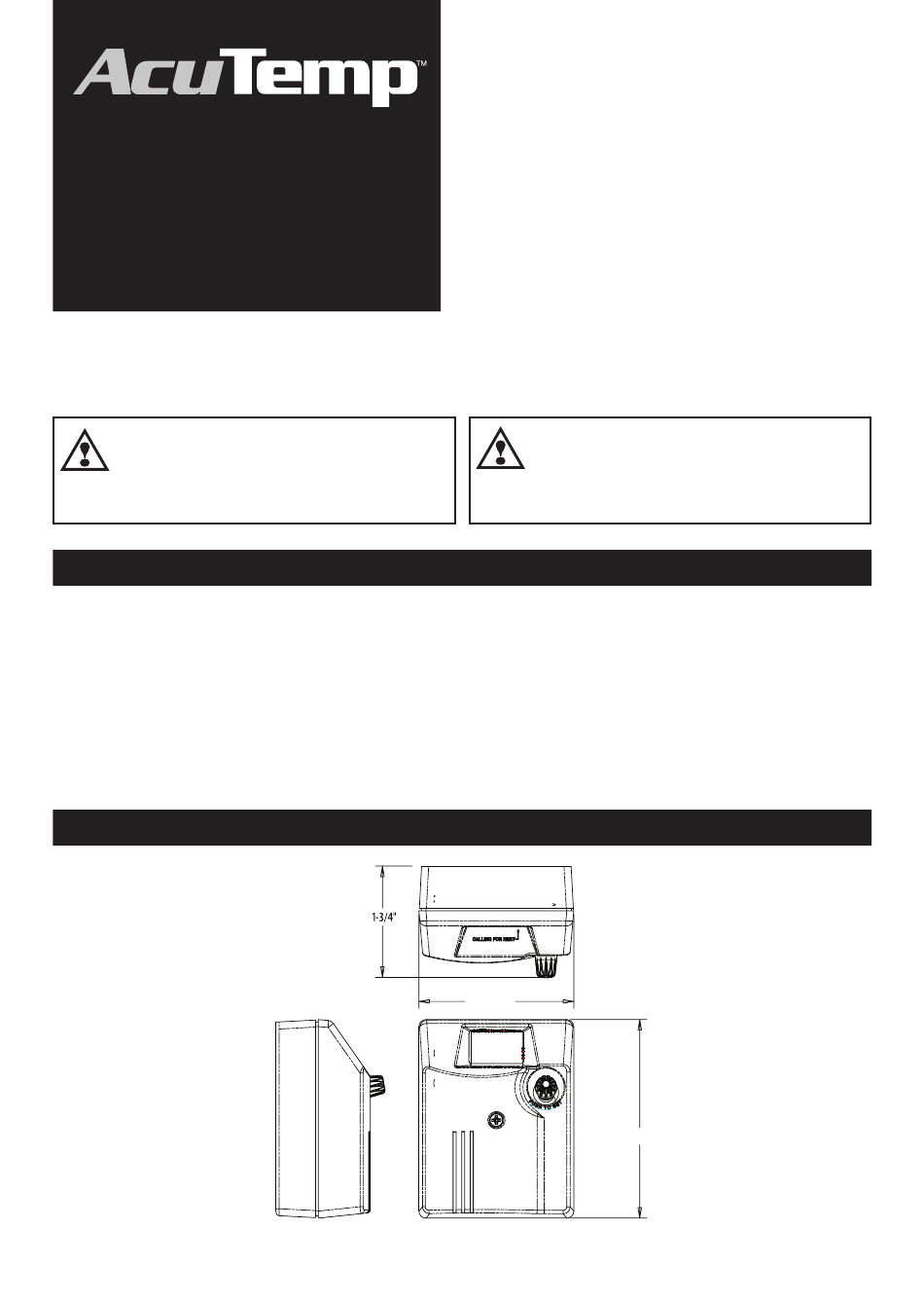

DIMENSIONS

Installation Instructions

and Operating Manual
The AcuTemp utilizes a microcontroller-based
design to control water temperature. An advanced
software algorithm closely monitors the rate of
tank temperature changes and controls the heating
source to minimize fluctuations in tank temperature
while optimizing fuel efficiency. The control features
adjustable temperature settings for both residential
and commercial temperature operating ranges.
Electrical shock
hazard. To prevent
qualified and licensed professional in accordance with
all applicable codes and ordinances.
Operating temp (user selected)
Model 2000 (Residential Setting): 60°F - 160°F default
Model 2000 (Commercial Setting): 60°F - 180°F
Other Models: 60°F to the number specified in the suffix of the
model number. (ex Model 2000-135 has an operating temp
range of 60°F - 135°F)
Differential
2-3/4"
1
WARNING
Automatically controlled 5°F - 10°F
3-17/32"
All work must be
performed by a

Advertisement

loading
Need help?

Need help?

Do you have a question about the AcuTemp series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hydrolevel Company AcuTemp series

  • Page 1: Installation Instructions

    Installation Instructions and Operating Manual Temperature The AcuTemp utilizes a microcontroller-based design to control water temperature. An advanced software algorithm closely monitors the rate of Control tank temperature changes and controls the heating source to minimize fluctuations in tank temperature while optimizing fuel efficiency.
  • Page 2 INSTALLING THE CONTROL Locate the immersion well in the tank that is Hold the AcuTemp control onto the well and designed for the temperature control. tighten the screw at the base of the control. Sensor and Well (remote mounted control) 1.
  • Page 3 WIRING THE CONTROL REFER TO “WIRING THE CONTROL” BELOW OR YOUR TANK MANUAL FOR WIRING INSTRUCTIONS. Connect the 24 VAC power source to the Connect the “Output Contacts” to the zone or “24 VAC Input” terminals (24 VAC transformer boiler control’s domestic water input. field supplied).
  • Page 4: Error Codes

    SETTING THE CONTROL Push the setting dial to enter the Temperature Setting mode. When pressed, the display will show ‘OFF’ or the current temperature setting. Turn the dial to select the desired water temperature to be maintained in the water heater. See Commercial/Residential (below) for available temperature ranges.
