Summary of Contents for Otson OTS-3000

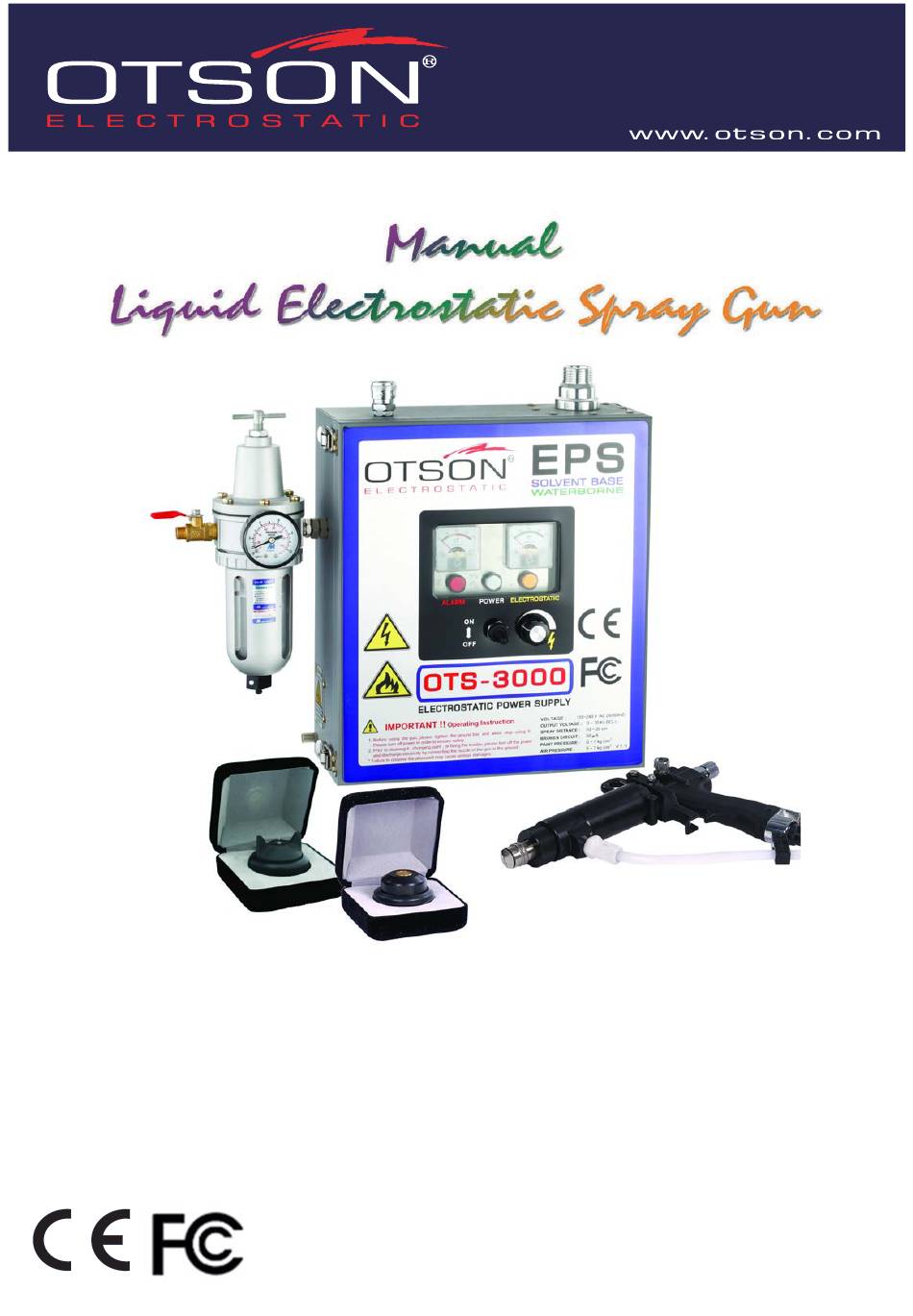

- Page 1 User Manual V 7.8 Model : O T S-3 0 0 0 Solvent-base Stardand Package Waterborne Professional Package Golden Package...
-
Page 2: Table Of Contents
CONTENTS MAINTENANCE SCHEDULE Page 3 ~ 4 INTRODUCTION Page 5 ~ 7 OVERVIEW..................P .5 FEATURES.……………………………………………….………....P .6 SPECIFICATIONS……………………………………….….…..……P .7 SAFETY MANAGEMENT Page 8 ~ 10 INSTALLATION Page 11 ~ 20 Installation of Round ( TIN ) Nozzle..........P .12-13 Installation of Round ( FRP ) Nozzle...........P .14~15 Installation of Flat ( FRP ) Nozzle.......... -
Page 3: Maintenance Schedule
Maintenance Daily Schedule Be sure to comply with the SAFETY MANAGEMENT stated on the P3- 5 of USER MANUAL in advance. ALL PERSONS IN THE SPRAY AREA MUST BE GROUNDED AT ALL TIMES !! This may be accomplished safely by the use of conductive soled shoes, disposable conductive boots. - Page 4 6. To aid in the removal of dried paint during clean-up, apply a light coat of petroleum jelly to the exterior surface of the gun. Thank you for the opportunity given to OTSON and trust that OTSON shall be your good partner !! For further technical supports:...
-
Page 5: Introduction
Air Powered Ground Double Diaphragm Pump OTS-3000 Manual Liquid Electrostatic Spray System OTS - 3000 Manual Liquid Electrostatic Spray Gun contains the required standard equipment such as an air regulating valve , electrostatic power supply , electrostatic spray gun and Round ( TIN ) nozzle , one set each ( Round ( FRP ) and Flat ( FRP ) nozzle are available for the customer’s option). -
Page 6: Features
OTS-3000 User Manual - Introduction FEATURES 1. The spray gun weighs 470g only, which is the lightest electrostatic model in the world. 2. With the ergonomic design, it is compact, easy to handle and smooth for operation without feeling fatigue during lengthy spraying. -
Page 7: Specifications
OTS-3000 User Manual - Introduction SPECIFICATIONS S pe cif ic at ion Liquid Electrostatic Spray Gun Input Voltage 0~70KV DC(-) Gun Length 225 mm Gun Weight 470 g *(no nozzle , hv cable ,spraying tube and air tube ) Fluid and Air Pressure 0 ~ 7 kg/cm (6.86 bar) (0~100) psi... -
Page 8: Safety Management
OTS-3000 User Manual – Safety Management SAFETY MANAGEMENT o improve the operational safety and ensure the over time use of the manual liquid electrostatic spray gun, be sure to comply with the following requirements: 1. The liquid electrostatic power supply must be properly... - Page 9 OTS-3000 User Manual – Safety Management 1. Wear leather bottom shoes or liquid electrostatic shoes during spraying: The air around the spraying room is exposed to the ionization of high voltage current. When wearing shoes with rubber or synthetic resin bottoms, the body will be inducted and exposed to electric shock upon contacting the grounded rinsing cabinet or other objects.
-
Page 10: Assembly....................................................................p
OTS-3000 User Manual – Safety Management 1. Do not drop and drag the HV cables , flexible tube and electrostatic spray gun on the ground. If the gun is drop on the ground, it will affect your transference efficient when you are coating, otherwise, the gun will be damage. -
Page 11: Installation
OTS-3000 User Manual - Installation INSTALLATION OTS - 3000-GTFL Golden Package Item Description Q'ty ( Set ) OTS-3000-GTFL OTS - 3000 Golden Package Including Manual Electrostatic Spray Gun Electrostatic Power Supply Round (Tin) Nozzle Round (FRP) Nozzle FLAT (FRP) Nozzle High Voltage Cable ( 5.0 m ) -
Page 12: Installation Of Round ( Tin ) Nozzle
OTS-3000 User Manual - Installation Installation of Round ( TIN ) P 12... - Page 13 P 13...
-
Page 14: Installation Of Round ( Frp ) Nozzle
OTS-3000 User Manual - Installation Installation of Round ( FRP ) Nozzle The Spray Direction of High Atomized Nozzle P 14... - Page 15 P 15...
-
Page 16: Installation Of Flat ( Frp ) Nozzle - (1
OTS-3000 User Manual - Installation Installation of Flat ( FRP ) Nozzle - (1) Note : Using 6PT metric Hand Socket Note : Air Flow Regulating Knob 12 mm to open Hammer Front Seat ( Flat nozzle only). Hammer Front Seat... - Page 17 OTS-3000 User Manual - Installation Installation of Flat ( FRP ) Nozzle - (2) Note : Make sure no gap between metal Note : Using 6PT metric Hand Socket and plastic. 8 mm to close head of Flat Nozzle. (Using 6PT metric Hand Socket 8 mm )
- Page 18 OTS-3000 User Manual - Installation Installation of Flat ( FRP ) Nozzle - (3) How to disassemble Flat nozzle ? Note : Using 6PT metric Hand Socket mm to open metal head of flat nozzle P 18...
- Page 19 Important Notice : How to change Flat nozzle to Round (TIN and FRP ) nozzles on electrostatic spray gun? Hammer Front Seat After these steps ,please see page 12-13 , these pages include how to install round (TIN) and (FRP) nozzles. Note : Using 6PT metric Hand Socket 12 mm...
- Page 20 P 20...
- Page 21 OTS-3000 User Manual – Installation ELECTROSTATIC POWER SUPPLY A. Air Inlet B. Air Ball Valve Air Regulating Valve H.V Generator Air Outlet H.V Cable Socket P 21...
- Page 22 OTS-3000 User Manual – Installation LIQUID ELECTROSTATIC SPRAY GUN Tin Nozzle Handle FRP Nut Base Gun Barrel Unit Trigger Hook Unit Air Tube Air Flow Regulating Knob HV Cable S. Teflon Spraying Tube Paint Regulating Knob P 22...
- Page 23 OTS-3000 User Manual – Installation ASSEMBLY glass Insert glass Electrostatic Power Supply Check 110 / 240 AC Voltage Switch Inside Electrostatic Power Supply P 23...
- Page 24 OTS-3000 User Manual – Installation ASSEMBLY Air Inlet Connected with the air source. Power Cord Socket Connected with the power source. Air Outlet Connected with the air tube. HV Cable Socket Connected with the HV Cable. Earthing Wire Connected with the earthing wire.
-
Page 25: Operation And Adjustment
OTS-3000 User Manual – Operation and Adjustment OPERATION AND ADJUSTMENT PRE-SPRAY INSPECTION Spray Booth Conveyor AC 110 ~ 240 v AC 110 ~ 240 v Small Particle Atomization Electrostatic Power Supply Spray Gun Earthing Cable Paints Supply Line Object Paint Tank... - Page 26 OTS-3000 User Manual – Operation and Adjustment Paint Used: Except for some part, the paint used by the liquid electrostatic spray gun is mostly synthetic resin based paint for obtaining better liquid electrostatic enclosing effect. So there’s no need to specially condition the paint. However the solvent must be adjusted according to the conductivity level of the paint.
- Page 27 OTS-3000 User Manual – Operation and Adjustment Ground You have to use Copper Ground touch paint tank when want change waterborne coatings or tounch paint tank and air pump.it will prevent that you are not injure by electric shock. Copper Ground Rod...
-
Page 28: Process Of Operation
OTS-3000 User Manual – Operation and Adjustment PROCESS OF OPERATION 1. Assemble and install the liquid electrostatic spray gun and the conveying pump: Complete the aforesaid installation and pre-spraying inspection. 2. Pour the paint into the bucket: Confirm the viscosity of paint (9 ~ 30 sec. Iwata #2 cup or viscosity meter ) and conductivity (20 ~ 30 mega ohms), and then pour the paint into the bucket and stir well with the pneumatic agitator. - Page 29 OTS-3000 User Manual – Operation and Adjustment 7. Start the spraying process: Pull the trigger. Adjust the paint regulating knob behind the spray gun to confirm proper paint flow is achieved. Pull the trigger. Adjust the regulating ring of tin nozzle located at the front end of the spray gun to confirm the proper scale of spray scope is achieved. Pull the trigger. Adjust the air flow regulating knob on the left side of spray gun to confirm proper atomization is achieved.
-
Page 30: Troubleshooting Guide
OTS-3000 User Manual – Troubleshooting Guide TROUBLESHOOTING GUIDE 1. POOR PARTICLE OF SPRAY Cause Solution 1. The pressure of atomized air is too low. 1. Increase the pressure of atomized air. 2. Reduce the sprayed quantity of paint. 2. The sprayed quantity of paint is too much. -
Page 31: Faq
1. Paints and Coatings Type Ans: Nearly all solvent-borne and waterborne coatings can be applied by OTS-3000. A coating’s impedance should be between 20M ohm to 30 M ohm obtain an appropriate charge. Changes can be made to make a coating more conductive, including solvent additions, changes in solvent composition, and use of polar solvents. - Page 32 It is same equipment , this function is one of our best advantage .if you have our OTS-3000 ,you can use solvent and waterbase paints with no limited. In addition , you just need to pay one equipment fee only.
- Page 33 In the plastic product it is applied a conductive primer, but it is black (dark grey) due to the metallic loads.Then you can coating your plastic products by OTS-3000 Please ask your plastic material provide information of conductive primer for you .
-
Page 34: Limited Warranty
The warranties provided by OTSON Technologies Corp in this Statement of Limited Warranty apply only to Machines you purchase for your use one year, and not for resale, from OTSON Technologies Corp or your reseller. The term “ Machine” means a OTSON Technologies Corp MANUAL LIQUID ELECTROSTATIC SPRAY GUN, its features, conversions, upgrades, elements, or accessories, or any combination of them. - Page 35 NOTE : P 35...
- Page 36 Teflon Spraying Tube ( 11.0 m ) Supply Nozzle Nozzle Nozzle PU Air Tube ( 5.0 m ) PU Air Tube ( 6.5 m ) PU Air Tube ( 10.0 m ) Tool BOX OTS-3000-SF OTS-3000-SF OTS-3000-SF-A OTS-3000-SF-B OTS-3000-SF-B OTS-3000-ST OTS-3000-ST-A OTS-3000-ST-A OTS-3000-ST-B...
- Page 37 Taipei County 242, Taiwan (R.O.C.) http://www.otson.com e-mail:sales@otson.com Tel : 886+2+2659-7162 Fax: 886+2+2656-0287 *The appearance of all products, detail, figure and specification are subject to change at any time without notice. Copyright @2012 OTSON is a registered trademark of OTSON Technologies Corp. All other names and brands may be claimed as the properly of others. Print in Taiwan P 38...
