AlarmSaf PSC-12100-B04-CE Installation Instructions

Power Support System

Installation Instructions

I. Model Numbers
Item System
Number Model Number Voltage
01712 PSC-12100-B04-CE 12VDC
01715 PSC-24100-B04-CE 24VDC
II. Installation Instructions
1. Mount cabinet per mechanical dimensions and knockout locations given in Section III.
2. Connect 240VAC, 50Hz., single phase to the black and white leads of the transformer in
accordance with local codes.
3. Low Volt AC Input - Connected to secondary winding of the transformer.
v Fused at 15 Amps (Fuse Type AGC-15)
4. Verify output voltage at "DC Output" and "Battery" terminals.
12V system measures approximately 13.8VDC.
24V system measures approximately 27.6VDC.
5. Connect battery set to "Battery" terminals.
CAUTION: Observe polarity; incorrect polarity will destroy battery fuse.
Fused at 15 Amps (Fuse Type AGC-15).
Recommended battery type - Power Sonic (PS Series) or YUASA (NP Series) lead acid/gel cell.
WARNING: For continued protection against fire hazard,
replace only with the same type and rating of fuse.
6. Connect "System DC" to input of user system.
CAUTION: Observe polarity; incorrect polarity may damage user system.
Maximum "System DC" current draw equals maximum charge current. Refer to Section I for
Maximum Allowable System Current.
7. Battery Standby Characteristics:
24 Hour Standby with 100Ah Battery = 3.53A
60 Hour Standby with 100Ah Battery = 1.41A
8. Visual Indicators:
AC Presence LED1:
System OK LED2:
9. Connect "Fault Output" to system fault annunciation.
Form "C" Relay Contacts rated at 1 Amp @ 24VDC Resistive.
Relay Contacts labeled in the non-operational (fault) condition.
Fail-safe; active until an actual fault condition.
10. Fault Conditions: Low AC / No AC / Blown AC Fuse / High or Low Battery / Blown Battery Fuse
CAUTION: Fault condition reporting may be delayed dependent on power supply loading.
The battery set is NOT supervised for presence.
11. Power Support System Draw (No AC, No load) is 50mA.
AlarmSaf
65A Industrial Way Wilmington, MA USA 01887-3499 (978) 658-6717 FAX: (978) 658-8638 Web Site: www.alarmsaf.com
Maximum Maximum Maximum
Charge Battery AC Input XFMR
Current Capacity Current Voltage
10A 100Ah 1.25A 17.5VAC
10A 100Ah 2.5A 28.2VAC
Green LED
Green LED

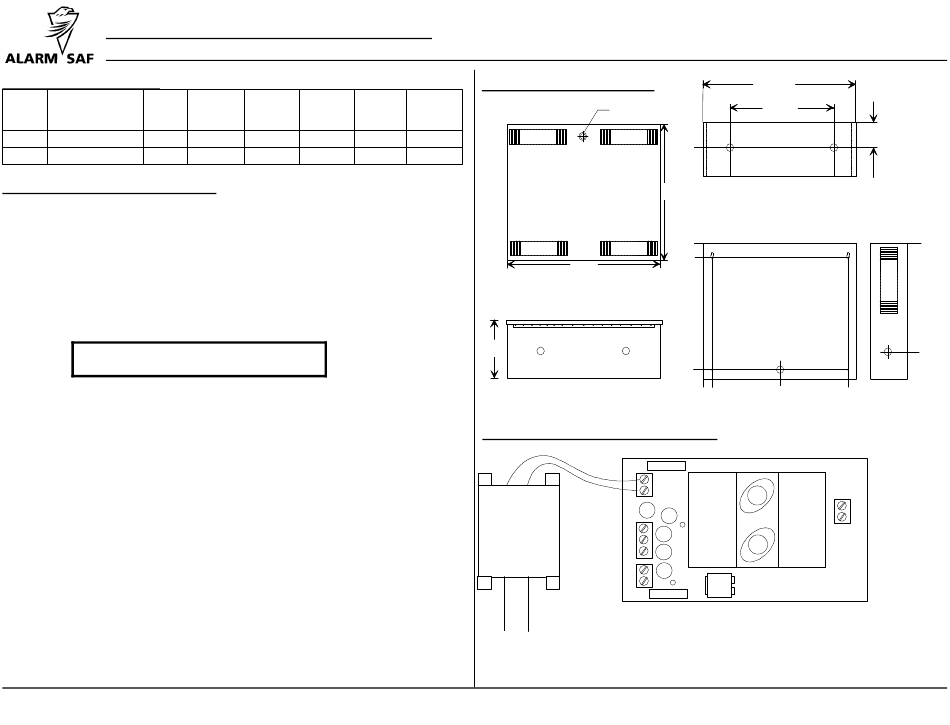

III. Mechanical Drawings
All dimensions are in centimeters
Battery
Storage in
Cabinet
34Ah Max
17Ah Max
46.2
11.0
IV. Typical Hook-up Diagrams
STEP-DOWN
TRANSFORMER
CONTACTS
PRIMARY LEADS
BLACK WHITE BATTERY
CONNECTION
PRIMARY AC
CONNECT
45.7
7.62
KEY LOCK
2 PLCS
38.6
0
3.81
35.4
0 2.54
AC FUSE AGC-15
NO
AC ON
LED
TROUBLE
NC
C
+
-
SYS OK
LED
BATT FUSE AGC-15
30.5
2 PLCS
4.93 TYP
0
30.5
2 PLCS
22.9
43.2
SYSTEM DC OUTPUT
+
NONPOWER
-
LIMITED
VERSION SHOWN
52-009L
032697
