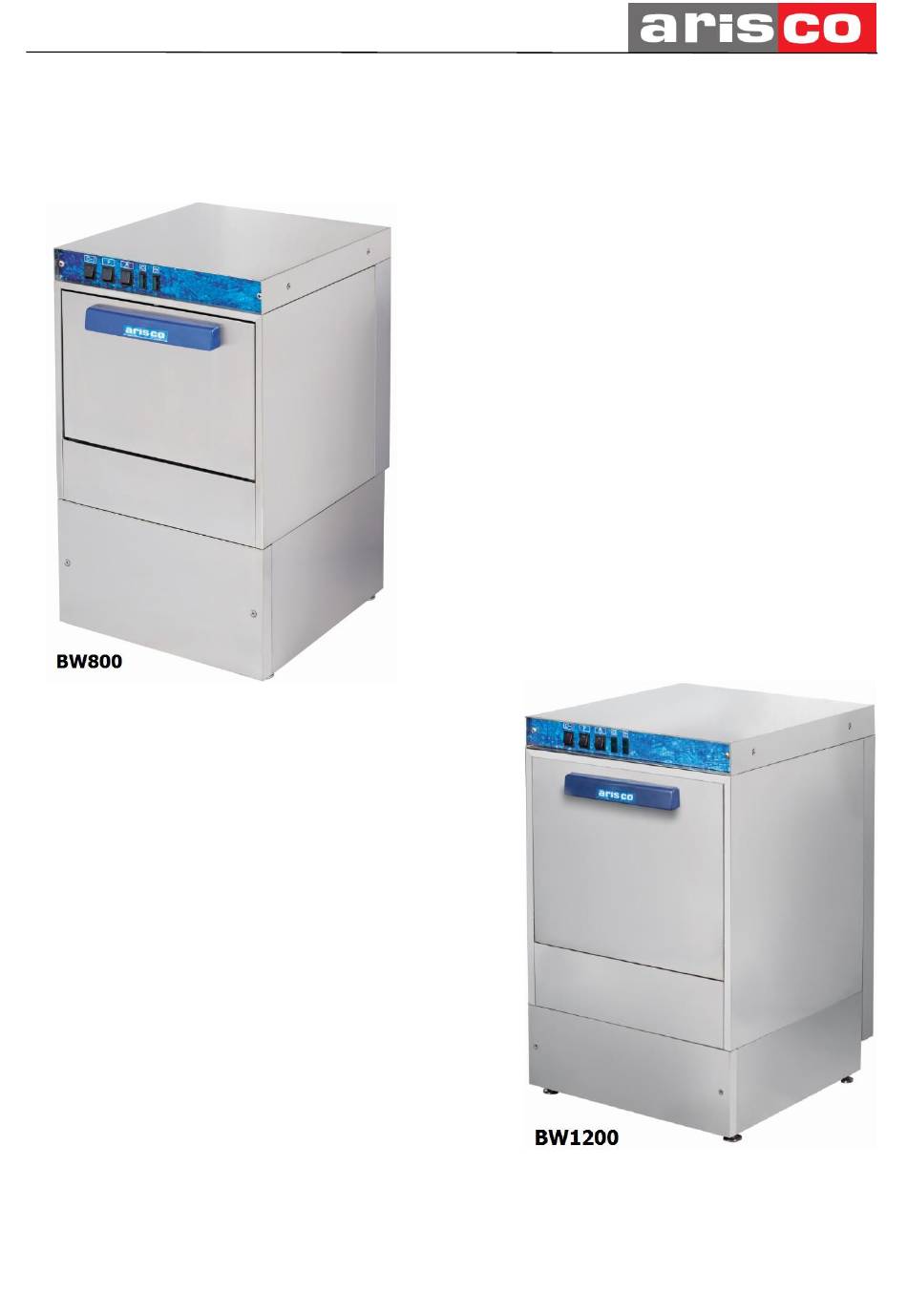

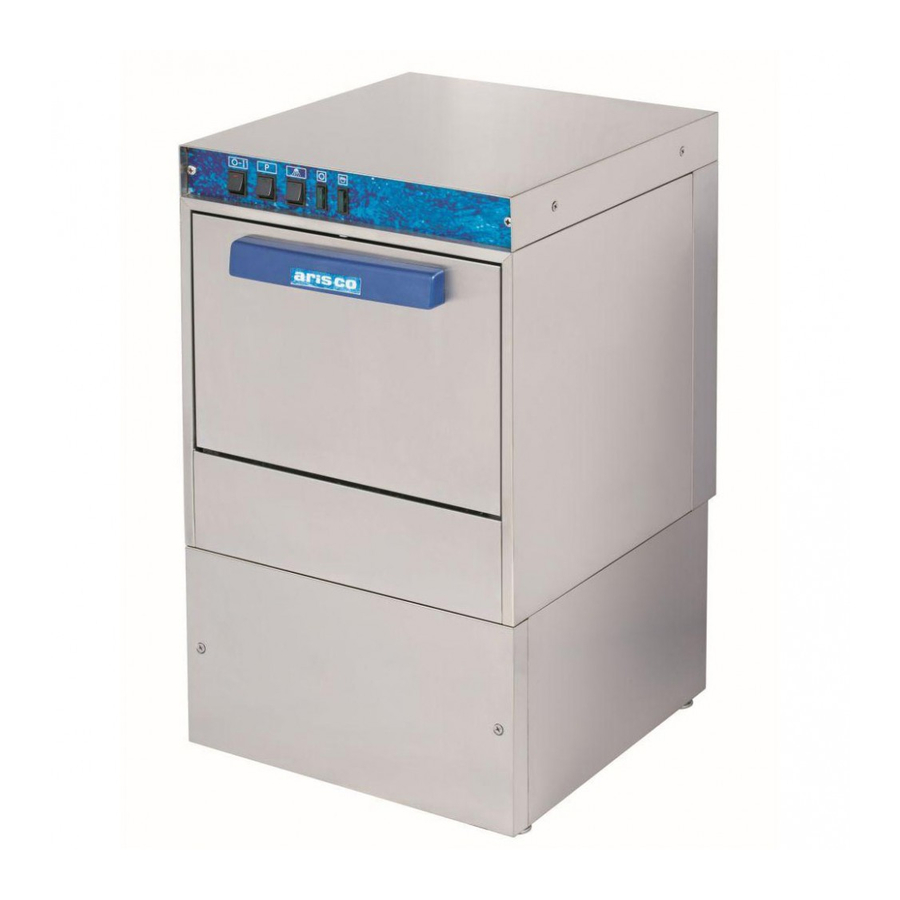

- Page 1 GLASS WASHING MACHINE INSTRUCTION MANUAL...
- Page 2 2 / 19...
- Page 3 LVD: EN 60335-1: 2012/A11:2014 Y EN LAS SIGUENTES NORMAS. EN 60335-2-5:2015 E DALLE SEGUENTI NORME. ÜRÜN/PRODUCT/PRODUKT/PRODUIT/PRODUCTO/PRODOTTO: BULAŞIK MAKİNESİ/DISHWASHER/GESCHIRRSPÜLER/ LAVE-VAISSELLE/LAVAVAJILLAS/ LAVASTOVIGLIE MODEL/MODEL/MODELL/MODÈLE/MODELO/MODELLO: BW800, BW1200 MARKA/BRAND/MARKE/MARQUE/MARCA/MARCA : ÜRETİCİ/MANUFACTURER/HERSTELLER/FABRICANT/FABRICANTE/PRODUTTORE: ÇÖZÜM MUTFAK SANAYİ VE TİCARET A.Ş. 10015 SOKAK NO:13 AOSB IZMIR-TÜRKİYE DATE OF EMISSION DÜZENLENME TARİH...
-
Page 4: Table Of Contents
CONTENTS AIMS AND SCOPE RESPONSIBILITIES SIGNS TECHNICAL DATA (BASIC FEATURES) TRANSPORTATION AND INSTALLATION GENERAL PRINCIPLES INFORMATIONS AND EQUIPMENTS RELATED TO PRODUCT DESCRIPTION OF DEVICE WITH EXPLANATIONS REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING PREPARATION FOR START UP FINAL CHECK BEFORE START UP START UP ELECTRICAL DIAGRAM... -
Page 5: Aims And Scope
AIMS AND SCOPE Descriptions for safe use and maintenance of the product RESPONSIBILITIES Responsibilities of Product’s Owner: The product’s owner is responsible for applying of safety rules stated in this Instruction Manual or getting them applied by delegating his authorities and risks, which may arise due to not applying. The product’s owner is also responsible for the periodical maintenance of the machine. -
Page 6: Technical Data (Basic Features)
4. TECHNICAL DATA 6 / 19... - Page 7 MODEL BW800 BW1200 CAPACITY GLASS 60’ 1200 BASKET GLASS-CUP BASKET 37X37 ELECTRIC VOLTAGE 220-230 AC V, 3~ N , 50Hz 220-230 AC V, 3~ N , 50Hz WASHING TANK HEATER 1800 1800 RINSING WATER HEATER 2500 2500 MAXIMUM POWER 2700...
-
Page 8: Transportation And Installation
5. TRANSPORTATION AND INSTALLATION During transportation, take necessary precautions against the risk of falling down and being turned upside down for the product. Place the product onto a flat and solid ground. Do not install the product near the flammable and explosive materials and do not keep any flammable and explosive material near the furnace, while it is working. -
Page 9: Description Of Device With Explanations
Manufacturer firm is not responsible for the printing errors, which take place in the instruction manual and device description catalogue, coming together with the device. Manufacturer has the right to make all changes, which he/she deems to be useful for user or him/her. However, he/she guarantees that the features related to primary functionality and safety of the device will be maintained. -
Page 10: Replacing The Device And Preparing For Start Up
9. REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING A-WATER İNLET B-WATER OUTLET C-POWER CABLE PREPARATION FOR START UP Open the packing of the device and remove all protective tapes. Opening the cover of the device, take out the instruction manual. Place the devices with adjustable legs by adjusting their legs and the device with fixed legs by aligning the ground. -
Page 11: Final Check Before Start Up
FINAL CHECK BEFORE START UP The users should fulfill the following last-controls by accepting the required couplings of fresh water, electric, wastewater , installations to be carried out by the authorized technicians; You must be sure that the power supply and grounding installation are ensured as required in leaflets of electrical equipment. -
Page 12: Electrical Diagram
CONTROL PANEL Full automatic washing cycle at 55 C with a choice of three different programs from 1 to 2 minutes. A- MAIN SWITCH (0-1) B- CYCLE START PUSH BUTTON C- MANUAL RINSE PUSH BUTTON D- WATER TEMPARATURE INDICATORY LAMP E- WASH CYCLE INDICATORY LAMP 11. -
Page 13: Maintenance And Cleaning
12. MAINTANCE AND CLEANING Implement the following periodical maintenance so that the product should work in safe and long life DAILY MAINTANCE When the water in washing tank gets dirty, it must be replaced by fresh water. For this purpose, bring the “0-1” switch of the machine into “0”... -
Page 14: Safe Life
Fix all parts in their place in such a way conforming to their original conditions. Close the cover of the device. Open the relevant switch on the control panel supplying electric to the device. Bring the “STAND BY and “START” switchs into starting position. - Page 15 • Take out the overflow pipe and empty the tank completely. • If this is not a solution for the problem, change the level switch. • Opening and closing the stand by switch, check the solenoid valve. If it does not work, change it by new one. •...
-
Page 16: Spare Parts List
15. SPARE PARTS LIST DESCRIPTION DESCRIPTION DESCRIPTION Door Signal Lamp Fascia Handle On/Off Switch Plastics Foot On/Off Switch Rubber Shaft & Shaft Bearing Timer M48 Door Stop Lock Contactor Heating Element Switch Pressure Switch Pressure Switch Cable Switch Connector 16 / 19... - Page 17 DESCRIPTION DESCRIPTION DESCRIPTION Wash Pump Nozzle Heating Element Boiler Shaft Rinseaid Dispenser Suction Filter Pin Flange Boiler Amplifier Suction Filter Solenoid Valve Shaft Suction Filter Bottom Rinse Arm Bearing Nozzle Gasket Drainer Body Drain Pipe Plug Body Thermostat Pressure Pot Limiter Terminal Hose...
- Page 18 INFORMATIONS ABOUT THE FIRM COZUM KITCHEN IND. & TRADE CO. Head Office-Factory 10015 Sokak No.13 A.O.S.B. Izmir - TURKEY Tel: 00 90 (232) 376 72 76 Fax: 00 90 (232) 376 72 78 e-mail: fabrika@cozummutfak.com Export Department-Showroom-Sales Center Kısıklı Caddesi Haluk Türksoy Sokak No.21/1 Altunizade-Istanbul-TURKEY Tel: 00 90 (216) 474 89 10 pbx Fax:00 90 (216) 474 89 13 e-mail: info@cozummutfak.com...
