WIFI Bike & Motor Cam

(Motor Accessory)

User's Manual

B52Q Series

- 1 -

Table of Contents

Need help?

Do you have a question about the B52Q Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PX B52Q Series

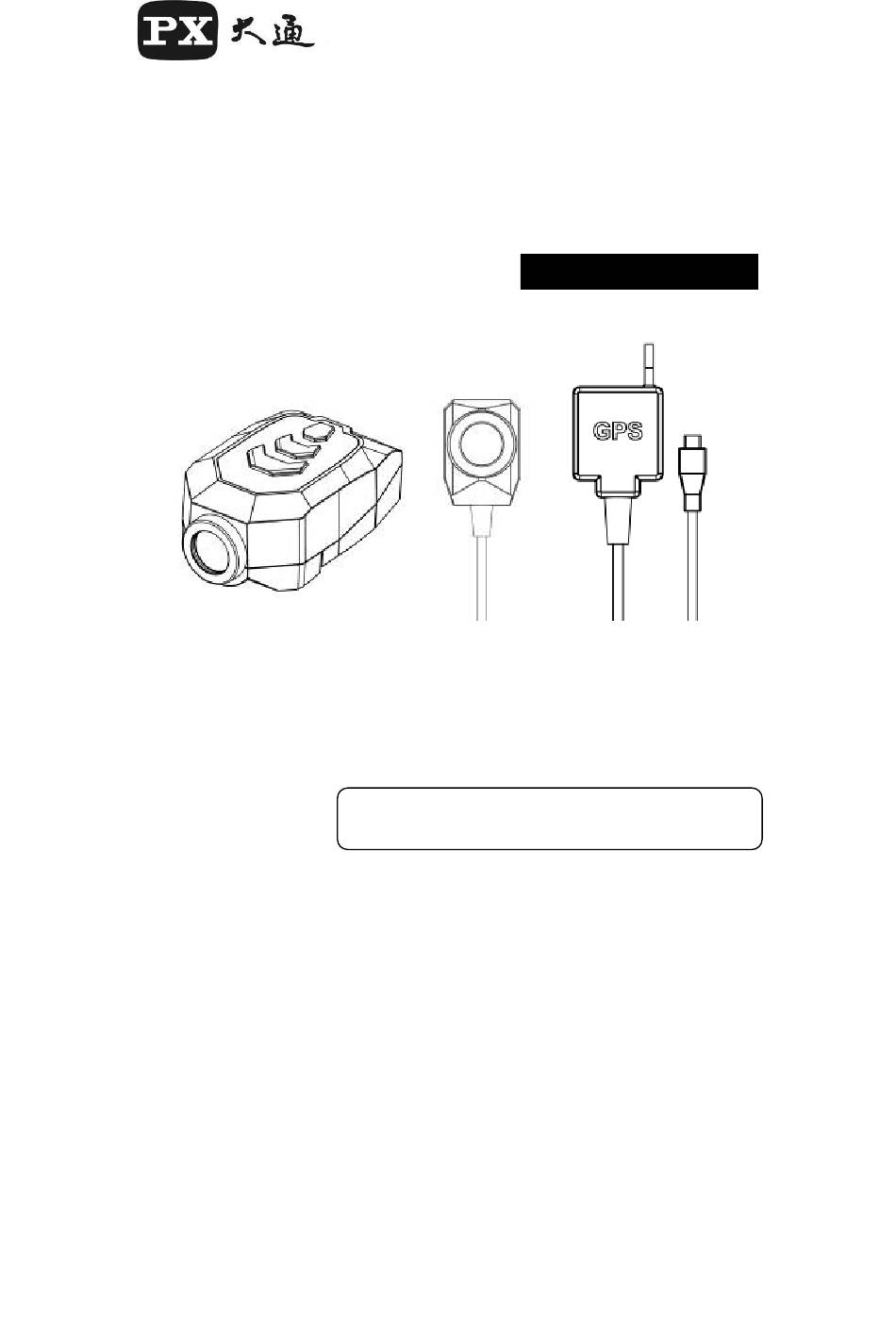

Page 1 WIFI Bike & Motor Cam (Motor Accessory) User’s Manual B52Q Series - 1 -...
Page 2: Table Of Contents
Table of Contents 1. Precautions before Use 2. Introduction 3. Features 4. Package Content 5. Notice for First time use 6. Installation 7. Product Appearance 8. Quick APP Installation Guide 9. APP UI Description 10. Trouble Shooting 11. Specification 12. Series Difference 13.
Page 3: Precautions Before Use
Precautions before Use  Recording Mode (1) Once the system is powered on, it will enter loop recording mode. (The recording LED is flashing). (2) To exit the loop recording mode, please stop recording first  Press [Loop] key  Press Start Recording. Now, it’s normal recording.
Page 4  Definition of Recording Space (1) SD card space used by current recording mode. Normal recording will force deleting loop recording space when the space is not enough for its operation. When this happened, system will display warning LED and sound for the insufficient memory space.
Page 5: Introduction
normal recording. Introduction B62G is a Camera specialized for Bike & Motor. It equips with water proof ability, anti-shake and share functions using WiFi. Features  Anti-Shake(EIS + Stable Construction) Water Proof Mechanical (IPX5)   One hot key to back up file to system and smartphone. ...
Page 6: Package Content
Package Content < Main unit > Main unit Handle Bar Holder Quick Release Lock Base & Adjusting arm screw Adhesive Mount Universal Mount User Manual Charging Cable - 6 -...
Page 7 < Rear Cam > Rear Cam 3M Extension cable Adjusting arm Adhesive Mount Universal Mount < B-GPS > B-GPS - 7 -...
Page 8: Notice For First Time Use
Notice For First-Time Use (1) Please read this manual before using the system. Make sure the content of the package is complete. If there is anything missing or damaged, please contact the original dealer right away. (2) Please use SD card with Class 10 8GB or above. (The system can support up to 32GB) (3) This product does not guarantee to be compatible with all brands of SD card.
Page 9: Installation
Installation <main unit > Insert Memory Card. * Ensure SD Card is inserted in correct direction * Use only microSD SDHC C10 or higher level * 8G or higher capacity SD Card recommended Install Quick Release Lock Base - 9 -...
Page 10 Install Handle Bar Holder 360 Rotatable Holder mount - 10 -...
Page 11 Install Adhesive Mount Install Universal Mount - 11 -...
Page 12 < Rear Cam > Blue LED lights up Install Handle Bar Holder - 12 -...
Page 13 Install Adhesive Mount Install Universal Mount - 13 -...
Page 14 Install Universal Mount & Adjusting arm - 14 -...
Page 15 < B-GPS > Installation diagram Installation position GPS LED flashing When Positioning Successfully - 15 -...
Page 16 Bicycle tube holder Handle Bar Extended interface Hand screw Host & Quick release base GPS Receiver Handle Bar Holder GPS Plug - 16 -...
Page 17 Motor side mirror holder Side mirror Extended interface Hand Screw Host & Quick release base GPS Receiver Side mirror holder GPS Plug - 17 -...
Page 18 Motor adhesive holder Flat place Extended interface Hand Screw Host & Quick release base GPS Receiver Side mirror holder GPS Plug - 18 -...
Page 19 Motor Universal mount Extended interface Hand Screw Host & Quick release base GPS Receiver GPS Plug Universal mount - 19 -...
Page 20 Computer program Interface Computer program name：GVPlayer Program download area： 1) Trans website download area(http://www.px.com.tw/file/B52%20video.rar) 2) https://drive.google.com/open?id=0B7GBHEgWCJt0SDR0Ty01 U2J0S1U Video Play Tracker Files List Files Group List Instructions： To provide the use of the GPS function recorder. When using this function, the computer must be connected to the Internet.
Page 21 When there is GPS information in the image file, there will be a map of the image file on the trajectory. Green line represents the whole trajectory. Purple line represents the trajectory of the play. Open and close the map window interface Users can retrieve their coordinates in Google Earth, Google Loop play When the image file is finished...
Page 22 Fast Wave Screenshot Stop Select the map system Select Language (English / Simplified Chinese / Traditional Chinese / German / Italian / Latvian / Polish / Romanian / Slovak / Ukrainian / French / Korean / Japanese / Spanish / Russian / Portuguese) - 22 -...
Page 23: Product Appearance
Product Appearance < Main Unit > A：Power / Record Power ON/OFF：Press 2 seconds Record ON/OFF：Press to start / stop B：Shutter Push for photo shot Long press 2 sec. to backup 2 files (before/current) C：WIFI On/Off or WIFI ON/OFF：Press 2 seconds Loop Recording Loop Recording ON/OFF：Push to start / stop Formatting SD card: Long press for 8 sec.
Page 24 1: Power LED Power On: Blue LED ON. Power Off: Blue LED Off 2: Charging LED Low Power: Red LED ON. Charging: Blue LED flashes. Fully Charged: Blue LED Off 3: Record LED Recording: Blue LED ON Loop Recording: Blue LED flashing Record Off: Blue LED Off 4: Alarm LED No Memory Card inserted: Blue LED ON...
Page 25 < Main Unit (IO) > Open the water proof cover to find： (1)SD Card Slot & (2) RESET KEY Rear Cam port：Connect to Rear Cam Power input: * DC5V / 1A power supply * Micro USB (Female) port 1/4” Screw Hole (connect to Sport Cam or tripod) Quick Release Speaker - 25 -...
Page 26 < Rear Cam (IO) > Connect to mounting accessories Connect Camcorder - 26 -...
Page 27: Quick App Installation Guide
Quick APP Installation Guide * Download “GoRiding” APP from: * Play Store for Android System * Apple Store for iOS System Step 1. Ensure Front Cam WiFi function is enabled. * If the WiFi LED indicator is not ON, means WiFi is not enabled, please push “WiFi”...
Page 28 *Open WiFi of your Smartphone * For first WiFi connection, select device name "GoRiding" * Default Password: 1234567890 (10 digits number) Step 3. Open the APP, tap “CONNECT TO YOUR CAMERA” icon to enter setting page. 1. Tap “CONNECT TO YOUR CAMERA”...
Page 29 2. We will lead you to Wi-Fi Setting, if you didn’t connect camera’s Wi-Fi. 3. Select the device you want to connect to and tap “Connect” to complete the connection. * A tutorial window will guide you for first connection, please follow the guide to set up.
Page 30: App Ui Description
When name/password is confirmed to change, system will initialize. APP UI Description < Main Page > Options Connected Devices List LIVE VIEW MY MEDIA VIDEO REVIEW - 30 -...
Page 31 MOMENTS Notes： 1. Enter “CONNECT TO YOUR CAMERA”，select Device. < Options> HOME MY MEDIA - 31 -...
Page 32 < Connected Device List > - Left Windows：Select Device name (GoRiding-xxxxxx). - Rightwindows：Select Done. SETTINGS - 32 -...
Page 33 < SETTINGS > SSID change Password change Format SD Card Firmware Version Notice: If you change SSID/Password after WiFi Settings, - 33 -...
Page 34 It is required to redo the WiFi Settings, a tutorial window will show up to guide the WiFi Settings. < LIVE VIEW > Front Cam Preview Icons from left to right:  Remained SD Card for Videos  Power % ...
Page 35 Enter F  R Rear Cam Preview - 35 -...
Page 36 < SETTINGS > Resolution：1080P UpsideDown：UpsideDown / Normal Sound：With Sound / Without Sound LoopVideo：1Min / 2Min / 3Min / 5Min - 36 -...
Page 37 < MY MEDIA > Display the recorded video file on SD card, you can choose the desired video. Smart phone video review ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Smart phone photo review Display the snapshot of photo on SD card. You can choose desired photo to show on Smartphone - 37 -...
Page 38 < Smart phone video review> Video Review Tap to enter options ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Browse & Playback Share Notice： Browse & Playback: Play videos with smart phone’s media player Share: Share videos with smart phone’s APP. - 38 -...
Page 39 < Smart phone photo review> Photo Review Tap to enter options ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Open & Playback Share *Notice: “Share” only supports APPs in smart phone. - 39 -...
Page 40 < Video Review > Video Review Tap to enter options ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Open & Playback Save B62G video to smart phone Notice： Browse & Playback: Play videos with smart phone’s media player - 40 -...
Page 41 DCIM：Recycle video file LOCK：Non-loop video file BACKUP：Backup File - 41 -...
Page 42 < Moments > Photo Review Tap to enter options ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Browse & Playback Save B62G photo to smart phone - 42 -...
Page 43: Trouble Shooting
Trouble Shooting Q1：Bike Cam could not boot up? Ans.： (1) Press Power key for 2 sec. then release. (If still could not boot up, do the following) (2) Use mobile power supply or DC power cable as power supply for the Bike Cam, the system should boot up and charging at the same time.
Page 44 Q5：What is the maximum capacity/speed for the memory card to be used with the B62G? How long can it records? Ans : B62G can support up to 32G for the memory card. Class10 level or above type of SD card is recommended. 1 min recording is about 120MB of SD card.
Page 45 (4) Restart the APP, and then connect again. (5) If still failed to connect, please contact PX customer service Dept. Q8. : The recorded date/time is not correct? Ans.: Before us the B62G, connect to GoRiding APP once  System will calibrate the system time to the local time.
Page 46: Specification
Specification Main unit & Rear Cam IC Chip (Front cam)AIT 8328P (Reae cam)AIT 8437D Dynamic Record Full HD 1080@30 Resolution Dynamic Record .Mov Format Dynamic Video Ratio 16:9 Video Bit-Rate Average 20Mbps Static Photo Format JPG， (Front cam)FULL HD 1920x1080 (Rear cam)HD 1280x720 Static Photo Ratio 16:9...
Page 47 Speaker Wi-Fi Yes, 802.11 b/g/n EIS Anti-shake Photo Shot Shot Shutter APP Shutter Cloud Share Yes, share via smartphone Date/Time Flip Yes, 180° PS. APP Setup Record Mode 1/2/3/5 minutes in length per record 1. Power in (micro USB) 2. EXTRA Option (micro USB) ...
Page 48 ● Receiver type：GPS system ● Chip：U-blox 7020 ● Frequency：L1 1575.42MHz ● Baud rate：9600bps ● Consumption：0.5W(max) (DC 5V 10mA) ● Waterproof：Ultrasonic pressing ● Interface：USB 2.0 ● Operating temperature：-40 ~ 80 ℃ ℃ ● Size：32 x 53 x 14 (mm) with cable 100mm (SR-SR) ●...
Page 49: Series Difference
Series Difference Differences Model Series Rear Quick Bike Mount Motorbike WIFI GPS Charge Mount kit Version B52Q B52Q-V*.** B52-V*.** B52X B52-V*.** B52G B52-V*.** B52R B52-V*.** B51-V*.** B51X B51-V*.** B51G B51-V*.** B51R B51-V*.** M62-V*.** B62G M62-V*.** M61-V*.** B61G M61-V*.** - 49 -...
Page 50: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 51 Declaration of Compliance Hereby we, Trans Electric Co., Ltd, declare that the radio equipment type B52Q series is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.px.com.tw...
