Summary of Contents for Ancona Brezza
-
Page 1: Installation Instructions

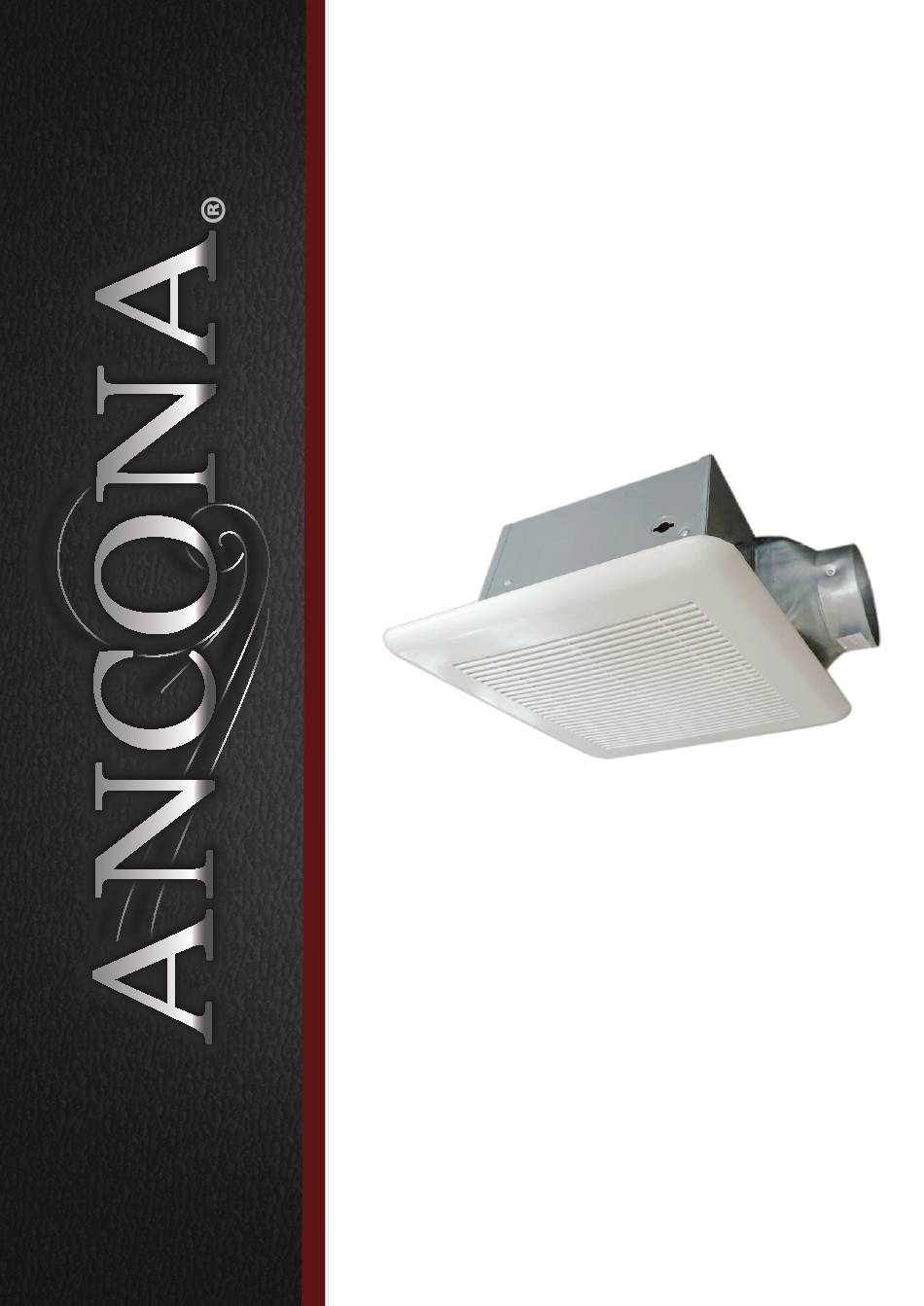

Brezza bathroom fan with adaptor User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN4807-01 22-09-2017... -
Page 2: Safety Information
Safety Information WARNING — TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. b. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. -
Page 3: Pre-Installation
Pre-Installation PLANNING FOR SUCCESSFUL INSTALLATION When installing the ventilation fan in a new construction site, install the main body of the fan and duct work during the rough-in construction of the building. The grill should be installed after the nished ceiling is in place. -
Page 4: Package Contents
Pre-Installation PACKAGE CONTENTS Quantity Part Description Fan body Installation bracket IV Installation bracket II Installation bracket I Installation bracket III Grill Long wood screws Short screw (4X12) Short screw (4X6) — 4 —... -
Page 5: Installation
Installation STEP 1 Determine joist width • Measure the distance from the center of the two ceiling joists where you will be installing the ventilation fan. • Use the table to determine the header bar installation. • For con guration 1, proceed to step 2. •... -
Page 6: Final Installation
Installation STEP 4 STEP 5 Con guration 3, preparation Con guration 3, preparation • Connect bracket I (D) to bracket II (C) using • Use long wood screws (G) to loosely attach two M4x6 screws (I). the main body of fan (A) to the ceiling joist in the four locations shown. -
Page 7: Connect Wiring
Installation Installation with reducer 4 in. to 3 in. reducer • Mount the reducer directly on the original 4 in. duct (provided) Tape Tape connector, and then use the duct tape to secure and seal. • Connect the pipe to the other end of the reducer, and then use the duct tape to secure and seal. -
Page 8: Troubleshooting
Troubleshooting CAUTION Do not install in locations where the air temperature will exceed 104°F (40°C). Corrective Action Problem Possible Cause Fan will not turn on Power off Make sure the power supply is on • • Test or replace the switch Faulty switch •... -
Page 9: Speci Cations
Speci cations Exhaust Rotate Voltage Rate Power Weight diameter speed Noise (sones) (Hz) Kg. (lb.) mm (inch) (RPM) 100 (4) 4.1 (9) 8.46 in. (214.8 mm) 9.13 in. (231.9 cm) 3.89 in. (99 mm) 5.74 in. (145.7 mm) 12.6 in. (320 mm) 12.6 in. - Page 10 Please register your product warranty by visiting the Ancona Home website. Canada & USA Phone: 1-800-350-4562 Fax: 800-350-8563 Email: service@anconahome.com Website: www.anconahome.com MAAN4807-01 © 2017 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modi ed or distributed. — 10 —...
