TASKMASTER TM-12U1000 Instruction Manual

Crimper

Advertisement

Quick Links

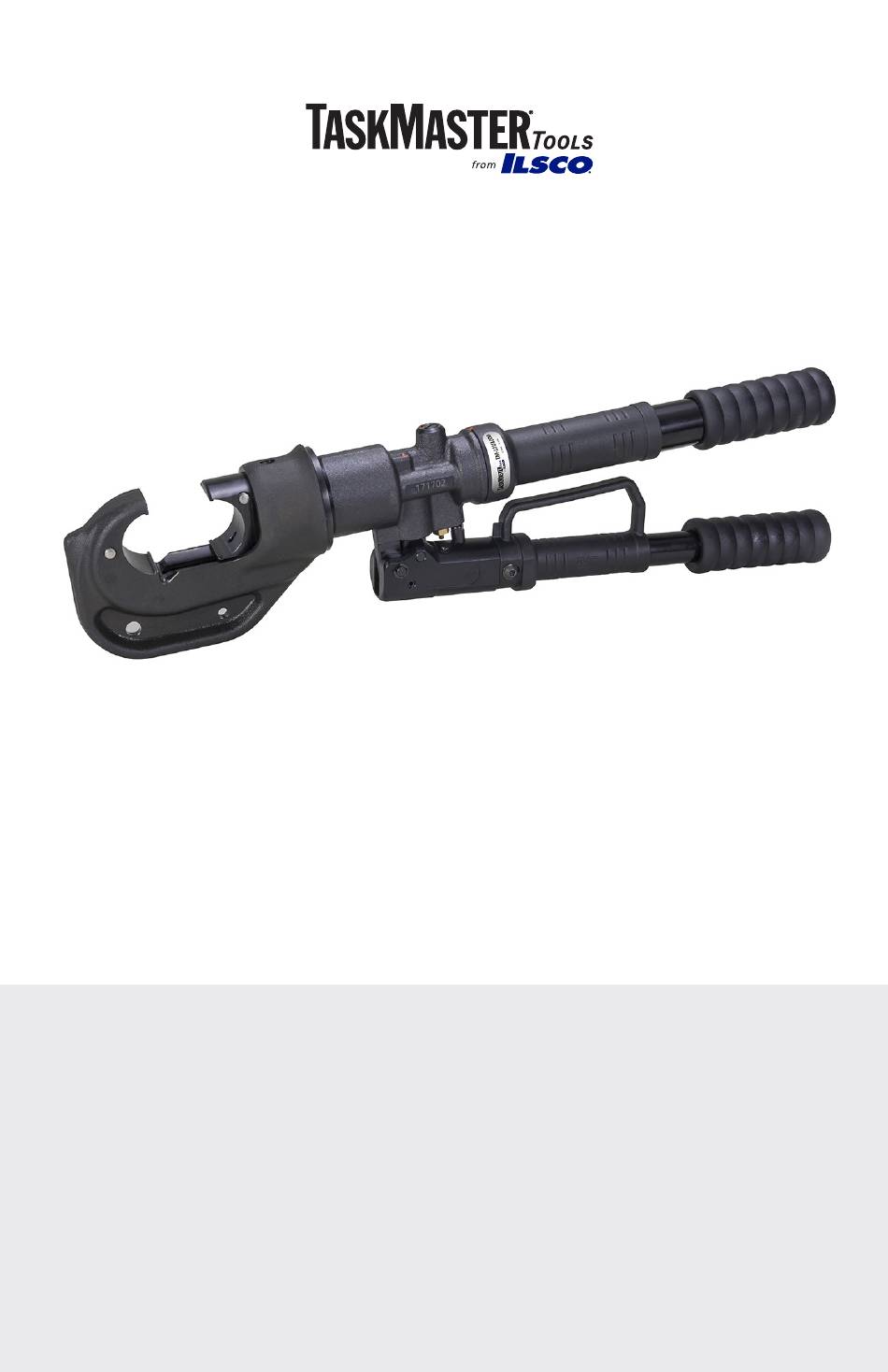

Model: TM-12U1000
Instruction manual
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
TASKMASTER TOOLS
4730 Madison Road
Cincinnati OH 45227
www.ilsco.com
Phone:
800-776-9775
513-533-6200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-12U1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TASKMASTER TM-12U1000

  • Page 1 Model: TM-12U1000 Instruction manual Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Phone: TASKMASTER TOOLS 800-776-9775 4730 Madison Road 513-533-6200 Cincinnati OH 45227 www.ilsco.com...
  • Page 2: Table Of Contents

    Tool Parts Breakdown...............................10 Parts List....................................11 Thank you... for buying a TASKMASTER TOOL. Our mission is to bring product innovation and exceptional customer service to the marketplace. This tool line is reliable, dependable, and durable for our customer’s needs. Please read this instruction manual carefully before using the product. If you have any questions about our product please reach out to our customer service department (see back cover).
  • Page 3: Warranty And Servicing

    TASKMASTER PRO service network will repair your registered tools within five business days of receipt. TASKMASTER PRO Tool Loaner Program If you need a replacement tool during any repair, our TASKMASTER PRO network can typically provide a comparable loaner tool to registered tool owners while your tool is being repaired. FREE Tool Reconditioning...
  • Page 4: Safety

    TM-12U1000 SAFETY Read all safety warnings, instructions provided with this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  • Page 5: Techinical Specifications

    TM-12U1000 TECHNICAL SPECIFICATIONS Force developed: 12 tons Jaw Opening: 1.65 in. Hydraulic oil: Shell Tellus S2 V 15 Dimensions: 23 in. x 8.75 in. x 3 in. (L x W x H) Weight: 14.5 lbs. Crimp Capacity CU conductor: 1000 kcmil - #8 sol/str...
  • Page 6: Identification

    TM-12U1000 IDENTIFICATION Ž  Œ  Œ Die release buttons  tRam Ž Stationary handle  Pump handle Release button Serial number NOTE: Includes molded carrying case.
  • Page 7: Operating Instructions

    TM-12U1000 OPERATING INSTRUCTIONS Be sure to read instructions carefully, wear safety goggles, and keep fingers away from cutting head. ADVANCING & RETRACTING To advance the tool, lift and lower the pump handle. To retract the tool, twist pump handle completely, then push handles together until ram is fully retracted.
  • Page 8: Tool Maintenance

    TM-12U1000 TOOL MAINTENANCE Daily maintenance: • After each crimping cycle wipe the crimping head jaws free of metal shavings. • Wipe down all steel parts with WD-40. • Store the tool in a non-humid environment. The tool should provide many years of service when given the proper maintenance and care.
  • Page 9: Head Assembly Breakdown And Parts List

    TM-12U1000 HEAD ASSEMBLY BREAKDOWN AND PARTS LIST Part # Part Description 714089 Compression Spring 2 712497 Clamping Bolt 760223 Cylinder 103521 Screw Part # Part Description 715221 C-Head 11 715242 Support Ring 714050 Screw 12 714820 Seal 710973 Seal Disc...
  • Page 10: Tool Parts Breakdown

    TM-12U1000...
  • Page 11: Parts List

    TM-12U1000...
  • Page 12 TM-12U1000 Notes: Notes:...
  • Page 13 TM-12U1000 Notes:...
  • Page 14 TM-12U1000 Notes:...
  • Page 15 TM-12U1000 Notes:...
  • Page 16 Date: 03/18 Version 2 TASKMASTER PRO Service: 4730 Madison Rd. Cincinnati, OH 45227 Phone: 800-776-9775 513-533-6200 www.ilsco.com...
