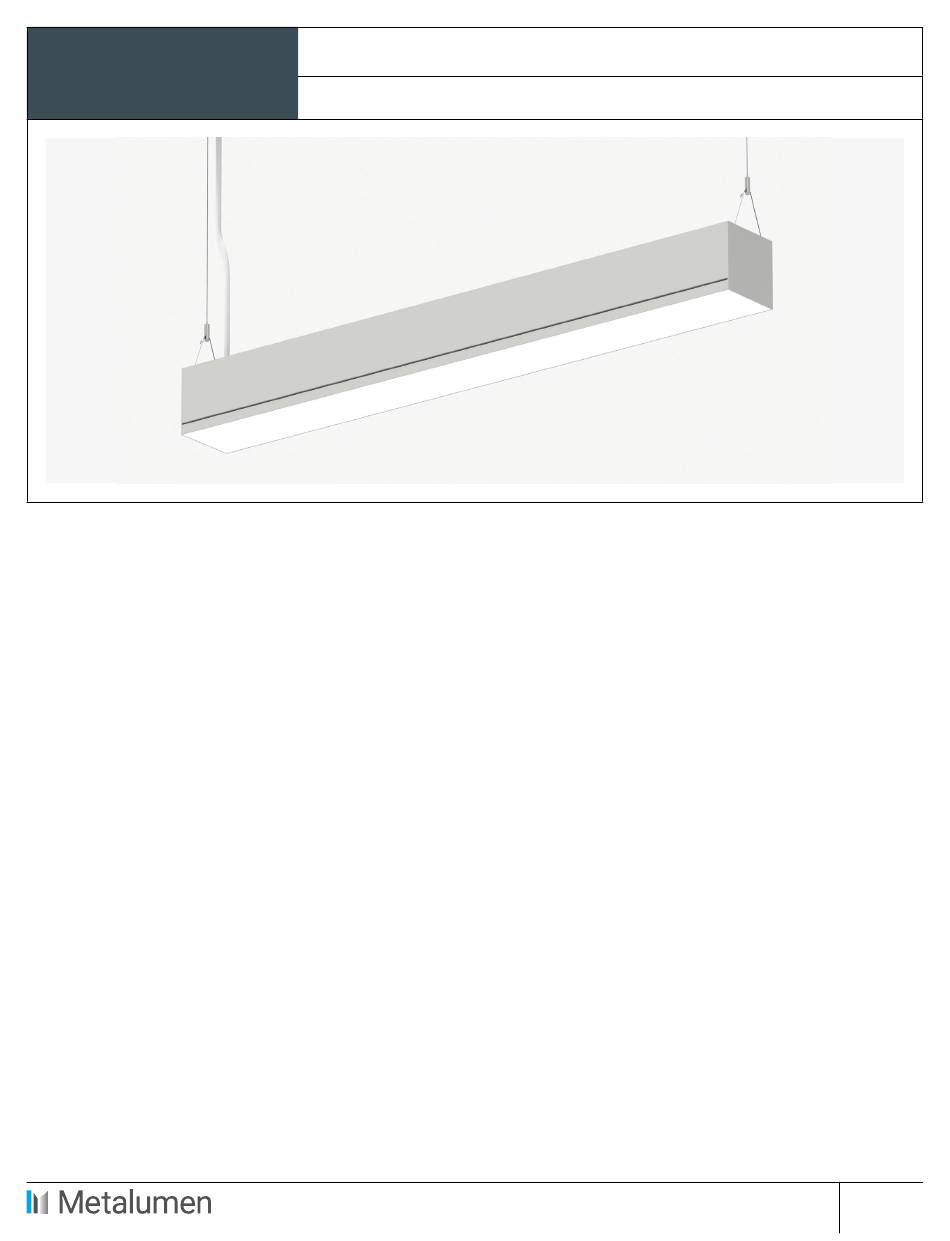

Metalumen S6 Installation Instructions Manual

Pendant, direct integral driver

Advertisement

INSTALLATION
INSTRUCTIONS
NOTE:
The following instructions provide general guidelines for product installation. These
instructions apply to the S6 sized fixtures. For additional information consult the applicable
electrical codes or contact factory directly for support before attempting anything with
uncertainty.
CAUTION:
Do not assemble fixture runs on floor.
WARNING: Risk of fire and electrical shock. DISCONNECT POWER AT ELECTRICAL PANEL before installing
or servicing this product.

GENERAL SAFETY INSTRUCTIONS:

1. Read all instructions prior to installing this fixture.
2. This product must be installed in accordance with the applicable installation code by a person familiar
with theconstruction and operation of the product and the hazards involved.
3. All wiring must be performed by a qualified electrician in accordance with national and local building
and electrical codes.
4. This fixture must be suitably grounded for your protection against shock hazards and to assure proper
operation.
5. Make sure that the power source conforms to the requirements of this fixture.
6. This product has accessible output terminals. Based on Canadian Electrical Code for class 2 circuits,
this productrequires installation in Restricted Access Area, so that no live parts are accessible to
unauthorized persons.
570 Southgate Drive, Guelph, Ontario N1G 4P6
Mailing Address: P.O. Box 1779
Guelph, Ontario N1H 6Z9
S6 Pendant, Direct Integral Driver
Specifications and design subject to change without notice.
T 1.800.621.6785 | T 519.822.4381 | F 519.822.4589
www.metalumen.com
RAIL 6
PAGE 1
IS-S6-P rev.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metalumen S6

  • Page 1 S6 Pendant, Direct Integral Driver NOTE: The following instructions provide general guidelines for product installation. These instructions apply to the S6 sized fixtures. For additional information consult the applicable electrical codes or contact factory directly for support before attempting anything with uncertainty.
  • Page 2 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS PARTS LIST TOP VIEW BOTTOM VIEW A. Luminaire B. Wire Entry Canopy C. Non-Wire Entry Canopy D. Aircraft Cable E. Gripper WIRING DIAGRAM INTEGRAL DRIVER TO LINE VOLTAGE Specifications and design subject to change without notice.
  • Page 3 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTALLATION INSTRUCTIONS STEP 1. Remove fixture and hanger kit STEP 2. Secure Hex-Box (supplied by others) to packaging; note power cord coming out at the a structure of suitable strength to support the top of the luminaire (one end only) fixture.
  • Page 4 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTALLATION INSTRUCTIONS STEP 7. Example of completed fixture. STEP 8. For continuous runs, install Start fixture STEP 9. Remove the lens from the mid/end unit. first. (As per Steps 1 to 7) STEP 10.
  • Page 5 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTALLATION INSTRUCTIONS STEP 12. Align mid/end fixture and slide it into STEP 13. Example of completed continuous run. place. Secure with screws. Reinstall reflector assembly and lens in mid/end. Perform necessary wiring between fixtures.
  • Page 6 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTALLATION INSTRUCTIONS STEP 16. Cut off extra hangers at the corner joint STEP 17. Example of completed grid. from adjacent linear units. Keep cuts clean and close to fixture body. Hang the assembly from the corner unit hangers (see steps 2-6).
  • Page 7 S6 Pendant, Direct Integral Driver RAIL 6 INSTALLATION INSTRUCTIONS MAINTENANCE STEPS Required Tools Screwdriver Plastic / Latex Gloves Important: Use clean gloves to avoid adding oil/dirt to reflector surface. Avoid scratching reflector surface by using installation tools with soft plastic rounded edges.
