Summary of Contents for Ecox WF01
-
Page 1: User Manual
USER MANUAL WF01 WF01 KIT WIFI... - Page 2 CONTENT SPECIFICATIONS REQUIRED EQUIPMENT STEPS FOR INSTALLATION AND CONFIGURATION WIFI DEVICE ECOX WF01 KIT WIFI...
- Page 3 Power Input: DC 5V / 300mA Applicable System: IOS, Android NOTES Ecox WiFi device only works with encryption WPA-PSK / WPA2-PSK without encryption. The camera of your smartphone needs to be equal or greater than 5 million pixels or more to scan the QR code correctly.

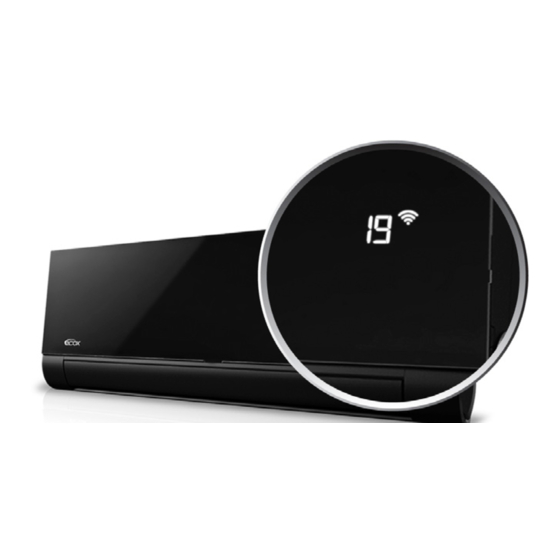

- Page 4 REQUIRED EQUIPMENT Air Conditioning with USB port to connect the WiFi device ecox Having a wireless network using WiFi with good signal arrives at the place where the indoor unit is WiFi USB device ecox Smartphone WF01 KIT WIFI...
- Page 5 STEP 1 Remove the protective cover ecox wifi device. Ecox enter the WiFi device in the indoor unit ecox. The connector is on the inside of the cover of the indoor unit, place it once you open the lid and insert the device.
- Page 6 Android phones or App Store operating systems iOS phones, you can also scan in the manual the QR code that applies to your operating system, you can place under the caption "Download Application". Download the application: WF01 KIT WIFI...
- Page 7 STEP 3 Once downloaded the application, open it, register and create a user placing the data requested him WF01 KIT WIFI...
- Page 8 LED button the computer generates a sound confirmation signal received after the seventh sound in the LCD panel the letters "AP" indicating that the computer is ready to be configured for connection appear. This function is available for 6 minutes. WF01 KIT WIFI...
- Page 9 Again between the application and select "+ add device", the camera will open to scan the QR code that comes in WiFi and/ or device on the sticker that comes inside the package ecox WiFi device. Scan the code and press OK.
- Page 10 Connect the air conditioner to the local Router entering the settings or adjustments depending on the operating system on your mobile phone. WF01 KIT WIFI...
- Page 11 STEP 5 Search among WiFi networks air conditioning equipment, which should appear as net.ac.xxxx and place the Pass 12345678 WF01 KIT WIFI...
- Page 12 STEP 6 Once you are connected to the air conditioner return to the "NetHome Plus" application and connect the computer to the local network. Select the network and place the corresponding key. WF01 KIT WIFI...
- Page 13 Once you're connected network wing locate and select the icon air conditioning equipment. WF01 KIT WIFI...
- Page 14 Select the computer application and start control from your mobile phone from anywhere in the world . WF01 KIT WIFI...
- Page 15 STEP 7 Update your air conditioner in the application settings. Control your computer from wherever WF01 KIT WIFI...
