SAFETY RETAINER TYPE SCALERS
PART #
WEIGHT
TX1B-LTCS
TX1B-LTNS
STANDARD WELD FLUX SCALERS: Model TX1B
STANDARD EQUIPMENT:
DESCRIPTIVE SUFFIXES FOLLOWING "B" TO FURTHER DESCRIBE TOOL:
LT = Lever Throttle
www.airtools.com
TEXAS
1-800-231-9740
254-587-2533 (Int'l calls)
TX1B
SHIPPING WT.
BOX OF 6
4 lbs.
30 lb. 3 oz.
15" w/ chisel
6 lbs.
40 lbs.
17" w/ 5" needles
With Needle Scaler:
1 set 5" Scaler Needles
With Weld Flux Scaler:
1 - 7" Flat Chisel
PT = Push Type Throttle
NS = Needle Scaler
~ Made in U.S.A. ~
Service, Operation
LENGTH
CFM
CONSUMED
12 CFM
12 CFM
CS = Chisel Scaler
Email: tptinfo@airtools.com
NEVADA
1-800-858-1222
Parts Manual
and
BORE
STROKE
BPM
INLET
1"
1-1/8"
4600
1/4"NPT
1"
1-1/8"
4600
1/4"NPT
VIRGINIA
1-800-626-1091
MINIMUM
HOSE SIZE
3/8"
3/8"
Advertisement
Table of Contents
Summary of Contents for Texas Pneumatic Tools TX1B
- Page 1 12 CFM 1” 1-1/8” 4600 1/4”NPT 3/8” STANDARD WELD FLUX SCALERS: Model TX1B STANDARD EQUIPMENT: With Needle Scaler: 1 set 5” Scaler Needles With Weld Flux Scaler: 1 - 7” Flat Chisel DESCRIPTIVE SUFFIXES FOLLOWING “B” TO FURTHER DESCRIBE TOOL:...
- Page 2 SCALERS TX1B PUSH THROTTLE BACKHEAD ASSEMBLY TX-00219 TX-00095 THROTTLE VALVE CASING TX-00600 THROTTLE VALVE SNAP RING TX-00807 PUSH TYPE BACKHEAD TX-00882 BACKHEAD LOCK RING TX-00583 SOCKET SCREW - VALVE RETAINER TX-00645 T.V. CASING LOCK NUT TX-00610 CONTROL VALVE HANDLE TX-00092 THROTTLE VALVE TX-00302 “O”...
- Page 3 TX-00173 VALVE BLOCK BUTTON TX-00126 VALVE BLOCK DOWEL PIN TX-00196 FLUTTER VALVE TX-00508 VALVE BLOCK TX-00373 PLUNGER TX-00700 CYLINDER SLEEVE TX-00801 TOOL NOSE KEY TX-00963 TOOL NOSE TX-00956 RETAINER TX-00527 RETAINER BUFFER TX-00527-H RETAINER BUFFER HEAVY DUTY (NS) TX-00313 SCALER BARREL TX-00554 RETAINER CLIP TX-00654 DOUBLE RETAINER CLIP HEAVY DUTY (NS) TX-00018...
-
Page 4: Preparing For Operation

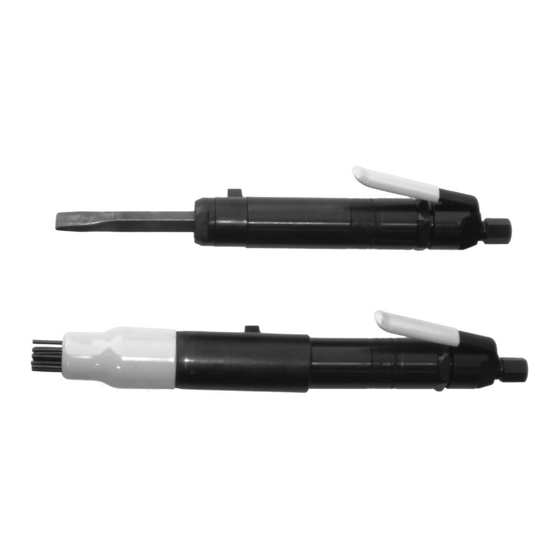

PREPARING FOR OPERATION The TX1B is convertible and can be used either as a chisel scaler or as a needle scaler depending on the applica- tion. To remove the chisel, pull up on the retainer (TX-00956). This should allow the chisel to slide out of the tool.
