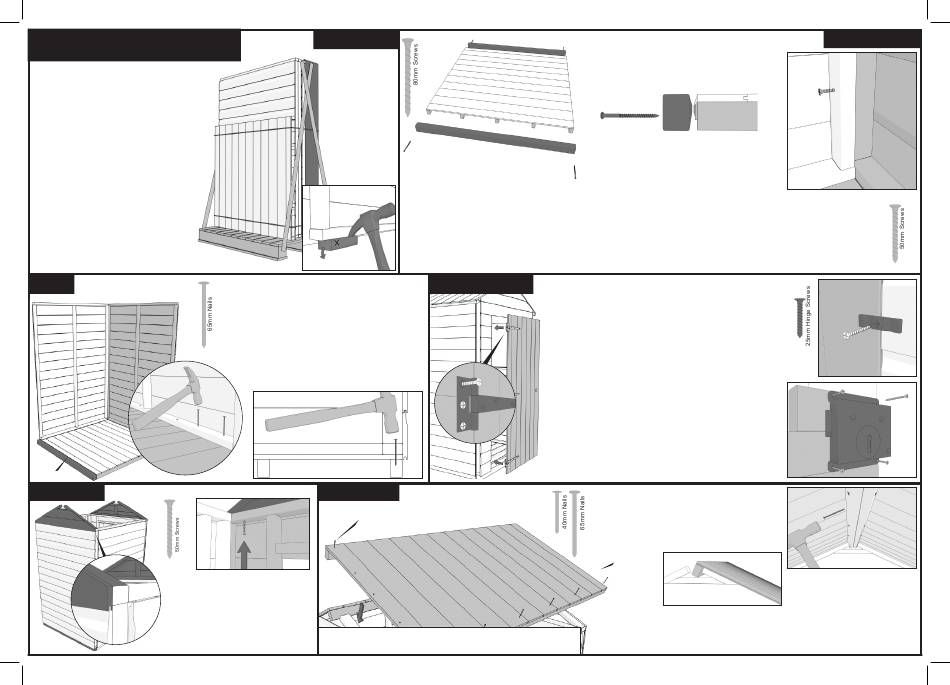

Flex Apex Assembly 4ft Kit
Page 1 of 2
1.a Unpack all of the components and
check that you have all of the parts
required. Please use the check list on
this page.
1.b Carefully remove the
untreated timber that makes up the
pallet your building was
delivered on and discard this.
1c. The underside of the floor must be
treated with a quality wood preserver.
1d. Before starting assembly you
may need to remove transport blocks
(marked x) from the bottom of some
panels.
3. Walls
3.a
Gable End
5. Gable Tops
Note: See back for sizes greater than 4x4
5.a Line up the gable tops with the
panel, remembering to place them
above the heavy duty bearers.
5.b Secure with 50mm screws
from the inside, screwing upwards
5.a
into the framing.
1. Pre Assembly
Note: See back for sizes greater than 4x4
Important:
The floor panel must be laid on a firm and
level base.
1d.
3.a When you have secured all of the wall
panels to each other. Attach them to the floor
using the 65mm nails.
3.b Ensure that the nails are driven through
the side/gable base rails, through the floor
boards and in a position where they will finally
penetrate the floor joist.
3.b
6. Roof Panels
Note: See back for sizes greater
than 4x4
40mm Nails
5.b
Important: Before securing the roof in place, ensure that the side
walls sit inside the gables. If they are not, the roof will not fit.
2.a Lay down the floor and place the heavy
duty bearers running parallel with the floor
boards and flush with the floor. Screw them in
place with the 80mm screws .
2.b Lay out the completed floor in the desired
2.a
location and think about where you want to
position the walls. The gables of the building
will sit on top and in line with the heavy duty
bearers.
2.c Place a side panel at a right angle to the panel positioned on
the gable end. Secure the panels together from the inside, using the
50mm screws provided.
2.d Place the next side wall in position and secure this to one of the
other side panels, again using the 50mm screws provided.
4. Hanging the Door
Important: The door has been manufactured so it can be left or
right hand hinged to suit your needs.
4.a Choose whether you want your door to be right or
left hand hinged and line it up in the framing accordingly.
4.b Secure the hinges in place using the 25mm black
hinge screws provided. Make sure it is level or your door
will stick/not close properly.
4.c Fix the turn button in place. Chose a place close to
the top of the door. Don't screw in too tightly or it won't
turn.
4.b
4.d Line up the lock with the pre-drilled hole in the door
and fix this in place with the screws. Make sure the lock
is on the inside of the shed when you close the door.
Troubleshoot: If at this point the roof panels do not align correctly, the door does not
open/close properly or the building looks twisted at all, then it would suggest that the
base is not correctly level. Therefore, one or more corners of the building may need
adjusting so the base is square/level.
6.a Place roof panels in position and secure
these internally to each other with the 65mm nails
provided.
6.b Nail the roof to the gable and side frame with
the 40mm and 65mm nails provided.
65mm
Nails
2. Floor and Walls
2.d
4.c
4.d
6.a
Important: Ensure the overhang
of the roof is equal at each gable
end.
