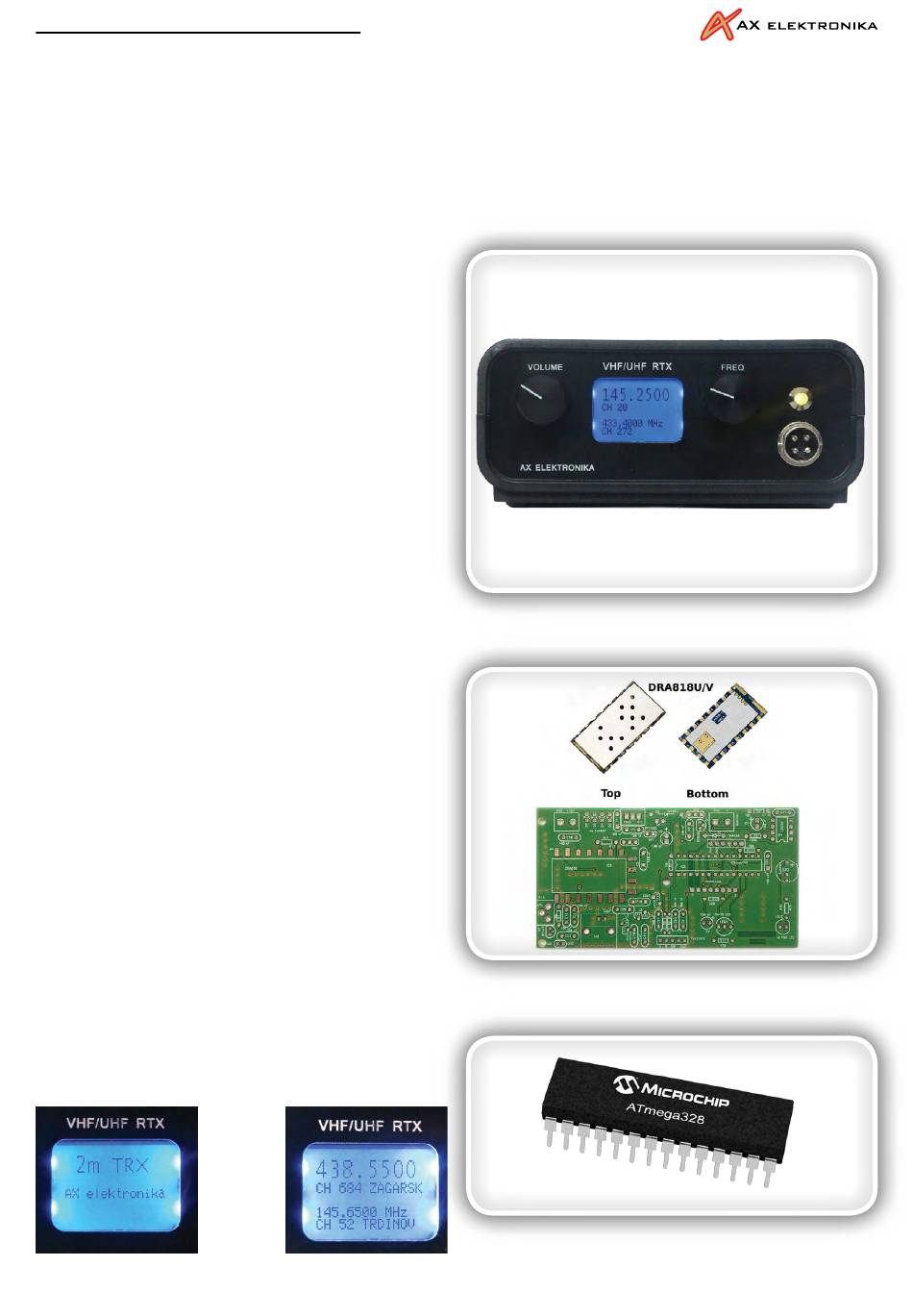

W e eke n d VH F/ U H F ra d i o
Weekend VHF/UHF radio
Thank you for purchasing Weekend VHF/UHF radio!
There are three basic producs:
KIT all components (code 5KIT0036) contains:
» All components that are to be soldered on the PCB
» Double sided PCB
» Nokia 5510 LCD, RGB LED & Red LED
» Preprogrammed ATmega328 DIP
» Rotary encoder
» Potentiometer
» 2 buttons
» Speaker
» All wires
» Connectors:
◊ BNC for antenna
◊ 4-pole microphone connector
◊ 3.5 mm jack for external speaker
◊ DRA818 (VHF or UHF, depending from the ordered
KIT)
KIT VHF module + PCB (code 5KIT0042) contains:
» DRA818V
» PCB_VER 5.11
KIT UHF module + PCB (code 5KIT0043) contains:
» DRA818U
» PCB_VER 5.11
The KIT all components (code 5KIT0036) includes all
wires needed to wire your components and make coils. In
the KIT you will see:
» 1 m of 2 wire red/black cable
» 20 cm of 10 wire flat cable
» 15 cm of coaxial microphone cable
» 26cm of 0.8 mm CuL copper wire
Use red/black cable for powering your Weekend radio
station. Place rubber sleve to predrilled hole on the back
side of enclosure and insert cca. 10 cm of red/black cable
in it. Connect red/black cable to +12V & GND terminals
on the PCB
Cut flat cable to 15 cm lenght (to half), take 7 wires and
use them to connect Nokia 5510 LCD.
Assembly instruction
5KIT0036
5KIT0042 and 5KIT0043
5ELU0005
SVET
ELEKTRONIKE 1
Advertisement
Table of Contents
Summary of Contents for AX Elektronika 5KIT0036
- Page 1 KIT UHF module + PCB (code 5KIT0043) contains: » DRA818U » PCB_VER 5.11 The KIT all components (code 5KIT0036) includes all wires needed to wire your components and make coils. In the KIT you will see: » 1 m of 2 wire red/black cable »...
- Page 2 W e e ke n d VHF / U HF ra d io This will leave 3 wires that you can use to connect RGB (RX/TX) LED. Use 3 wires from the other flat cable and use them to connect potentiometer, use 4 wires and connect rotary encoder.
- Page 3 W e eke n d VH F/ U H F ra d i o Fixing LCD to Front plate Front plate is predrilled and delivered with a protective foil. Peel that foil before you continue. Fixing LCD to front plate is easy.
- Page 4 To solve that problem you can solder one resistor and one capacitor on the solder side as seen on the image. Photo of the KIT (code 5KIT0036): Predrilled PVC enclosure All components that are to be placed to the PCB (including preprogrammed microcontroller)
- Page 5 W e eke n d VH F/ U H F ra d i o SVET ELEKTRONIKE 5...
- Page 6 W e e ke n d VHF / U HF ra d io SVET ELEKTRONIKE...
- Page 7 W e eke n d VH F/ U H F ra d i o SVET ELEKTRONIKE 7...
