ACCELENS (ACS) INCLINOMETER WITH CANOPEN INTERFACE
User Manual
AMERICAS
EUROPE
ASIA
FRABA Inc.
POSITAL GmbH
FRABA Pte. Ltd.
1800 East State Street, Suite 148
Carlswerkstrasse 13c
60 Alexandra Terrace,
Hamilton, NJ 08609-2020, USA
D-51063 Köln, GERMANY
#02-05 The Comtech, SINGAPORE 118502
T +1 609 750-8705, F +1 609 750-8703
T +49 221 96213-0, F +49 221 96213-20
T +65 6514 8880, F +65 6271 1792
www.posital.com, info@posital.com
www.posital.eu, info@posital.eu
www.posital.sg, info@posital.sg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACS080 CANopen and is the answer not in the manual?

Questions and answers

Related Manuals for Posital Fraba ACS080 CANopen

Summary of Contents for Posital Fraba ACS080 CANopen

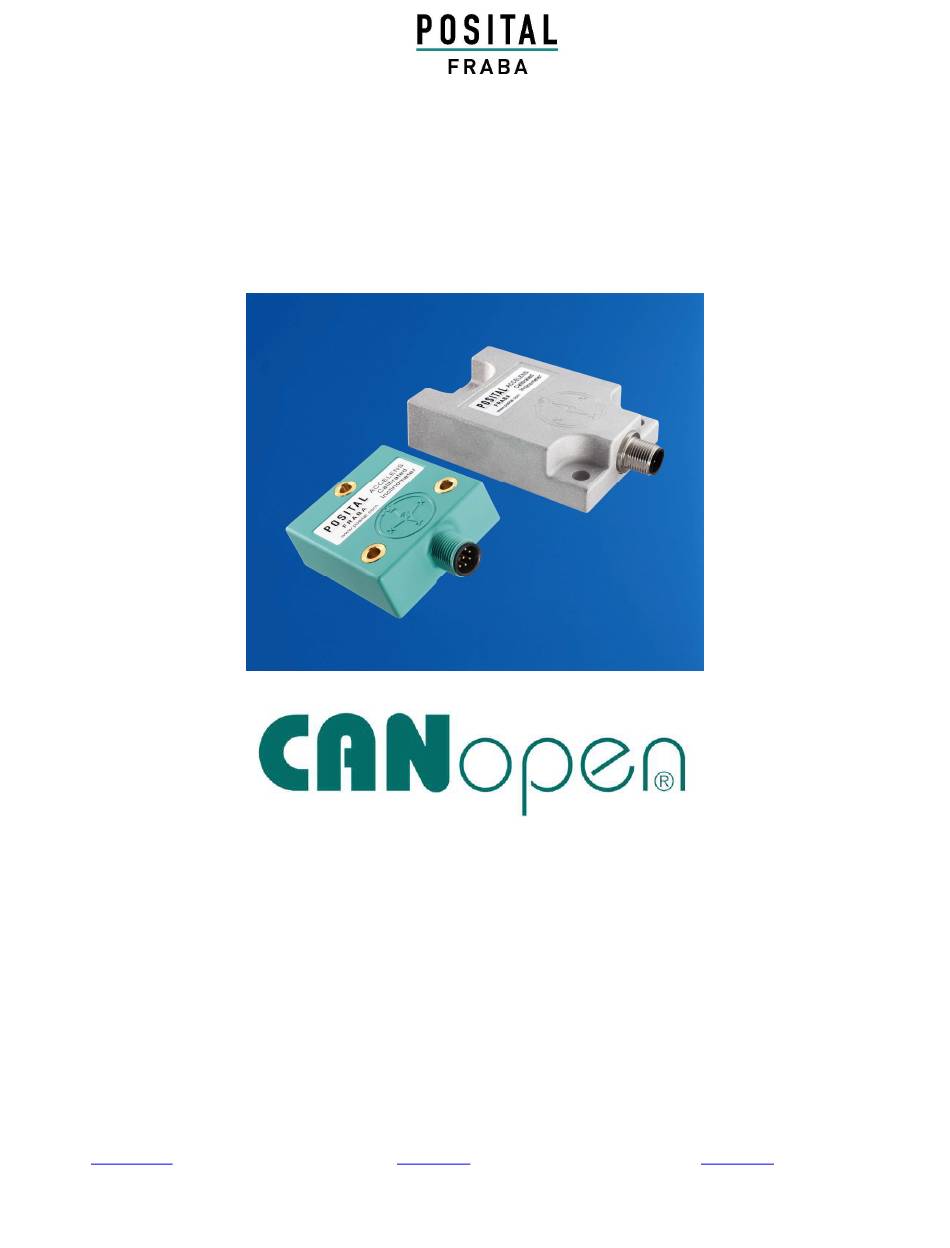

  • Page 1 ACCELENS (ACS) INCLINOMETER WITH CANOPEN INTERFACE User Manual AMERICAS EUROPE ASIA FRABA Inc. POSITAL GmbH FRABA Pte. Ltd. 1800 East State Street, Suite 148 Carlswerkstrasse 13c 60 Alexandra Terrace, Hamilton, NJ 08609-2020, USA D-51063 Köln, GERMANY #02-05 The Comtech, SINGAPORE 118502 T +1 609 750-8705, F +1 609 750-8703 T +49 221 96213-0, F +49 221 96213-20 T +65 6514 8880, F +65 6271 1792...
