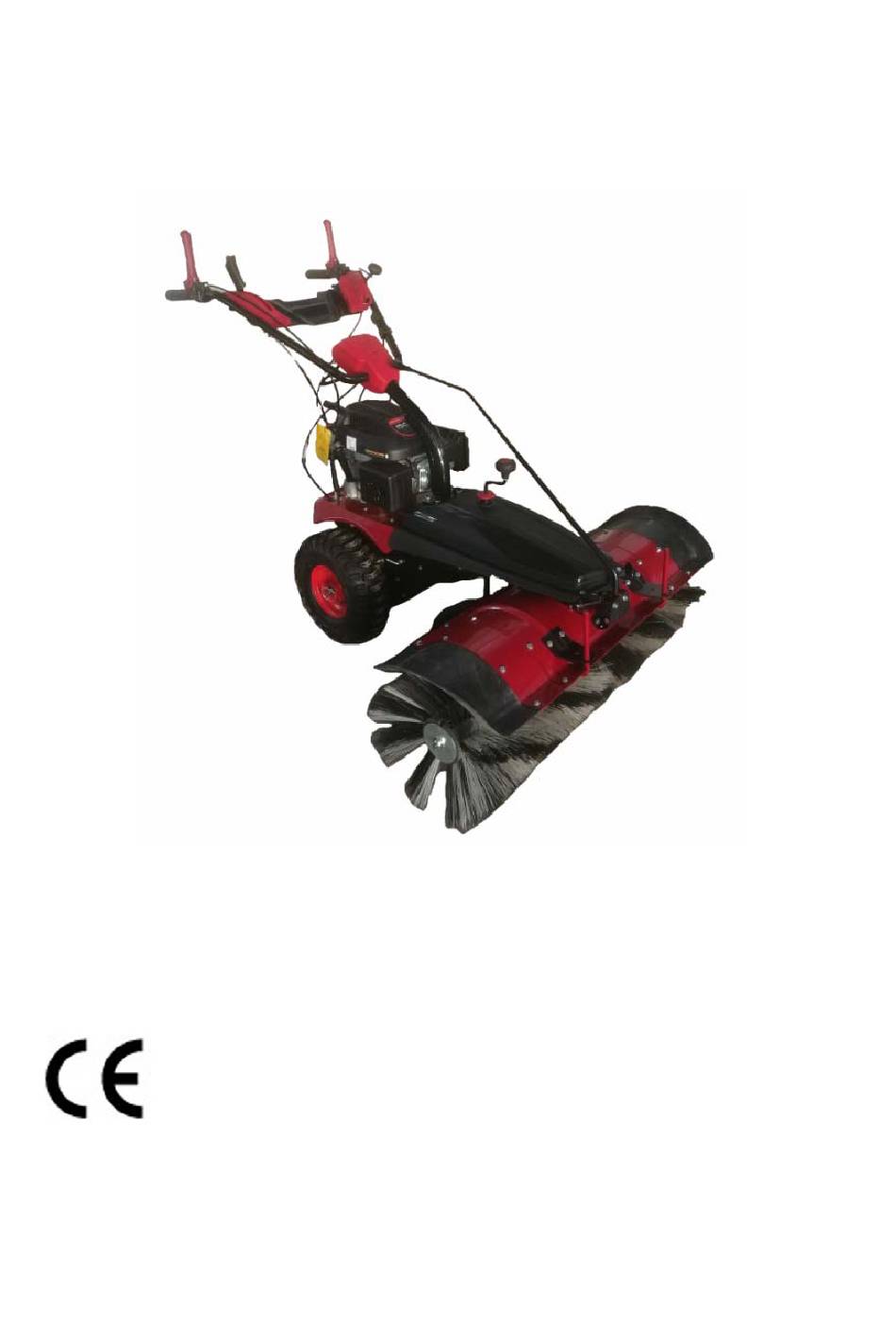

- Page 1 Motorized Sweeper SSG70100 Operation Manual...
- Page 2 Contents P r e p a r a t i o n … … … … … … … … … … … … … … 2. I n s t a l l a t i o n … … … … … … … … … … … … … … 3.
- Page 3 * Description* Thank you for using our products. We hope you will spend many enjoyable hours using it. Please read through these instructions carefully. Learn all the controls and the correct use of the machine. 1. Preparation 1.1 Purpose and Features This sweeper is designed and built to sweep yards, roads, lanes and storehouses.
-
Page 4: Safety Instruction
1.3 Safety Instruction Before assembly and putting the machine into operation, please read carefully the operating instructions: Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the control quickly. ever allow children to operate the equipment. - Page 5 24. Operate this unit at suitable hours, not early in the morning or late at night, when people might be disturbed. Comply with times listed in local ordinances. 25. Limit the number of piece of equipment used at any one time. If use the machine at night, please check if the illumination system is in good condition first。...
- Page 6 Figure 2 2.3 Install the Sweeping Brush: Fit the flat key 8x7x80 (2) into the keyway of the worm gear box (3); align the column brush link (1) to the flat key and then install it into the worm gear box (3);...
- Page 7 Figure 4 2.5 Install the Brush Steering Lever: Align the upper tube of the steering lever (2) to the tube on the hinge seat, pass hex bolt M8x70 (7) into the tube, place the flat gasket Φ8xΦ16x1.2 (5), and tighten up with hex lock nut M8 (4). Use one end of the armrest adjusting tension spring (1) to cover the main baffle screw and the other end to hook inside the hole of the steering lever, align the rubber piece (6) to two holes on the steering lever, and fix the rubber piece with cross-recessed flat head screw M6x12 (3).
-
Page 8: Operation And Adjustment
3. Operation and Adjustment Warning: before using this unit, read through the safety instructions in the first part! 3.1 How to start the engine Turn the switch to “ON”. Open the choke and accelerator, and then pull the starter cord to start it. Plug the power cable into the wall socket. -
Page 9: Maintenance
3.7 Brush direction adjustment Press downwards the brush steering lever and move it to the left or right until it is well seated in the slot. Then the brush’s direction can be adjusted. 3.7 Machine storage Drain the gasoline from the machine in seasons it is not used. Store the machine indoors when the temperature is below -10 . -
Page 10: Troubleshooting
6 Troubleshooting Fault Possible cause Corrective actions Engine does not start Consult engine manual Consult engine manual Engine runs Consult engine manual Consult engine manual unevenly(stutters) Machine does V-belt slack or torn Have slack V-belt tightened. sweep Have torn V-belt replaced. Machine does Coupling cable for drive system...
