Thank you for buying Megahome Water Distiller.
Please read this instruction manual carefully before using your distiller.
Proper use and maintenance can reduce the defective rate of the distiller
and prolong its life.
We hope you enjoy using your Megahome water distiller.
Megahome Distiller Instruction Manual
For:
MH-943TWS
MH-943SBS/SWS
Ref.2013-5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH-943TWS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MegaHome MH-943TWS

Summary of Contents for MegaHome MH-943TWS

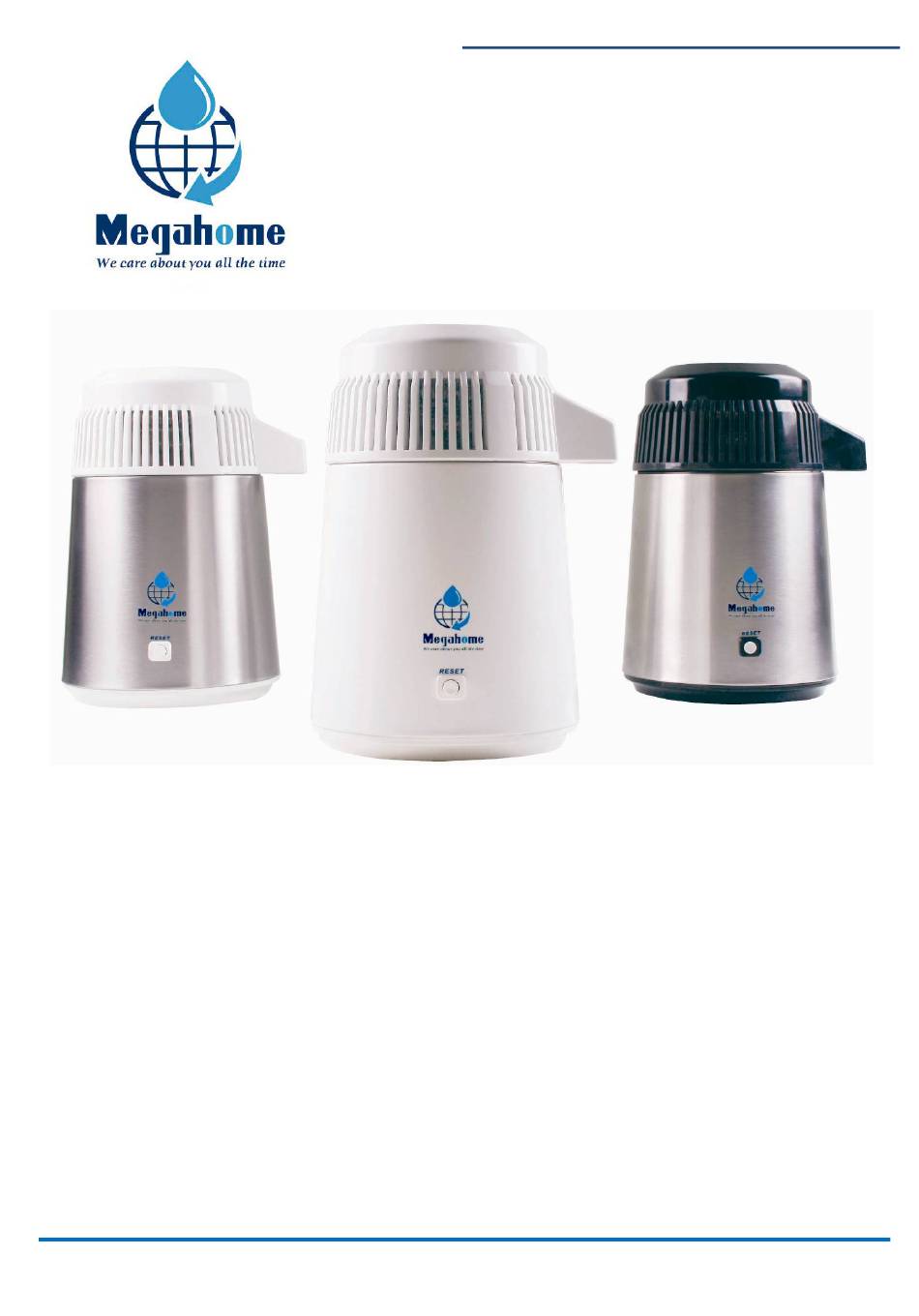

  • Page 1 Thank you for buying Megahome Water Distiller. Please read this instruction manual carefully before using your distiller. Proper use and maintenance can reduce the defective rate of the distiller and prolong its life. We hope you enjoy using your Megahome water distiller. Ref.2013-5...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all Instructions. 2. Do not touch hot surface. 3. To protect against fire, electrical shock and injury to persons do not immerse cord, plug, or electrical parts in water or other liquid.

  • Page 3: Exploded Drawing

    Exploded Drawing Top: Heat sink Body: Heating #304 Stainless Steel Upper Tank Cover Fan & Motor Product Features Boils the water to kill Bacteria and Cooling Duct Parasites. Aluminum Fins Produces and collects the purified steam that leaves behind impurities. Cools and #304 Stainless condenses the steam into pure distilled Steel Pipe...
  • Page 4 Packing and accessories of distiller + PP bottle PP bottle Distiller can be found inside (1) Remove the PP bottle that is located ※ Please do not pour hot Styrofoam box. inside the distiller. boiling water into the Please verify the following (2) Please check if the PP bottle is in a good PP bottle.
  • Page 5 Nozzle Installing Instruction PP Nozzle PP Nozzle + Glass Insert Please insert the nozzle into the 2 clip-on slots that can be found underneath the water distiller top. Please fold the activated charcoal sachet in half and place it carefully in the nozzle ※Attention: If the glass insert has been damaged, please contact your local distributor for a replacement.
  • Page 6 Cleaning Instruction Prior To First Distillation You need to clean the distiller before making water to drink or use. 1. Please remove the top and pour 2 liters of water into the stainless steel tank, then put the top back on. Please fully insert the two power cords into the sockets on the distiller then insert the main power cord into the wall outlet.
  • Page 7 Distillation Process Remove the top from the distiller then pour water into the stainless steel tank. ※ Please do not surpass the "FULL" line (Please check the image on the right). ※ Using hot or boiled water can reduce the distillation time Place the top back onto the distiller then insert the two power cords into the sockets on the distiller and please make sure both power cords have been plugged properly by...
  • Page 8 Stainless Steel Tank Cleaning Instruction 1. Please remove the top and pour hot water into the stainless steel tank until the water level has surpassed the residue build-up. 2. Please add 1-4 teaspoon of cleaner to the stainless steel tank (the amount of the cleaner added depends on how much residue remains in the stainless steel tank).
  • Page 9 Activated Charcoal Sachet ※ Activated charcoal ingredients: Natural coconut shell. ※ Functions: Removes odors and improves taste. ※ Validity date: Each activated charcoal sachet should be replaced within a period of 25 days. If a strange taste or odor is discovered in the distilled water, please replace the activated charcoal sachet immediately ※...
  • Page 10 Distiller Top Trouble Shooting Problems Causes Solutions Replace motor, reassemble the (1) Motor malfunction 1.Weird noise occurs in the (2) Damages caused Reassemble the top self-assembly/disassembly (1) Motor shaft is stuck Replace motor (2) Upper cover power Replace Upper cover power cord cord malfunction (3) Motor wire connection Recheck the motor wire...
  • Page 11 Distiller Body Trouble Shooting Problems Causes Solutions Verify if both power cords are plugged properly that the white lines (1) No power supply on the body on both power cords are no longer visible. (2) Blown fuse Replace fuse 1.Body heating problem (3) No power supply from the wall outlet Change to another wall outlet (4) Power cord malfunction...

  • Page 12: Warranty

    Warranty Megahome distillers have a 12 month warranty against manufacturing defects. This warranty is not applicable in the following conditions: 1. Failure to follow the instruction manual to operate the machine which results in damage to the machine. 2. Repairing the machine by an unauthorized third party that includes the client him/herself.

  • Page 13: Specification

    Distiller / glass bottle / accessories total gross weight: 6.0 kg International Certificates 230-240V 50 Hz 220-240V 50 Hz 120V 60 Hz Megahome Corporation No. 155, Keji 5 Rd., Annan District, Tainan City, Taiwan, R.O.C. 709-55 TEL: 886-6-3841551~3 FAX: 886-6-3841560 http://www.megahome.com.tw...

This manual is also suitable for:

Mh-943swsMh-943sbs
