KOLVER S.r.l. declares that the new tool here described : socket/bit tray model CBS880 is in conformity with
the following standards and other normative documents: 2006/42/CE, LVD 2014/35/UE, EMCD 2014/30/UE, EN
60745-1, EN 60204-1, EN 61000-6-1, EN 61000-6-3.
It is also in conformity with RoHS II normative (2011/65/UE).
Name:
Position:
st
Thiene, Jan. 1
2019
MANUAL Vers. 1.0
SOCKET TRAY CBS880
IDENTIFICATION DATA OF THE MANUFACTURER
VIA M. CORNER, 19/21
36016 THIENE (VI) ITALIA
IDENTIFICATION DATA OF THE PRODUCT
CODE: 020042
TECHNICAL DATA OF THE PRODUCT
DIMENSIONS: 257 x 87 x h40 mm WEIGHT: 1 Kg
DECLARATION OF CONFORMITY
Giovanni Colasante
General Manager
Person authorized to compile the technical file in Kolver
KOLVER S.r.l.
Giovanni Colasante

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBS 880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kolver CBS 880

  • Page 1 DIMENSIONS: 257 x 87 x h40 mm WEIGHT: 1 Kg DECLARATION OF CONFORMITY KOLVER S.r.l. declares that the new tool here described : socket/bit tray model CBS880 is in conformity with the following standards and other normative documents: 2006/42/CE, LVD 2014/35/UE, EMCD 2014/30/UE, EN 60745-1, EN 60204-1, EN 61000-6-1, EN 61000-6-3.

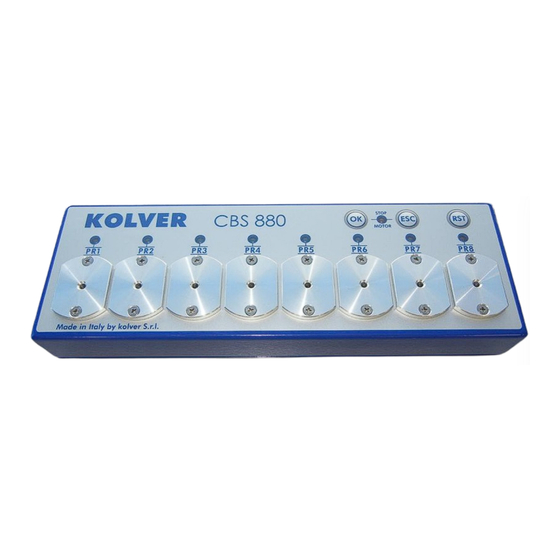

  • Page 2 CONNECTION: The CBS 880 bit/socket tray is to be used with the EDU 2AE/TOP and EDU 2AE/TOP/TA control units: it allows to select the desired program by using one of the external bits or sockets. The bit/socket tray is supplied with one standard M-F 25 pin cable (1,8 m long, code 880021).

  • Page 3: Front Panel

    FRONT PANEL:  PR1÷PR8 led for each single program (socket): If on, it indicates the program in use. If flashing, it indicates the program to be selected (sequence mode and ext box enabled )  STOP MOTOR led: if on it indicates the motor is not enabled. ESC-OK-RESET buttons are enabled through line 4 in the option menu (OK-ESC) by choosing one of the following options: INT = Only the buttons on the front panel of the control unit are operational...
  • Page 4 EXPLODED VIEW SPARE PARTS: Position Description Quantity Code M3x5 inox countersunk screw 880014 Aluminium socket 880020 Membrane 880019 Cover 880017 8 mm spacer 872435/N Board 880016 M3 zn-white nut 800056 Bottom panel 880018 3x5 Button head screw 240605 Adhesive support 800016 Connection cable CBS880-EDU 2AE/TOP 880021...
  • Page 5 OVERALL DIMENSIONS: Vers. 190416...
