Summary of Contents for Seuic AUTOID 7 series

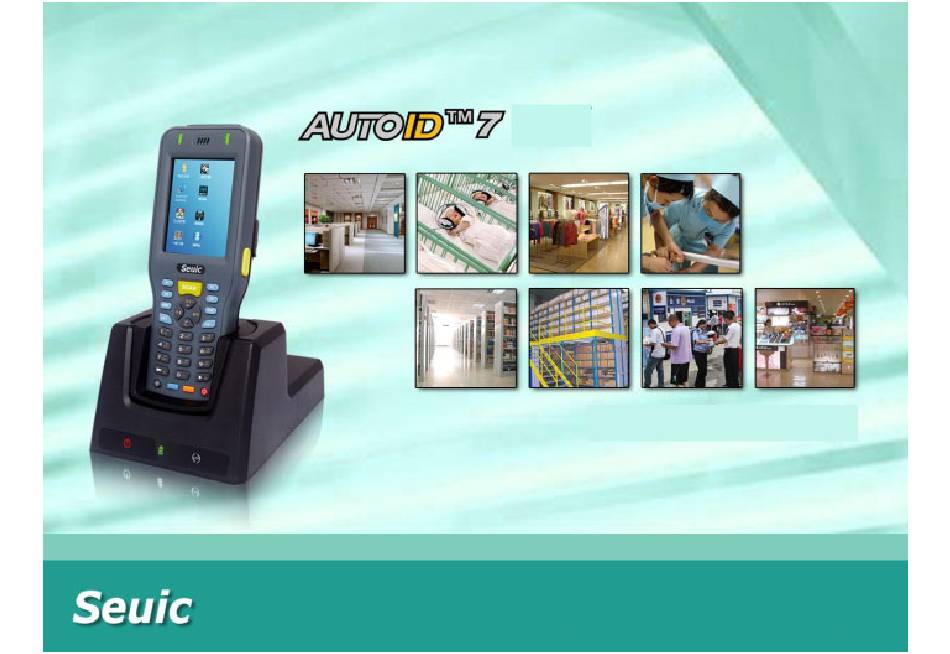

  • Page 1 Series...
  • Page 2 Catalogue  Basic function  Appearance introduction  Input method  Charging mode  Use of application center  Data collection  1D Scanner  2D Scanner  Wireless communication  WIFI  IR  Bluetooth...

  • Page 3: Basic Function

    Basic function...
  • Page 4 Appearance function Scanner Hand band install position RS232 USB1.1 High-decibel Charge speaker interface Battery compartment Please fasten the battery cover when using Battery cover lock...
  • Page 5 Hard keyboard introduction Scan key Definition key Direction keys With the blue function key to adjust the volume and screen Enter brightness Case switch Delete key Power key Backlight switch Blue function key Orange function...
  • Page 6 Hard keyboard introduction 1.Restart :data in RAM is lost, but the install won’t be lost Press the three keys together and then release. You can restart the machine. Any one of the side keys 2. Recover the device to default setting:all the programs and data will be cleared except the data on user’s memory space.
  • Page 7 3.Use of orange key The key is an input method switch key, press the orange function key, enter the text input Before pressing After pressing the After pressing 1 After pressing 2 the orange key...
  • Page 8 Hard keyboard 3、Blue function key usage The key function is Fn, press blue key and then press 1,run F1. Use the arrow keys with the left and right key to adjust the volume up and down keys to adjust the screen Fn setting ：Click into Set-System, click Pressing F1 will execute barcode Blank means no hotkey...
  • Page 9 Input 1、Input There are three input methods,such as keyboard\soft keyboard\hard keyboard...
  • Page 10 Battery indicator and charging 1、Indicator Full Not full, double click the icon to display the power Low power Charging 2、Charging methods End plug charging charging time：2-3h charging time：2-3h Base charging Portable charger charging time：4-5h...
  • Page 11 3、Cradle introduction When the PDA is being charged, PDA’s red light means charging, green light means full. When the battery is being charged in cradle compartment, the middle light will turn the red to green light. Attention: 1.The three light-emitting diodes in cradle from left to right are power entry、...
  • Page 12 AppCenter Open the AppCenter ( path: Start-Programs- AppCenter ) You can set the AppCenter. Default password is " seuic " Enter into Enter the Software authority management password management Modify the Set boot from setting password the start Display the opened...

  • Page 13: Data Capture

    Data capture...
  • Page 14 1D Scanner Settings Click this will close the 1D scanner Hide the 1D scanner...
  • Page 15 1D Scanner Setting barcode type Suggest not modify...
  • Page 16 1D Scanner Set remind mode Set barcode show mode Set run program at startup...
  • Page 17 1D Scanner(Red light)
  • Page 18 1D Scanner(Red light) Settings Click this will close the 1D scanner Hide the 1D scanner...
  • Page 19 1D Scanner(Red light) Setting barcode type Suggest not modify Restore scanner factory Settings...
  • Page 20 1D Scanner(Red light) Set remind mode Set barcode show mode Set run program at startup...
  • Page 21 2D Scanner...
  • Page 22 2D Scanner Enter into “AppCenter”,click Start the 2D scanner...
  • Page 23 2D Scanner Clean the barcode information in the screen Image capture function can Exit capture black and white pictures Recover to default settings Save the modified settings Attention: each time modify Parameters, click saving Hide the 2D software...
  • Page 24 2D Scanner Set automatic and auto scan delay Set the time interval If you want to output the code to txt or excel, you need to choose Clipboard or Simulate Key...
  • Page 25 2D Scanner Set scaner light 1、 general select Both aimer And LED 、 If code is white, background is black. Please select Enable Colour Reverse Scan mode ：general 3、 " standard ". 6、Barcode 4、Set the scan prompt type open or close 5、Display code 7、Barcode...

  • Page 26: Wireless Communication

    Wireless communication...
  • Page 27 Wireless technical parameters WLAN--------WiFi standard： IEEE802.11b/g Frequency range: 2.4/2.5GHz safety： WEP、TKIP、LEAP、PEAP、EAP-TLS 、WPA、WPA2、AES WPAN--------Bluetooth V2.0+EDR Data rate：3Mbps frequency：2.4GHz standard：IEEE802.15.1...
  • Page 28 WLAN ---- WIFI...
  • Page 29 WiFi 1、Open hardware：Enter into “wireless manager”， if display “Disable”, means hardware is open.If display “Enable”, click it to open the hardware. Attention：You don’t need to do the operation next time you start the PDA.
  • Page 30 WiFi 2、Set IP address：If you need to set fixed IP,enter into “Control Panel” ， click “Network and Dial-up connections”, click “WIFI”. Attention：You don’t need to do the operation next time you start the PDA.
  • Page 31 WiFi 3、Connect a network：Double click the red circle, click “Wireless information” . Double click the network you want to Connect, and set the net parameters Connect a network ok...
  • Page 32 WiFi 4、Wi-Fi Manager ：click red circle icon ,start the Wifi manager Display the current state and parameters WIFI icon means： No WiFi module。 WIFI module disable No AP single around There is single around,but not connection PDA has connected with AP...
  • Page 33 WiFi 5、Ping test：click“ping” ，click “Start” will do the Ping operation. The more data lost,the worse performance single strength Attention: Some gateway and AP can’t allow to ping operation.
  • Page 34 WiFi 6、WIFI Config ：Set Power Save/Roam Trigger/Roam Delta/Roam Period Power Save:Set power save mode,the more power saving,the worse performance Roam Trigger:Setting roaming switching values...
  • Page 35 Infrared (power not control in old version) 1、Click“ ”-“Run”，input “ cechat”，click OK 2、Serial Port select COM1,click “file” -“settings”， set the communication protocol. The Baud Rate:1200 or2400.The port communication protocolmust the same as the IR device settings.As the below figure Set parameters as you need...
  • Page 36 Infrared( power control in new version The latest infrared machine is controlled by power in receiving data. So we need two infrared machines to test infrared communication ,which need users to write a demo programe. The development method of infrared is as follows on():open the power control off():close the power control SetRecvState():set infrared to receive...

  • Page 37: Bluetooth Function

    Bluetooth function 1、Open hardware：Enter into “Wireless Manager”， if display Disable”, means hardware is open.If display “Enable”, click it to open the hardware. Attention：You don’t need to do the operation next time you start the PDA.
  • Page 38 Bluetooth function 2、Enter into Windows file, start the PrintUI software, just as the right Figure. Attention: just start one PrintUI...
  • Page 39 Bluetooth function 3、Connect other bluetooth device Click “Inquiry”, other bluetooth devices around will display in the text box.Select one bluetooth device,click OK...
  • Page 40 Bluetooth function 4、Connect bluetooth device You need to input the Select Channel number, as the right figure Connect successful...
  • Page 41 Bluetooth function 5、send and receive data： You can send and receive data by using cechat. You should copy the cechat software into PDA,then start cechat.Serial Port select COM3.Then you can send and receive data. Or:by below pathway: Start-run input”cechat”,then enter.
  • Page 42 Start Bluetooth in AppCenter 1.Enter into application management, choose the third party program management. 2.Click “add” button. 3.Look for “printui”in windows files, click ok. 4.Choose “show on the desk”, click ok.
  • Page 43 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 44 Thank you! Tel：86-25-52261298 Fax：86-25-52261298-8858 URL：www.seuic.com Hotline：400-777-0876 Service mailbox：AUTOID6@seuic.com Postal：210006 Address： No 23. Wenzhu Road. Yuhuatai District. Nanjing. China(210012) Technical support mail：zoujianjun@seuic.com...
