Omron RJ333N-A Operation Manual

Remocon Engine Starter operation manual
Configuration
１

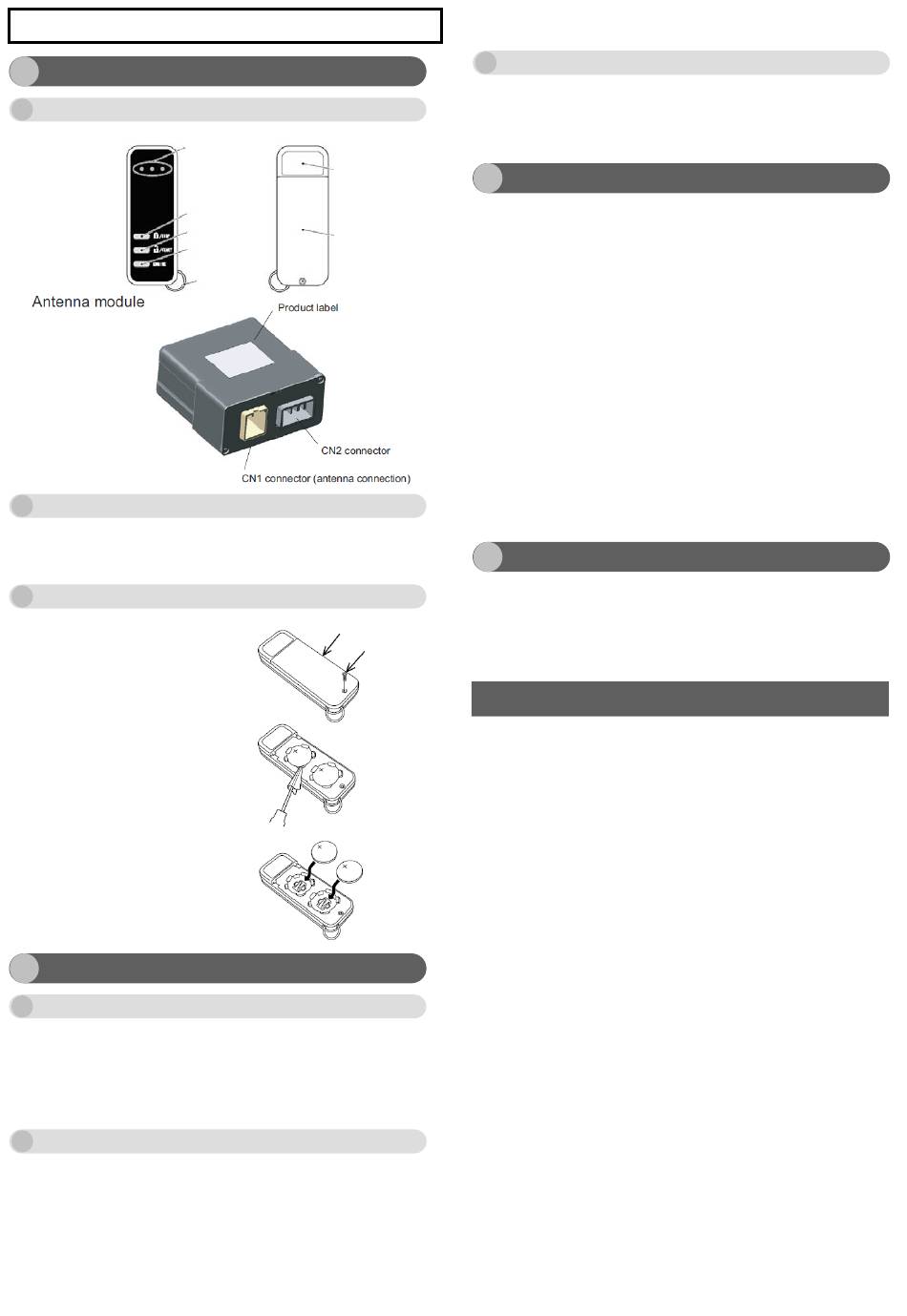

Parts names
Key fob
Battery replacement
We recommend that you replace the batteries after one year's use as a guide.
Batteries: CR2032 x 2
How to replace the batteries
1. Remove the battery cover
Remove the screw and
the battery cover.
2. Take out the old batteries
Insert the flathead screw driver
which put cloth and take out the
old batteries.
3. Replace the new batteries
Insert the new batteries (CR2032)
with the positive ( + ) side facing up.
4. Place the battery cover
Place the battery cover and
fasten the screw.
How to use
２
Remote engine start
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Unlock/Start button.
(The vehicle engine will start.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
Remote engine stop
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Lock/Stop button.
(The vehicle engine will stop.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
LED indicators
Product
label
Lock/Stop
button
Unlock/Start
button
Battery
Engine control cover
button
Ring
Battery cover
Screw
Lithium batteries
(CR2032 x 2)
Door lock / unlock
・Pressing the Lock/Stop button, the vehicle door will be locked.
・Pressing the Unlock/Start button, the vehicle door will be unlocked.
Main specification
３
Key fob
Transmission frequency 902 MHz～928MHz band
Transmission power < 20mW
Antenna chip antenna
Transmission frequency 315 MHz
Transmission power < 75.6dBuV/m @3m
Antenna PWB pattern antenna
Switches Lock/Stop, Unlock/Start, Engine control
Link state acknowledgment LED indicators
Battery Lithium battery (CR2032 x 2)
-20 ℃ to +60 ℃ (-4° F to 140° F)
Operation temperature range
Dimensions 81.5 mm x 30 mm x 13 mm ( not including protrusion)
Weight 37 g
Antenna module
Transmission frequency 902 MHz～928MHz band
Transmission power < 20mW
Power supply 4.2 V
Current consumption 3 mA (for receiving)
Antenna 1/4 lambda printed antenna
-30 ℃ to +85 ℃ (-22° F to 185° F)
Operation temperature range
Dimensions 52 mm x 25 mm x 52 mm
Weight 35 g
After sales service
４
For after sales service, contact :
OMRON Automotive Electronics Co. Ltd.
6368 nenjyozaka, okusa
Komaki, Aichi 485-0802 JAPAN
URL: http://www.oae.omron.co.jp
Regulatory compliance
FCC / IC CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Tout changement ou toute modification effectués par l'utilisateur et dont la
conformité n'est pas expressément approvée par l'organisme responsable de
sa conformité peut entraîner l'annulation de droit de cet utilisateur de se servir
de l'équipment.
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
This device complies with part 15 of FCC Rules and Industry Canada's
licence-exempt RSSs. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme à la partie 15 des règles de la FCC et aux
normes des CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2)l'appareil doit accepter tout
brouillage subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
