Elpas 5-PBB00433 User Manual

Elpa s3 Pe rsonne l I de nt it y Ba dge
P/Ns:
5-PBB00433, 5-PBB00433-1, 5-PBB00433-2, 5-PBB00433-3, 5-PBB00433-5, 5-PBB00433-7, 5-
PBB00433-E, 5-PBB00433-G, 5-PBB00433-K, 5-PBB01433-E
Introduction
This Guide provides basic instructions for the successful usage of the Personnel Identity Badge
CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its
publication. Nonetheless, all information contained in this document is subject to change at any time without prior notice. Any modifications to this equipment
without prior written consent of Elpas Solutions Ltd. will void all warranties including the pertinent regulatory certifications and as such revoke your authority to
operate this product. Furthermore unauthorized modifications may also result in damage to this device and may cause a safety hazard to the users
Product Description

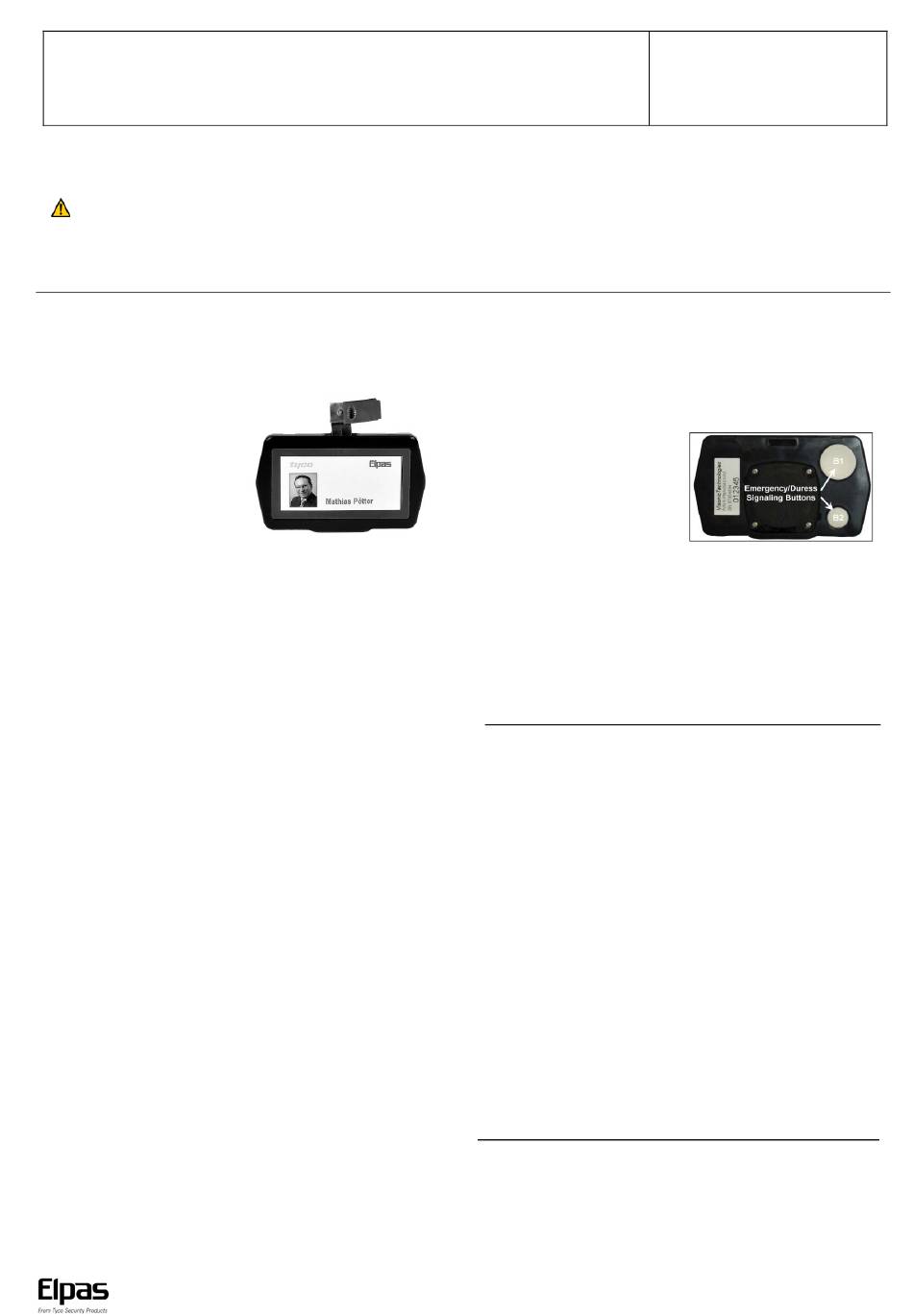

The Elpas Personnel Identity Badge is a supervised triple-tech, 2-
way, Active RFID Tag that provides wireless real-time monitoring
and tracking of workers that may be at-risk of workplace related
attacks or injuries.
The unique form factor of the
badge allows it to serve as a
photo ID personnel badge. When
you insert it into
corresponding card holder (sold
separately), you can bundle the
badge with ISO standard
credentials and wear it horizontally (landscape format) or
vertically (portrait format). Additionally, the badge can also serve
as a proximity ID key with legacy access control installations.
The badge emits EMI safe RF (433MHz) receives IR (800nm)
data messages and then, and receives Ack (Acknowledge) RF
messages that confirm transmission success. This data enables
real-time sub-room level location awareness of the protected
employee, which Elpas Safety, Security & Visibility Solutions or
other management and building access control systems can use.
The badge also features dual call-button duress alerting and an
onboard LF (125 KHz) receiver that enables instantaneous near-
exit location detection for staff/patient/guest escort to administer
procedures in addition to triggering near-exit access control alert
response protocols.
The Personnel Identity Badge is IP66 rated, cleanable with
alcohol based disinfectants and is powered by a field-replaceable
.
lithium battery
.
its
Supported Event Transmissions
Personnel Identity
Motionless, Exit from LF and two discrete Button Press supervision
events; designated B1 & B2:
Button Press Events
Upon a button press, an RF
message is transmitted (about
1ms in duration) and receives
an RF Ack message when the
system receives
transmission. Without Ack, the
badge retries to transmit four more times, 50ms apart prior to
deactivation B1=1 and B2=1.
When the buttons are released, B1=0 and B2=0. Another RF
message is transmitted until it receives the Ack message or tries
five more times. In the steady state (no button press / button
release) B1=0 and B2=0.
IMPORTANT: The badge does not support the transmission of two
simultaneous button press supervision events.
Event Transmission Rates in LF Zones
Moving Badge
LF Response Time: Onboard LF receiver polls every 250ms to
check if the badge is in an LF zone.
Transmission Rate: One RF supervision transmission (about 1ms
in duration). If does not receive Ack transmission, retries four times,
50ms apart.
Transmitted Message Type: RF Data Message includes ID code of
LF Beacon. Motion bit, M=1.
Motionless Badge
LF Response Time: Onboard LF receiver polls every 250ms to
check if the badge is in an LF zone
Transmission Rate: One RF supervision transmission (about 1ms
in duration). If does not receive Ack transmission, retries four times,
50ms apart.
Transmitted Message Type: RF Data Message includes ID code of
LF Beacon. Motion bit, M=0
.
www.elpas.com
User Guide
.
Badges supports LF, Battery,
the
Motion,
Page 1 of 4
V3/Jan 2016
