Summary of Contents for Endeavor Holbeck

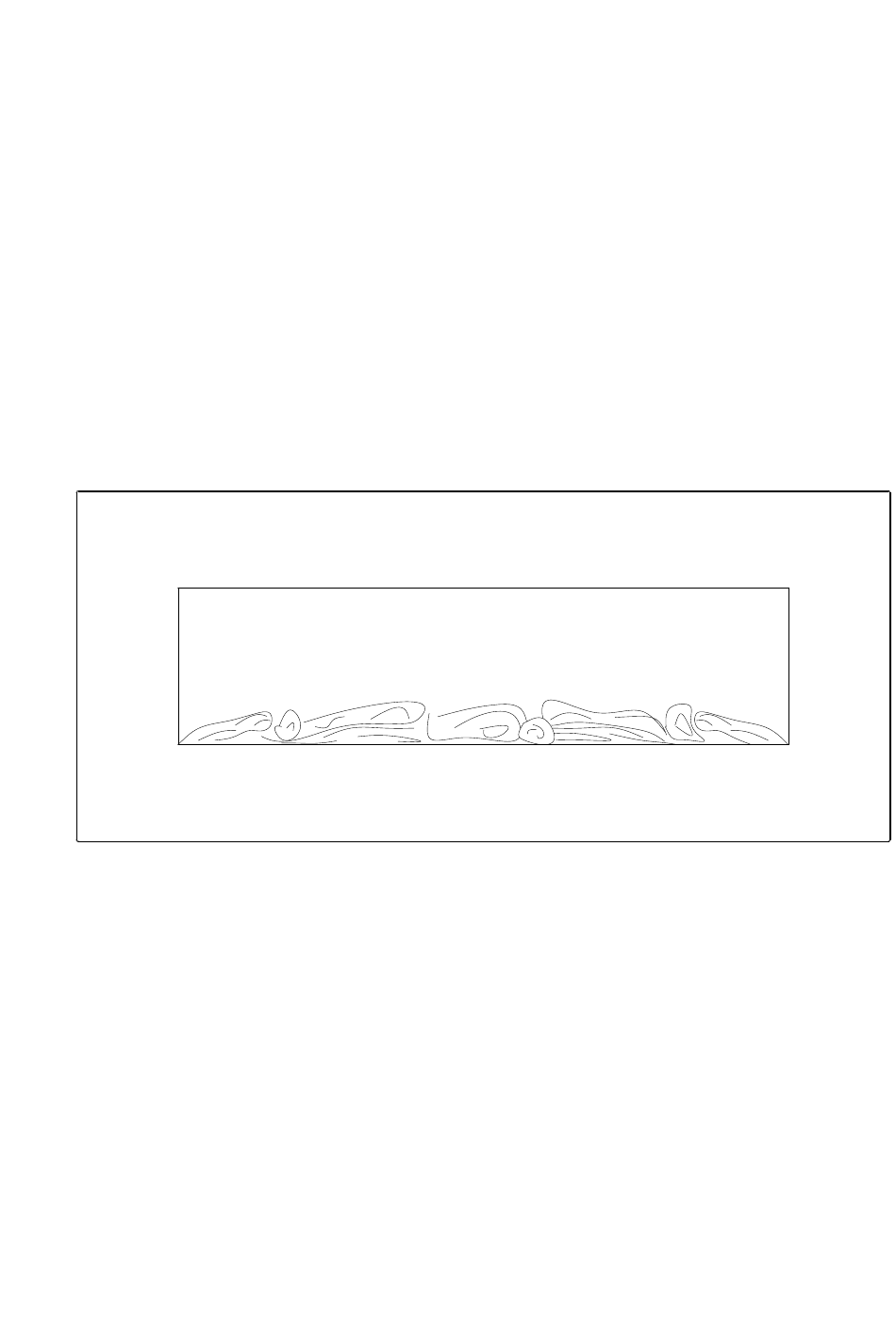

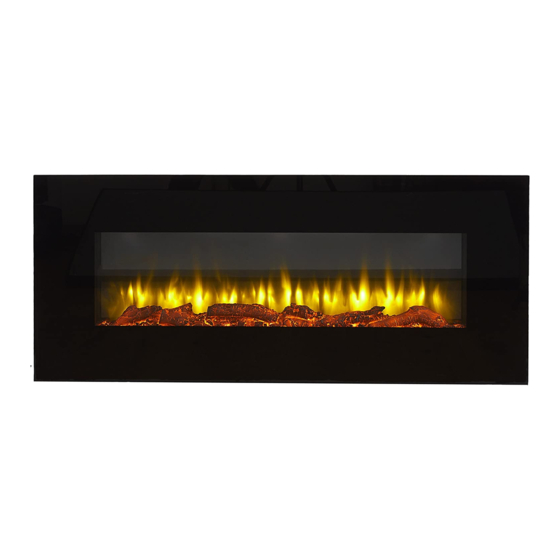

- Page 1 Wall Mounted Electric Fire Model No. E129R/E139R INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference.
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································1 2. Technical Specifications ··················································································3 3. Parts and Hardware ························································································4 4. Appliance Dimensions ·····················································································6 5. Installation Instructions ··················································································6 6. Operating Instructions ····················································································9 6a. Manual Control Panel ············································································ 10 6b. Remote Controls ···················································································· 11 7. Maintenance ································································································ 17 8. -
Page 3: Important Safety Information
1 . IMPORTANT SAFETY INFO RMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 or plug being 13A BS1363A approved. 1.9 If the power cord is damaged, it must be repaired by the manufacturer, its authorised service centre or professional person. 1.10 The meaning of figure in marking is DO NOT COVER. Warning: in order to avoid overheating, do not allow the appliance to be covered or let the air inlet/outlet become obstructed.
- Page 5 physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 1.15 Children and vulnerable people must be supervised at all times when using this appliance, as some parts can become very hot and cause burns.
-
Page 6: Technical Specifications
2. TECHNICAL SPECIFICAT ION S Model No.: E129R Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 18W (LED 14W + Motor for flame 4W) Power for Moodlight: DC12V, 1W, 0.08A Heat Output: Nominal heat output (Pnom): 2KW Minimum heat output(indicative) (Pmin): 1KW Maximum continuous heat output (Pmax): 2KW Auxiliary Electricity Consumption:... -
Page 7: Parts And Hardware
Type of heat output / room temperature control Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other Control Options Room temperature control, with presence detection... - Page 8 Firebox (1) Wall Mount Bracket ( 1 ) NOTE: The wall mount bracket is attached to the back of the fire by two screws. Instruction (1) Plastic Wall Plugφ8*40 (6) AAA Battery (2) Remote Handset (1) Screw ST5*40 (6) Screw ST4*10 (2)
-
Page 9: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm 5. INSTALLATION INSTRU CTIONS Tools Required A hammer drill, hammer and a screw driver will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. - Page 10 5.2 The appliance should be connected to an earthed electrical outlet and it must be easily accessible to allow disconnection. Minimum Clearance to Combustibles Sides························ 200mm Floor ························ 400mm Top ·························· 200mm Back ···························· 0mm Front ······················· 1 meter Installing the Appliance 5.3 Unscrew the wall mounting bracket rom the back of firebox and keep the three screws.
- Page 11 5.4 Take away the bracket and then drill 6pcs Φ8 holes in the wall. Tap the plastic wall plugs into the holes. If the wall is solid wood, it is not necessary to drill the holes or use the plastic wall plugs. Then fix the bracket by the ST5X40 screws.
-
Page 12: Operating Instructions
5.5a For the white model with pebble effect, place pebbles on fuel bed as desired. 5.6 Hang the flat panel glass on the firebox, and secure it with 2pcs ST4X10 screws. 6. OPERATING INSTRUCTIO NS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. - Page 13 WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can cause the outlet to overheat.
-
Page 14: 6A. Manual Control Panel
6 a. MANUAL CONT RO L PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the lower right corner of the appliance. 6a.2 Press “LIGHTS ON/OFF”... -
Page 15: 6B. Remote Controls
6 b. REMOTE CONTROLS NOTE: This is thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 16 6b.2 Press to turn on the flame effect, turn off flame effect and heater when in normal mode. 6b.3 Press to turn on/off the flame effect After Day/Time set up under daily and weekly timer mode. Flame Effect 6b.4 Press to enter the flame effect adjustment screen.
- Page 17 6b.11 Press the ‘+’ and ‘-’ button to adjust the setting temperature from 17℃ to 25℃ by 2 intervals. 6b.12 Press button to turn heat on/off, ON or OFF will show at the lower of the screen. NOTE: It is normal for the fan heater to stop running for periods of time.
- Page 18 6b.16 Pressing the ‘+’ and ‘-’ button will adjust the number. • Time: 24-hour system • Select your comfortable temperature from 15-25℃. • Temperature unit: ℃、℉ Daily Timer Heating 6b.17 The following are preset heating periods, which can be altered if desired. 06:00 until 08:30 17:00 until 22:00 until...
- Page 19 6b.22 If heating needs to be turned off, it will be necessary to go back to the Normal Mode to turn off. Week Timer Heating 6b.23 The following are preset heating periods, which can be altered if desired. From Monday to Friday 06:00 until 08:30 17:00 until 22:00 From Saturday to Sunday...
- Page 20 • Press the to set the heating time for the selected day(s) and return to the week line. • Hold for 3s or wait for 10s to save and exit the heating time period setting. 6b.26 Press , ‘←’ and ‘→’ to check your week timer settings.
- Page 21 6b.32 When the transmitter detects a rapid drop in room temperature, it will be judged as a window open, the warning icon will be displayed and the heating will be turned off automatically. 6b.33 After the indoor temperature has risen or a manual override of the warning (by operating remote control) has been done, the fire will return to normal working state.
-
Page 22: Maintenance
operation. The E.S. Control can only be re-set after the appliance has cooled down, and the appliance has been reset. Re-setting of the E.S. Control proceeds is as follows: 6b.37 Switch off the appliance (Manual On/Off switch) and leave it off for approximately 10-15 minutes. -
Page 23: Others
Cleaning the Fireplace Cleaning or polishing products are not recommended. Fingerprints or other marks on the front glass panel can be removed by a piece of soft, damp, lint-free cloth with a good quality household glass cleaner. The front glass panel should always be completely dried with a clean, lint-free cloth or paper towel. - Page 24 Hardware: Hardware: RF290B V1.2 Frequency: ASK/OOK 433.92MHZ RC01-041A02 Maximum transmit power: 10mW Software: 20170926 Hardware: RF290A-TX-V1.3 Software: RF290A_C_V0.6.0.hex Appliance Development Services Ltd Bakers Court, Hopper Hill Road, Scarborough, N. Yorkshire. YO11 3YS Tel 01723 583227 3.EF.202.05.051 A2...
