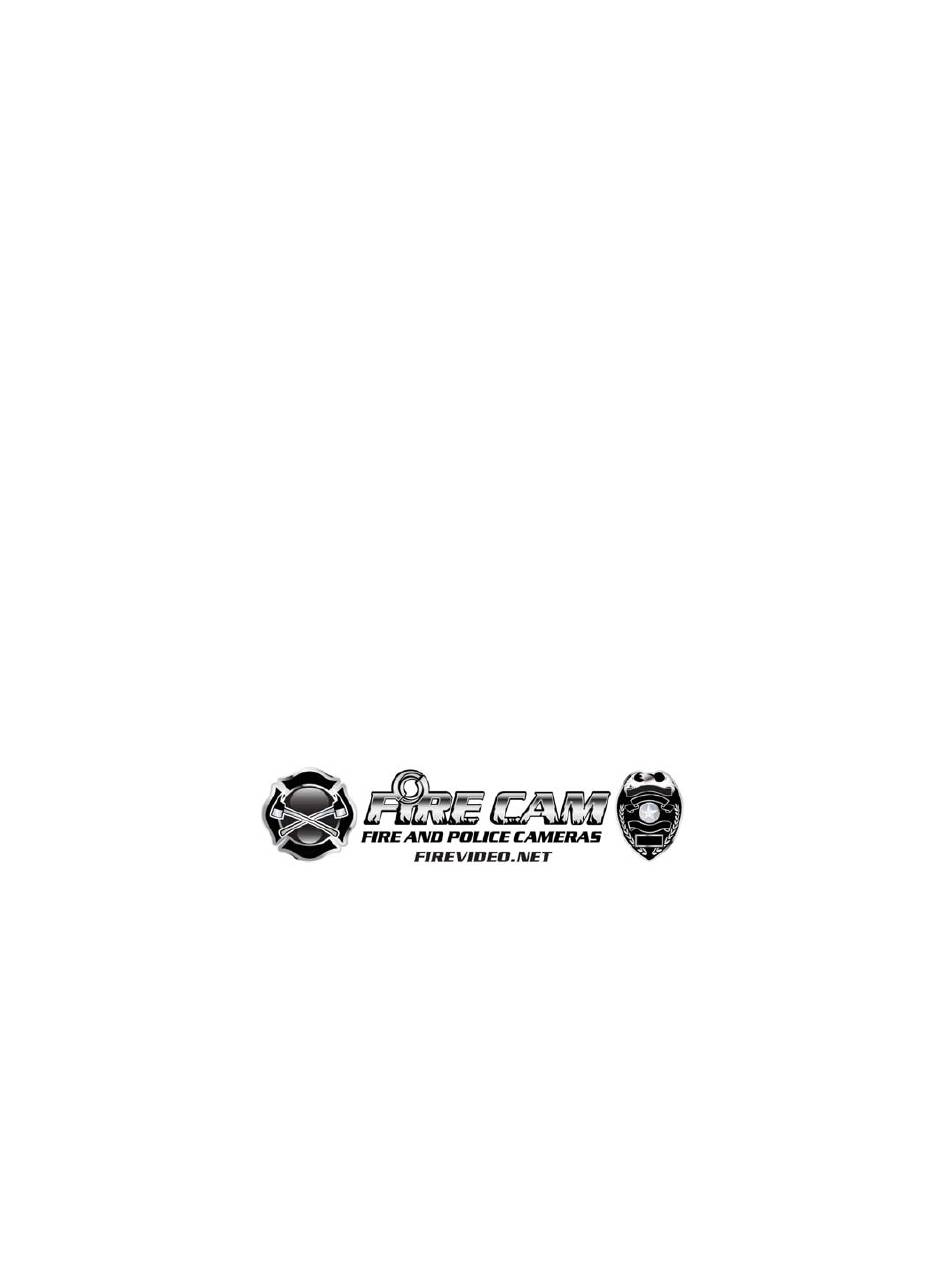

- Page 1 Oncall Body Worn Camera User Manual VL4 o | V.1.0...
-
Page 2: Table Of Contents
Contents GLOSSARY OF TERMS ONCALL BODY WORN CAMERA Features of the Oncall Body Worn Camera ------------------------------------------------- Wearing the Oncall Body Worn Camera ----------------------------------------------------- Removing the Mounting Clip ----------------------------------------------------------------- Changing Batteries --------------------------------------------------------------------------- Charging the Battery ------------------------------------------------------------------------- Connecting USB ------------------------------------------------------------------------------ Accessing Files ------------------------------------------------------------------------------- Camera Settings ------------------------------------------------------------------------------ Docking Station ------------------------------------------------------------------------------ Powering On and Off the Camera -----------------------------------------------------------... -
Page 3: Oncall Body Worn Camera
O O NCALL BODY WORN CAMERA Features of the Oncall Body Worn Camera 1. Power Button 2. Lens Cover 3. IR/White Light Button 4. Record / White Light LEDs 5. IR LED 6. Wi-Fi Radio Button 7. Battery 8. HDMI Port (Not Used) 9. -
Page 4: Wearing The Oncall Body Worn Camera
Wearing the Oncall Camera The mounting clip supplied with the camera can be rotated 360° to allow mounting on a variety of garments. It is recommended that the camera is mounted upright for best recording result. Examples of the flexibility of the mounting clip Removing the Mounting Clip 1. -
Page 5: Changing Batteries
Changing Batteries Push the battery release clip downwards Slide the battery out Slide the new battery in Push the battery release clip upwards to lock the battery in place. Charging the Battery Open the USB Port cover. Using the supplied USB cable connect the camera to either your PC’s USB port or the supplied USB Wall Charger. -
Page 6: Connecting Usb
Once the PC has recognized the camera, it will appear as a removable drive in the windows file explorer under "Computer" (Windows 7) or "This PC" (Windows 8 / 8.1 / 10) If the AutoPlay window appears, you may select "Open folder to view files". -
Page 7: Camera Settings
CAMERA SETTINGS Upon opening the "SETTING.TXT" file you will see the following: Settings can be adjusted by replacing the values next to each setting according to the parameters listed to the right. After changes are entered, you must save them to the camera by clicking on File in the menu bar at the top of the screen, then "Save". -
Page 8: Docking Station
Docking Station (optional) The docking station is a high-speed charger with two charging slots for Oncall camera batteries. Standard size and XL batteries can both be charged. The battery can be charged while connected to the camera or separate from the camera as pictured. Best practice is to dock the camera and battery while you are downloading files to the PC via USB cable. -
Page 9: Pre-Event Record Mode
Pre-Event Record Mode If Pre-Event Record mode is activated the camera will continuously record while powered on. When the Video Record button is pressed, the 3 minutes prior to without audio. the button press will be captured Taking a Photo Press Photo button once to take a Photo. -
Page 10: Fire Cam App
Fire Cam App from Playstore or iOS App store Hello, and welcome to how to setup your Oncall Camera with the Fire Cam app! The connection is rather simple. If you know how to connect to a WiFi with your phone it is the same process with the camera. - Page 11 Next slide down your task bar to show your settings enabled. Please push and hold the WiFi Button to show your WiFi settings When doing so, will bring up your WiFi Settings. If you notice, there is already a FIRE-CAM being discovered.
- Page 12 Next please input the credentials to access the camera via WiFi. The password will be 00000000. Once that is done please select connect. The Cameras WiFi light should go full blue, indicating that its connected. You will also see the phone has connected to the camera as well like below. Please open the Fire Cam application again, and congratulations! You have properly connected your Oncall Camera to your phone! Please Take a Moment to observe the Functions of the Lite Program on the next page.
- Page 13 ©Fire Cam 2015...
-
Page 14: Contact Information
For Questions and Support please contact us: Phone: 618-416-8390 Email: Support@FireCam.com Fire Cam is open Monday - Friday 9:00 a.m. to 5:00 p.m. CST. If there is no answer at the time to answer your call, please leave a detailed voice message or use the contact form on the left.
