INSTALLATION INSTRUCTIONS
Electric Fuel Pump Controller – Part Number 12003
Congratulations on your purchase of this fuel pump safety controller. Adding this controller to
your electric fuel pump wiring will greatly increase your safety in the event of an accident. After a
three second priming, the controller will not allow the pump to run if the engine is not running.
1-Controller Unit
1-T-Tap
1-Large crimp ring
2-Zip-ties
The Electric Fuel Pump Controller may be mounted in any location where the electrical
connections are easily accessible. Mounting in a weatherproof location is recommended. Use
two self-tapping screws, rivets, or zip-ties through the mounting tabs to securely mount the unit.
The Electric Fuel Pump Controller will energize the fuel pump for three seconds when power is
first applied. After these first three seconds, the fuel pump is energized only when the engine is

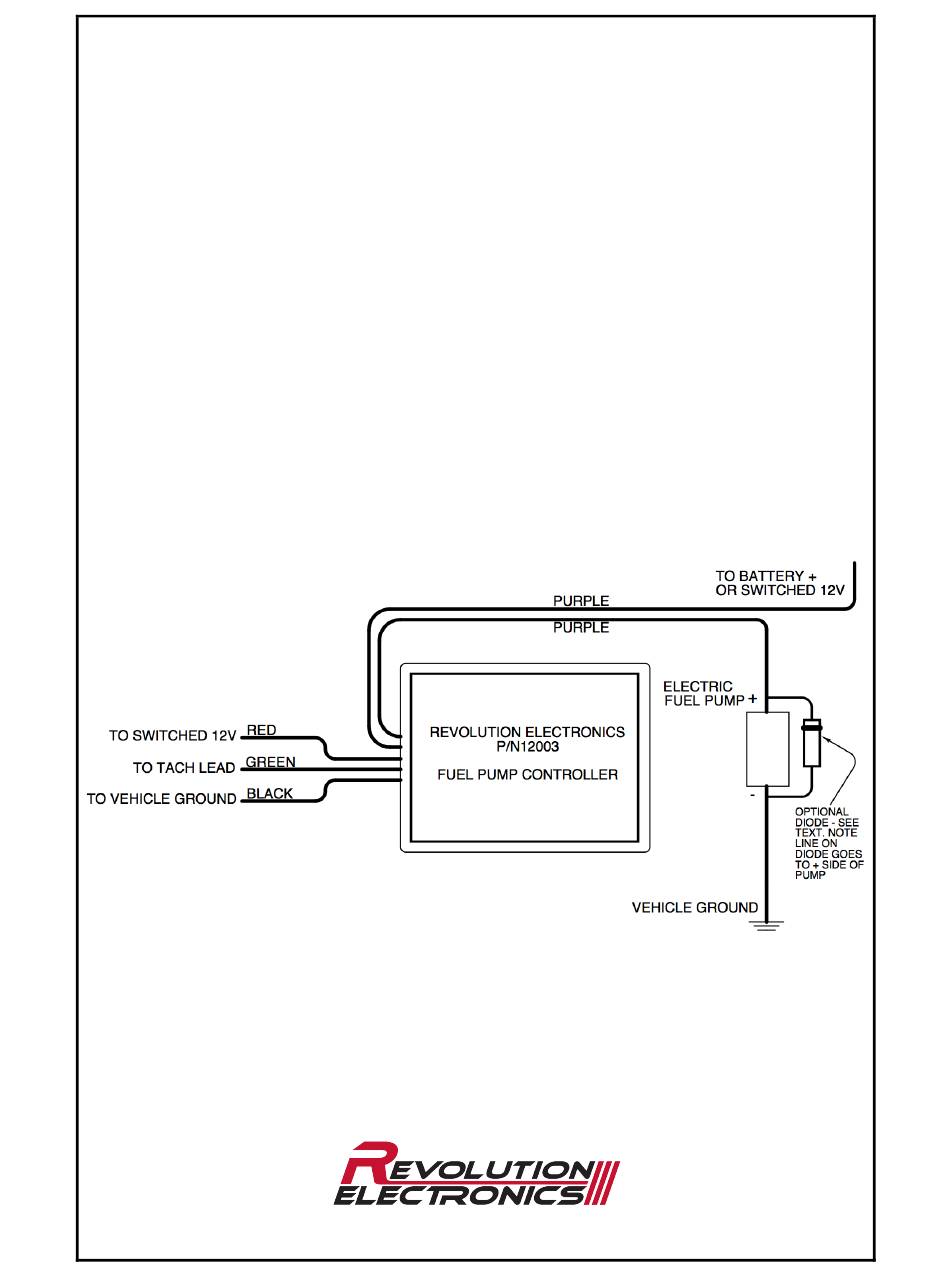

running. Figure 1 shows a basic schematic of how the circuit operates.
Red Wire -
Connect this wire to a switched power source. The supplied female connector
can be used to attach this wire to a switched 12v source on the fuse box. Less
than 1/10
Black Wire -
Connect this wire to a vehicle ground. The small ring terminal can be used to
attach this wire to a mounting bolt or another source of vehicle ground.

Parts Included in this Kit

Mounting the Unit

Electrical Connections

Figure 1
th
of an amp will be drawn from this wire.
www.revolutionelectronics.com
Cypress, California 90630
1-Small crimp ring
1-Male 1/4" Connector
1-Female 1/4" Connector
1-Diode
