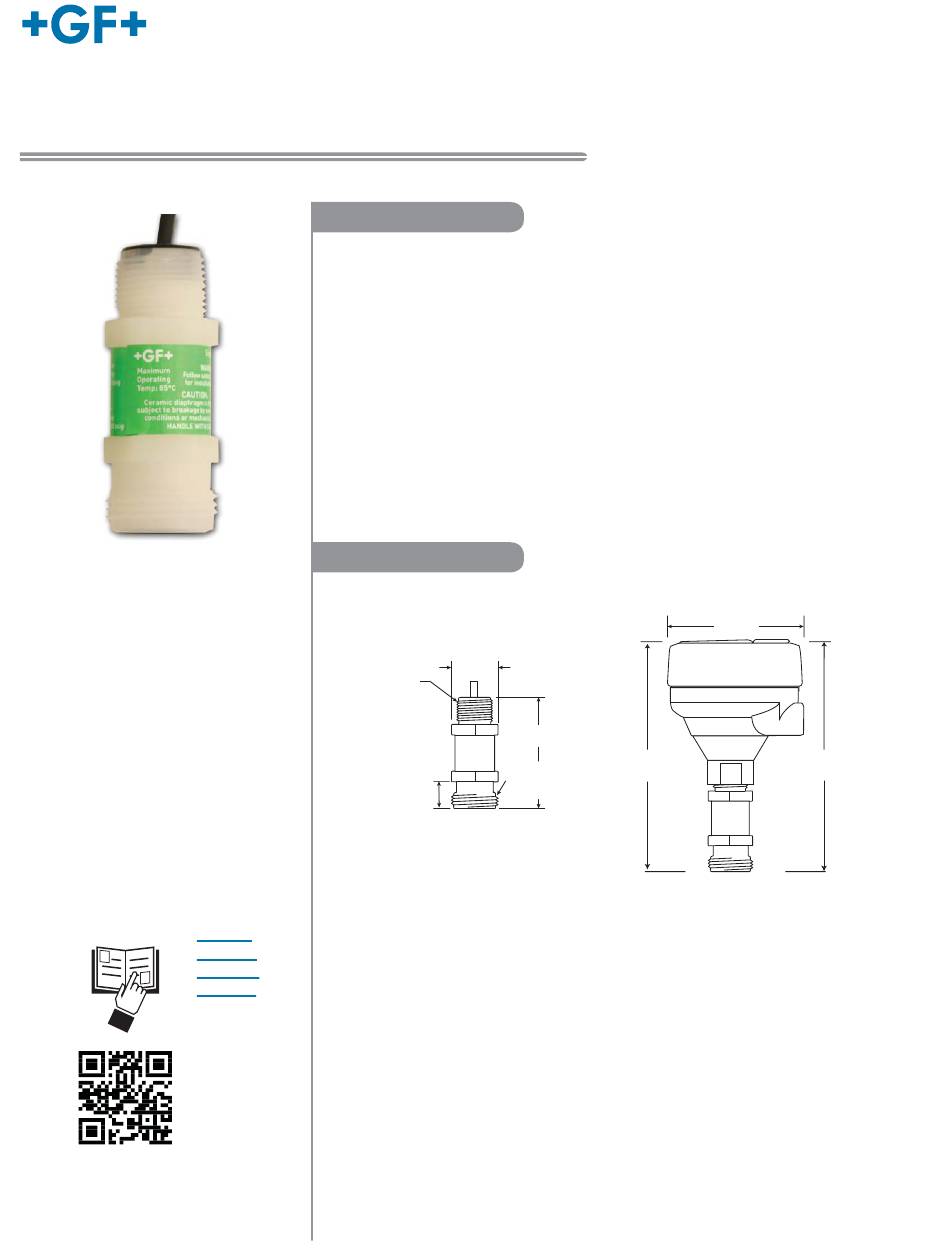

Signet 2450 Pressure Sensor
*3-2450.090-1*
3-2450.090-1 Rev. 13 03/18
•
English
•
Deutsch
•
Français
•
Español
Description

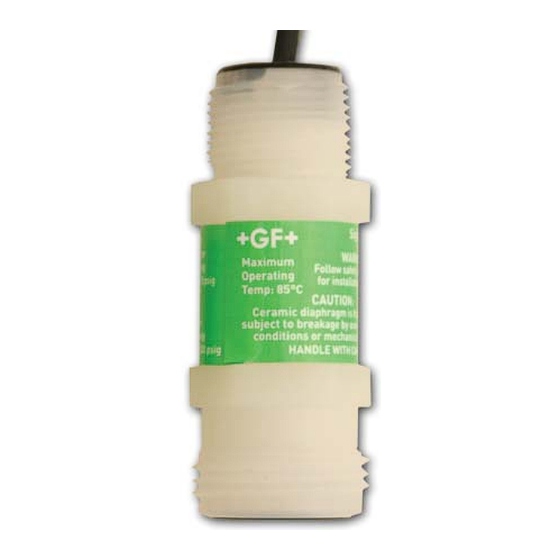

The 2450 Pressure Sensor has a one-piece injection molded PVDF body and
ceramic diaphragm for superior compatibility in corrosive liquids. These sensors are
available with Digital (S
L) output or fi eld-scaleable 4 to 20 mA output. Select from
3
three (3) pressure ranges for optimal measurement resolution. Built-in temperature
compensation provides outstanding accuracy over a wide operating range. Versions
with
/
in. union process connection are best suited for in-line installations.
1
2
Integral adapters (sold separately) may be used to create a compact assembly with fi eld
mount versions of the 9900 Transmitter.
Dimensions
34 mm
(1.34 in.)
¾ in.
NPT
1" G thread,
suitable for
19.1 mm
GF ½" (d20) unions
(0.75 in.)
3-2450-3X, -7X
Product Manual
81 mm
(3.18 in.)
97 mm (7.75 in.)
(8450)
3-8450, 3-9900-1
English
96 mm
(3.78 in.)
216.1 mm (8.5 in.)
(9900-1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Georg Fischer Signet 2450
Summary of Contents for Georg Fischer Signet 2450
- Page 1 English Signet 2450 Pressure Sensor *3-2450.090-1* 3-2450.090-1 Rev. 13 03/18 Product Manual Description The 2450 Pressure Sensor has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. These sensors are available with Digital (S L) output or fi...
-
Page 2: Warranty Information
Warranty Information Specifi cations Refer to your local Georg Fischer Sales offi ce for the most General Compatibility current warranty statement. Digital (S L) models ..8900, 9900, 9950 All warranty and non-warranty repairs being returned must 4 to 20 mA models .... PLC... -
Page 3: Installation
Specifi cations Installation Signet 2450 Pressure Sensors are gauge pressure sensors. Environmental Relative humidity ....0 to 95% Gauge pressure sensors measure the difference in pressure (Non-condensing) between the process on one side of a diaphragm and the Storage temperature..... -20 °C to 100 °C (-4 °F to 212 °F) atmospheric pressure on the opposite side of the diaphragm. - Page 4 Installation Installation Integral Assembly Sensor Modifi cation In-line Remote Assembly The optional 3-8052-1 Integral Junction box with ¾ in. process • Modify sensor part number 3-2450 per fi gure 1. connection offers a convenient terminal point to extend the 2450 •...
- Page 5 Wiring Digital (S L) wiring • All models of the 2450 provide Digital (S L) output when powered with 5 VDC. • Connecting the SHIELD to a direct earth ground may reduce electrical noise interference. • The maximum Digital (S L) cable length is dependent upon the instrument to which the sensor is connected.
- Page 6 4 to 20 mA Span Adjustment The 4 to 20 mA endpoint values are independent of one another and may be adjusted in the fi eld. For example, to reduce the 20 mA endpoint value from the maximum full scale limit set at the factory, but to allow the 4 mA endpoint to remain at 0 psig, perform only the steps listed below.
- Page 7 Notes 2450 Pressure Sensor...
-
Page 8: Ordering Information
Confi guration Tool Georg Fischer Signet LLC, 3401 Aero Jet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057 For Worldwide Sales and Service, visit our website: www.gfsignet.com • Or call (in the U.S.): (800) 854-4090 For the most up-to-date information, please refer to our website at www.gfsignet.com...
