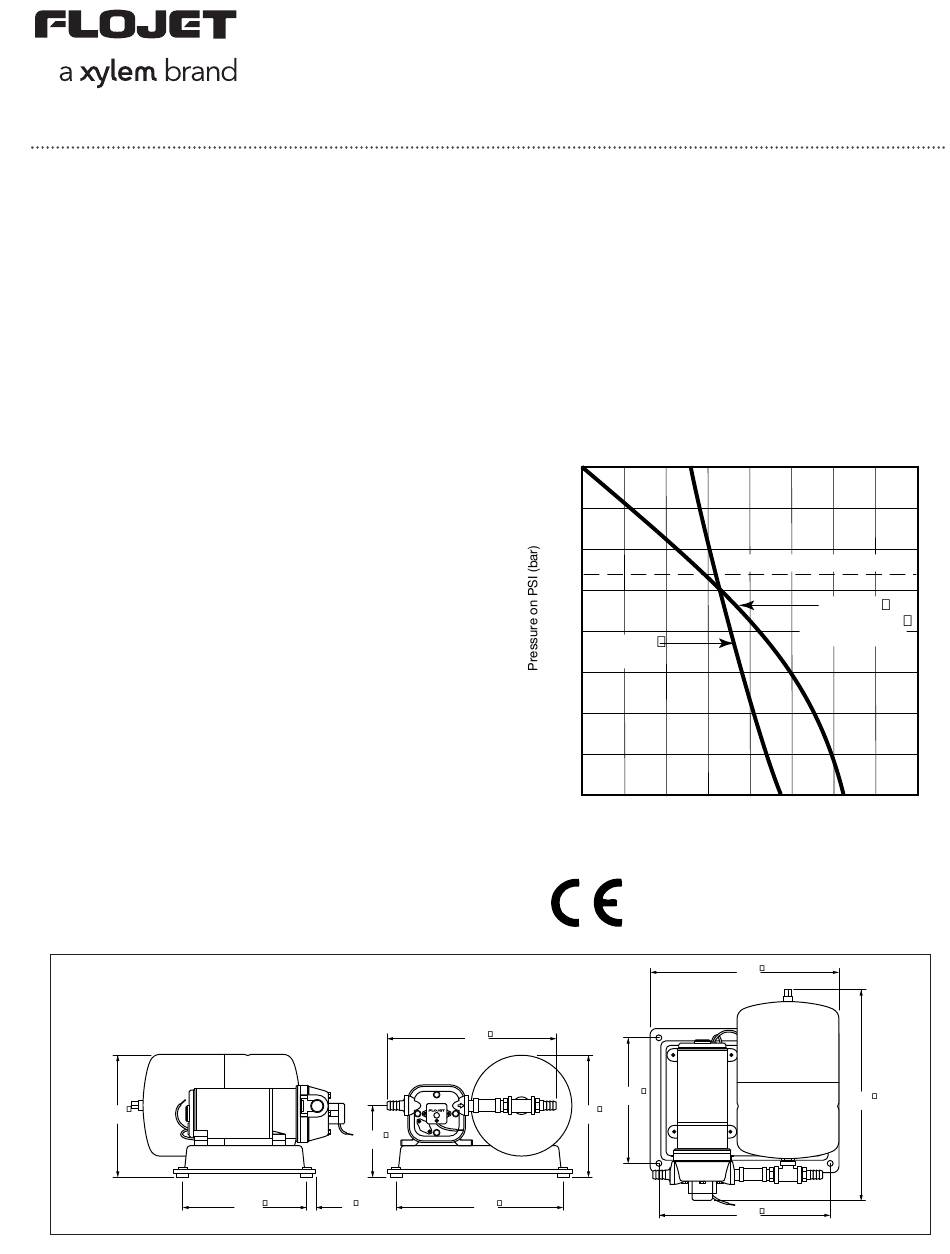

FLOJET 2840 Series Installation & Service Information

INSTALLATION & SERVICE INFORMATION
Description

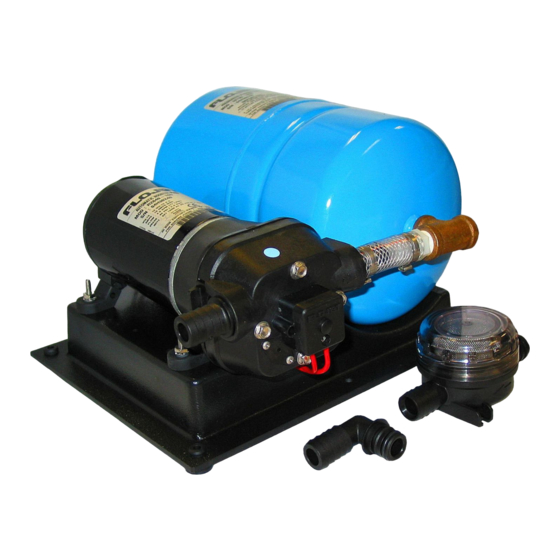

The FLOJET 2840 Series Water Booster System is designed to
provide steady water pressure and generous water flow. The
pump is fully automatic with a built-in switch and check valve to
maintain system pressure and will supply smooth water flow
from a trickle to full flow. Typically used in large yachts, motor
homes & bus conversions where high volume flow is required for
multiple fixtures and amenities (e.g. washing machine,
dishwasher, ice maker and water purifier).
PERFORMANCE SPECIFICATIONS
Pump
Motor
Priming ................Dry........................................................10 ft (3 M)
Wet.......................................................20 ft (6 M)
Flow Rate ..........Max...............................(-110) 3.5 GPM (13 LPM)
Max...............................(-120) 3.3 GPM (12 LPM)
Max...........................................4.5 GPM (Others)
Pressure Switch Off (-120) 35 PSI (2 bar); Others........40 PSI (2.8 bar)
On (-120) 22 PSI (1.5 bar); Others......27 PSI (1.9 bar)
Tank
Total Volume ....................................................1.1 gal. (4.1 It.)
Air Pressure Setting ......................................25 PSI (1.7 bar)
Note: The 12, 24 and 32 VDC models meet the USCG Electrical
Requirement (Title 33, Chapter I, Part 183, Subpart 1). All
pumphead wetted materials meet IAPMO TSC-14-90 and TSC
31- 90 for potable water.
Models are available in 12 and 24 Volt models, and are identified
by a prefix "R" and a CE mark on the label (i.e. R2840-100). Self
Declaration Of Conformance (SDOC) is available upon request.
Dimensional Drawing
Inches (Millimeters)
7 1/2
(191)
Max Amp Draw (A)
(-100) 10.0 @ 12 Vdc
(-110) 8.5 @ 12 Vdc
(-120) 7.0 @ 12 Vdc
(-300) 5.0 @ 24 Vdc
(-400) 3.8 @ 32 Vdc
(-000) 1.5 @115 Vac
4 3/16
(106)
7 13/16 1/2
(198) (13)
WATER BOOSTER SYSTEM
Product Data
Pump Design ..............................................Quad Diaphragm
Motor ...............................................Permanent Magnet TENV
Wetted Parts ......Diaphragm Material...................Santoprene
Check Valve Material..........................EPDM
Housing Material...................Polypropylene
Accumulator Tank Diaphragm Material.............................Butyl
Liner Material........................Polypropylene
Ports....................3/4" (19 mm) HB Inlet
...................1/2" (13 mm) HB Outlet
Net Weight ........2840-100 Type................8.8 Pounds (4 kgs)
2840-110 Type.............7.3 Pounds (3.3 kgs)
2840-120 Type.............6.9 Pounds (3.1 kgs)
40
(2.8)
35
(2.4)
30
(2.1)
25
(1.7)
20
Pump
(1.4)
Only
15
(1.0
10
(0.7)
5
(0.4)
0 1.0
(3.8)
10 1/4
(260)
7 13/16
(198)
7 1/2
(191)
10 1/4
(260)
2840 SERIES RV/MARINE
27 PSI Cut-In Pressure
Pump &
Fully Charged
2.0 3.0 4.0 5.0 6.0
(7.6) (11.4) (15.1) (18.9) (22.7)
Flow in GPM (LPM)
11 1/4
(286)
10 1/4
(260)
Tank
7.0 8.0
(26.5) (30.3)
12 7/8
(327)
