Super Walter W630 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

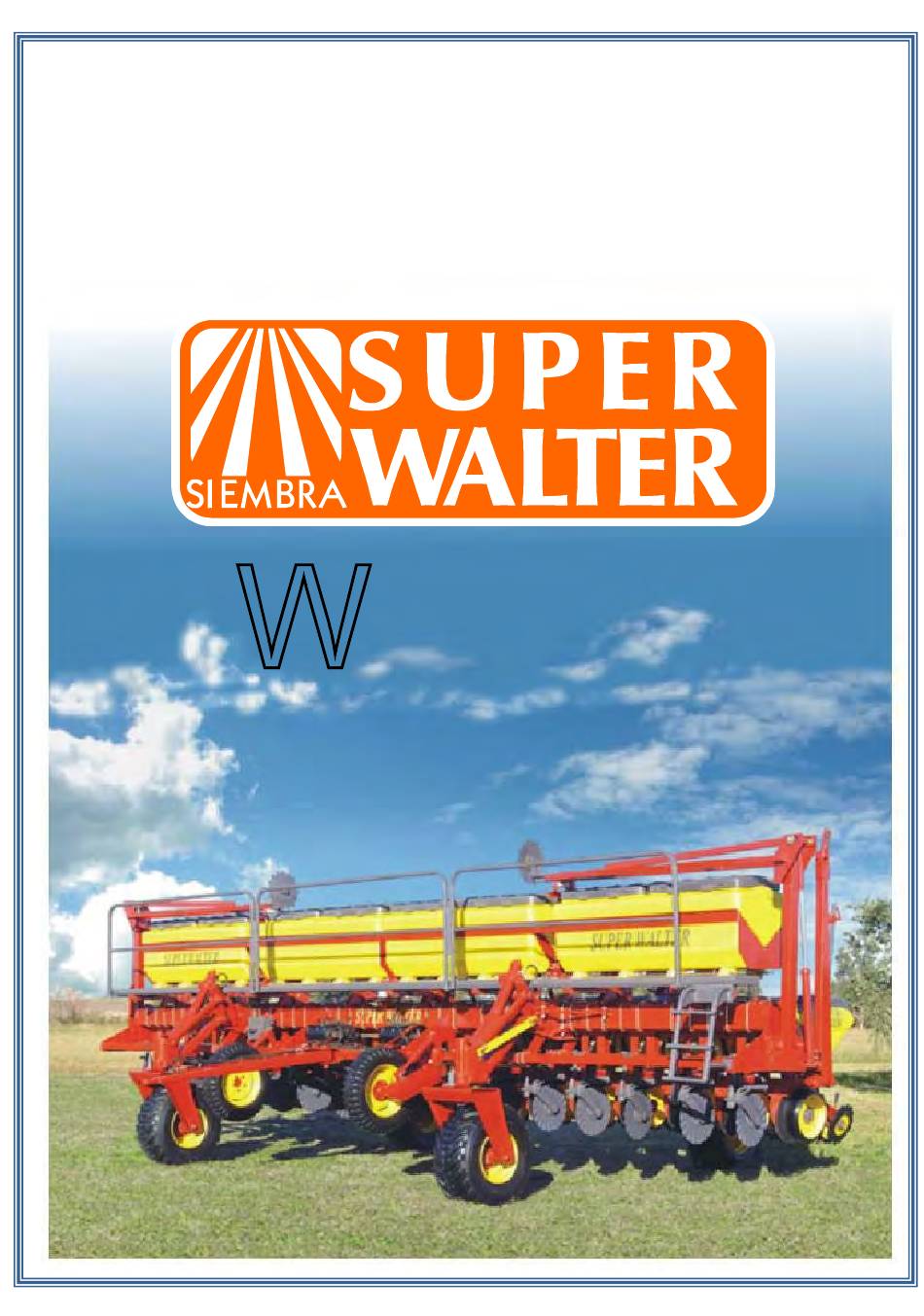

OPERATOR´S MANUAL
W
630

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W630 and is the answer not in the manual?

Questions and answers

Summary of Contents for Super Walter W630

  • Page 1 OPERATOR´S MANUAL...

  • Page 3: Table Of Contents

    INDEX Warranty………………………………….……………………………..Page 05 Introduction……………………………………………………………….Page 07 Safety...…………………………………………………………………...Page 09 Description Technical specifications of the planter……………………...……………Page 15 Description and calibration of the planter…….…………………….……Page 17 Tractor preparation……………………………………………………….Page 18 Transportation………………………………………….………………….Page19 Hook up of the planter for work………………………………………….Page 19 Planter settings……………………………………………………………Page 24 Planting unit………………………………………………………………Page 27 Variable distance between lines/furrows…………………………………Page 31 Seeding/planting seed distribution…….………………………………….Page 35 Fertilization……………………………………………………………….Page 42 Hydraulic system…………………………………………………………Page 47...

  • Page 5: Warranty

    Warranty BUFALO S.A WARRANTY ON NEW EQUIPMENTS Bufalo S.A. grants a warranty when selling new products to its dealers in order to guarantee that these products are free from manufacturing and material defects. However, this warranty will be void if the implement is subject to structural modifications or if the identification plate is eliminated.

  • Page 7: Introduction

    The Planter is designed and built to last and to bring users good performance if the instructions contained in this manual are properly followed. . In this manual users will find useful information on the W630 options and calibrations for perfect planting. The Board...

  • Page 9: Safety

    BUFALO S.A SAFETY Safety Messages All preventive safety warnings included in this manual show this sign. When you see this sign, please read the messages with attention since they refer to potential risks derived from handling the planter.  General Precautions Read this manual before using your planter in order to be better informed about how it works and therefore, reduce accident risks.
  • Page 10 The implement must be hitched only to the tractor’s drawbar. Hitching the implement to any other point may result in serious accidents. Under no circumstances should there be riders in the implement because of the danger entailed. Drive safely and slow down before braking or turning. Very large models require extreme precautions when turning since the implement takes most of any turning room available.
  • Page 11 To connect and disconnect the planter to tractor hydraulic connections, first stop the tractor engine and release any pressure in the hydraulic system. To release the pressure, turn on the valve controls in the tractor cab with the engine off. ...
  • Page 12 Safety Signs on your Planter Figure 1 shows your planter and points where safety signs are. Below you can find an explanation of each safety sign. WARNING A - Markers Fall These signs are warnings that state the need to stay away from the area where the markers may fall;...
  • Page 13 planter. It is very important to set the locks in every transportation movement. To work the locks must be taken off, to lower the planter. Figure 3 C - No riders on the implement frame. Warning (Figure 4) is fixed to the chassis and states the fall risk of transporting individuals.
  • Page 14 (Figure 12). Use grease of high quality (high molibdene content.) 25 Hs. Figure 12 BUFALO S.A. The following chart shows the main technical characteristics of different W630 planter models.

  • Page 15: Technical Specifications Of The Planter

    Planter Model (Lines) Features 6 - 8 7 - 9 8 - 10 10 - 12 10 - 14 12 - 16 1- Of the Tractor 70/80 80/90 90/100 90/110 100/120 120/140 Minimum power (CV) 1 (optional 2) Number of hydraulic tractor distributors Minimum 130 Hydraulic System Pressure (kg/cm²) 2- Of the Planter...
  • Page 16 10mm from point to point Distance between lines 70 cm – 52,5 cm DESCRIPTION AND CALIBRATION OF the W630 DV PLANTER This chapter explains the details of the planter you must know to make the proper adjustments for proper operation. (Figure 1).

  • Page 17: Description And Calibration Of The Planter

    Figure 1 Figure 3 Figure 2 1 Fertilizer hoppers 8 Covering- closing wheels 2 Seed hoppers 9 Hydraulic markers 3 Planting unit 10 Contact Drive wheel 4 Fertilizing unit 11 Planting gearbox 5 No-till cultivation discs 12 Fertilizing gearbox 6 Opener discs 13 Tow Hitch bar 7 Seed firmer 14 Transportation wheels...
  • Page 18 The required power for drag, in normal circumstances, may be inferior as mentioned, but it is required that the tractors can control the planter in complicated circumstances, such as: uneven surfaces, humid soils, and transportation in roads, etc. It is necessary to have enough hydraulic power and liquid flow. The minimum recommended pressure is of 130 kg/cm2.

  • Page 19: Hook Up Of The Planter For Work

    Transportation hitch bar settings: by a butterfly nut A this does not In an elevated position, the hitch bar is kept in its place allow it falling during work (figure 5). Work hitch bar settings: While at work, pins A and B keep it in position, (figure 6). For transportation, pin A is released, that will remain later in the support, and making the hitch bar pivot on pin B in set against the frame and assured with pin C.
  • Page 20 Hook up of the planter with the tractor. For transport purposes. Extreme caution when driving with the planter hooked up, especially in roads, and public spaces. The planter you have acquired, has a hitch bar designed for towing purposes through roads or routes.

  • Page 21: Transportation

    Make sure that the planter will not move during this operation, when releasing the work hitch bar. Chock the wheels, lock them, and perform this in a leveled, plain terrain, NEVER IN UNEVEN SURFACES. 5. Couple the tractor to the transportation hitch bar. To do so you must release the butterfly nut A in figure 5, this allows to lower the bar for its hook up.
  • Page 22 Hooking up the planter to the tractor. To work. In the same way we have indicated previously, we will start from the transport position and change to the working position, with the tractor still hooked up to the transportation hitch bar, and the planter in an elevated position.
  • Page 23 8. Check if the pressure of the turning brakes of the left wheels is correct. (Figure 13) this allows to move normally during work. Loosening the A square head set screw, shown in figure 12, you will ease turning of the wheels, adjusting it the turning friction will increase making it harder to turn.

  • Page 24: Planter Settings

    Planter settings. Adjustment of the position of the markers. The markers are positioned in factory according to the number of lines and separation between them and according to the model of the planter. In this way both markers, left and right will indicate the center line of the tractor´s next swath.
  • Page 25 To vary the intensity of the mark, loosen the bolts (B-Figure 11) and register the angle of attack of the disc. In a well prepared soil, a soft mark will be clearly visible; while in no-till seeding will require a more visible marking set up.
  • Page 26 If you will perform maintenance or registration tasks under the planter: Place all locks in the elevation cylinders and set correctly the frame support stands. The working pressure of the blade is obtained from a compression spring, this one can be adjusted with the nut E in figure 16.

  • Page 27: Planting Unit

    Do not force the limits of the compression spring; therefore damage could be done to the unit.  Position of the fertilizer tube: with the two bolts: E the position of the tube is adjusted, tightening one and loosening the other and vice versa, move the tube until it almost touches the surfsce of the disk, this is the correct way to deposit the fertilizer.
  • Page 28 Figure 19 Figure 20 To move from one point from the other, with the planter in a lifted position, it is only necessary to turn the spring extension axis tensor (B) with a wrench over its dented surface (C) this must be done one step at a time. Planting unit´s parallelograms The units are held by a system of floating parallelograms (Figure 20) these count with a adjustable stop point (D).
  • Page 29 Pressure of the seed pressing wheel The seed pressing wheels are made of semi-pneumatic rubber 1” x 8” and are located immediately behind the point where seed is dropped. It´s function is to press the seed accurately in the soil, and guarantee proper soil-to-seed contact, thus favoring seed emergence.
  • Page 30 Angle of work Seven angles of work are possible, that are selected by moving the lever (B-Figure 23) moving the lever backwards into either one of the four positions, according to the need. Neutral Position: position zero. It compacts the seeding line, creating a small ridge. Positive positions: points, +1, +2, +3, +4, +5.

  • Page 31: Variable Distance Between Lines/Furrows

    VARIABLE IN-ROW SPACING. The W630 Super Walter Planters are designed to plant at variable in-row spacing, from 70 to 52,5 centimeters. There are also models that can be set up in a separation of 100cm in the case of cotton seeding.
  • Page 32 Model: 10 rows at 70 cm of separation (B) or 12 rows at 52,5cm of separation (A) To change from 12 rows at 52,5cm to 10 rows at 70cm, you must remove two complete planting units marked with an X and move the ones marked with an O (figure 29).
  • Page 33 In addition to the information given in figures 27, 29, and 30, keep in mind that all the measurements and distances start from the center of the planter and measured outwards. The planting units that should be removed could be anyone, but we have chosen those marked with an X because these would be the ones that would need to be moved more.
  • Page 34 Modify the position of the fertilizer discs and the no-till coulter blades, according to the new units configuration. The discs and the coulter blades, corresponding to the eliminated planting units, must be removed from the planter, the sane should occur to the fertilizer hoses. The remaining fertilizer outlet must be closed with lids or caps shown as A in figure 33, there is no need to remove the feed cups.

  • Page 35: Seeding/Planting Seed Distribution

    SEEDING Seed distribution The planter is delivered with two sets of plates, chosen by the customer; other sets can be acquired according to the seeds to be planted. The following details must be kept in mind: Bases, seeding headers and accessories: ...
  • Page 36 Calibration of seed scrapers and star-shaped ejectors The triggers: E in figure 38 scrapes the seeds from the plate. If you use calibrated  seeds and the plate corresponds to the type and size of seed, these seed scrapers will avoid more than one grain per plate hole.
  • Page 37 Seed planting gearbox The W630 DV planter is equipped with 54 speed gearboxes, one or two according to the model; this is to obtain the desired planting rate. It works in oil bath, It´s capacity is of 4 liters of SAE 30 oil.
  • Page 38 CHART I...
  • Page 39 CHART II LEVER LEVER LEVER POSITION POSITION POSITION Important: Check the seer rated as follows: With the planter in a lifted position, turn manually the contact drive wheel 47 turns, and pick up the seeds from only one planting unit. Count the quantity of the grains and dived it by 100. The answer will be grains per meter.
  • Page 40 If you refer to the dosage in Kg/ha, you may perform the following checkup: With the planter in a lifted position, turn manually the contact drive wheel 47 turns, and pick up the seeds from only one planting unit. Weight the seeds and multiply it by 143 if you are planting at 70 cm between lines, and by 190,5 if you are planting at 52,5 centimeters.
  • Page 41 Contact drive wheel The driving wheel/s transmits movement to the planting and fertilizing units. The size of these tires is 6.00 x 16” and the recommended pressure is 30 Lbs. Keep in mind that if you change the tire diameter, the dosage will be harmfully affected. Height regulation Out of the production line in factory, the regulation is for normal working conditions.

  • Page 42: Fertilization

    FERTILIZATION Fertilization hoppers The w630 planter allows simple or double fertilization. Each hopper has two fertilization lines of feed cups. Inside the hopper the is a dividing plate that is used when double fertilization is applied, and is removed for simple fertilization, so all the capacity of the hopper can be used: A figure 43.
  • Page 43 To set the positions, clutch position the C shown in figure 45 until you notice that the levers D and E can move freely. According to the number of shift selected, set the lever E in the corresponding letter and place the D lever in the number. Set in place the C lever again in its un-clutched position.
  • Page 44 PHOSPHORUS Separation between Separation between Separation between lines 700mm lines 350mm lines 525mm Shift Kg/ha Kg/ha Kg/ha Kg/ha position Kg/ha Kg/ha between between between in line in line in line lines lines lines...
  • Page 45 CALCIUM SULPHATE Separation between Separation between Separation between lines 700mm lines 350mm lines 525mm Shift Kg/ha Kg/ha Kg/ha Kg/ha Kg/ha Kg/ha position between between between in line in line in line lines lines lines...
  • Page 46 AMMONIUM SULPHATE – MONO AMMONIUM PHOSPHATE – MIX OF BOTH (MONO AMMONIUN PHOSPHATE 60% - AMMONIUN SULPHATE 40%) Separation between Separation between Separation between lines 700mm lines 350mm lines 525mm Shift Kg/ha Kg/ha Kg/ha Kg/ha Kg/ha Kg/ha position between between between in line in line...

  • Page 47: Hydraulic System

    HYDRAULIC SYSTEM Set up for ONE COMMAND- W630 planter. The hydraulic system is activated by using only one command from the tractor. It´s connected by two hoses to the tractor. It has four hydraulic cylinders (1) for elevation and descent, with a proportional dividing and blocking valve (3).
  • Page 48 Set up for TWO COMMANDS W630 planter. Figure 47. The two command hydraulic system has four hoses to be connected to the tractor; and two to lift and lower the planter and to that actuate over the markers independently. Figure 47.

  • Page 49: Maintenance

    BUFALO S.A. MAINTENANCE OF THE W630 PLANTER MODELS PLANTER MAINTENANCE Apart from the periodic maintenance your planter requires, this section will detail any necessary part replacement the implement may need; the planter requires replacement of parts with natural wear such as disc openers, seed discs and fertilizer discs that are to be replaced when wear is excessive.

  • Page 50: Cares During The First Days Of Work

    Cares during the first days of work The planter you have acquired requires during the first days of work, the precautions further on given. You must pay attention closely and re- adjust (if necessary) all the bolts and nuts of the planter until it is stable, pay special and specific attention during the first three days of work.
  • Page 51 It is important to keep the chains tensioned properly. These are tensioned by registered by adjusting the chain idler bolts. Check the tension regularly and make any necessary adjustments. Proper use and maintenance will ensure long life and optimum operation. Lubrication points Figure 1 shows the labels that identify each lubrication point.
  • Page 52 10 Hs. 10 Hs. 10 Hs. Figure 5: Hitch bar Figure 4a and 4b: Bushing of the markers and cylinders, 7 and 10 rows 10 Hs. 10 Hs. Figure 7: Contact drive wheel Figure 6: Hopper support. articulation Lubricate every 25 hours. (Approximately every three days). 25 Hs.
  • Page 53 25 Hs. 25 Hs. Figure 10: Disk arm bushings, Figure 11: Hitch Bar every 25 hours or 3 days of work articulation spring 25 Hs. 25 Hs. Figure 12: Wheel turning Figure 13: Disk arm bushing. brake 25 Hs. 25 Hs. Figure 15: Bushing of the seed Figure 14: Bushing of the fertilizer unit.
  • Page 54 Figure 16: Elevation wheel hub. Figure 17: Contact drive wheel hub. Figure 19: Marker´s hub. Figure 18: Opener disc´s hub. Figure 20: Fertilizer disc´s hub. LUBRICATE ONCE EVERY WHILE, OR TWICE EVERY WORKING SEASON...
  • Page 55 The frequencies are stated in a general way; of course the weather, terrain conditions and general environment will determine more often lubrication requirements. The lubrication in figures 16, 17, 19 and 20 must be done with extreme caution, not allowing the extreme grease pressure to damage the bearing´s retainers or seals.

  • Page 56: Tasks At The End Of The Working Season

    Tasks at the end of the working season Once the planting season has ended, it is necessary to overcome some tasks to the planter, mostly cleaning. This is to leave the planter ready for the next year´s working season. The main tasks that should be done are: 1.

  • Page 57: Beginning Of The Working Season

    5. Grease zerk or Nipples lubrication. Once the planter is clean, it is advisable to grease the grease zerks or alemite nipples to eliminate any moisture or water remnant inside mobile elements. If possible, store the planter where it is protected from rain and sunshine till the next planting season.

  • Page 58: Replacing Worn Components

    Mobile parts. Clean and grease all mobile parts. Place the chains in case you removed them and set them with chain idler. Do not oil or grease the chains; oiling them will allow dirt to accumulate, hinder operation and cause early wear. Use only kerosene to clean these parts. 5.
  • Page 59 Bearings (Figure 31) The implement contains sealed bearings in beds, depth control wheels, tapered bearings in wheel hubs, and press wheels. Tapered roller bearings may be calibrated and adjusted. In order to prevent their premature wear, check any clearance and adjust it. Figure 31 Gears Wear will be generated if the tension on their driving chain is not adequate (excessive length...
  • Page 60 This page intentionally let blank...

  • Page 61: Troubleshooting Section

    BUFALO S.A Troubleshooting section In the following section of this manual you will find a chart with the most common problems that may occur during work, and how to solve them before calling maintenance service. PROBLEM Probable cause Remedy Dirty seeds. Use clean dry seeds.
  • Page 62 PROBLEM Probable cause Remedy Determine the position of the levers Inadequate plate or seed disc in the gearbox and the correct seed for the density selected. plate for type of seed and doses desired. Seeds of very different types Inadequate Use calibrated seeds.

  • Page 63: Transportation Laws - Special Notice

    BUFALO S.A SPECIAL NOTICE Our planters are designed and manufactured according to the transportation laws of Argentina, these affect normal vehicles and agricultural machinery too. The law is #24.449 Articles: 62, 57, regimentation #779/95, and others regarding the transportation of agricultural machinery. We suggest that you adapt and respect your local transportation laws.
  • Page 64 This page intentionally let blank...

  • Page 65: Special Notes

    SPECIAL NOTES This section has been created for you to write important information referring the regulation of your planter, special information that you will need to remember from one working season to the other. Write it down! Don´t forget it. ………………………………………………………………………………...
  • Page 66 …………………………………..……………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………..……………………………………………………………………… …………………………………..………………………………………………………………………...
