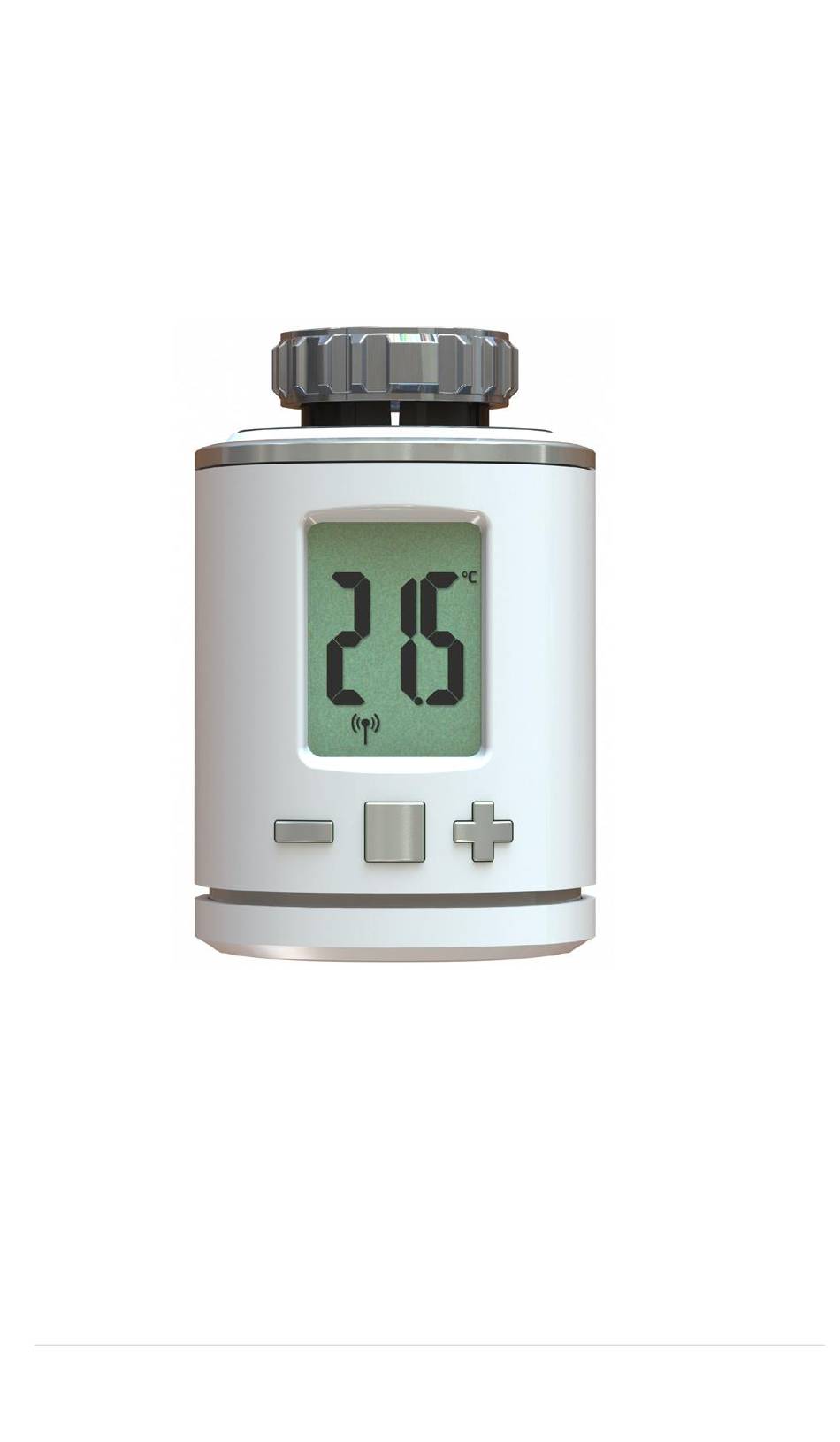

- Page 1 TTDZ2 Digital Thermostatic Head Instruction manual...
-
Page 2: Table Of Contents
Summary INTRODUCTION pag. 3 DESCRIPTION AND PRODUCT SPECIFICATIONS pag. 4 PACKAGE CONTENTS pag. 8 INSTALLATION pag. 8 MODE pag. 11 DISPOSAL pag. 13 WARRANTY pag. 14... -
Page 3: Introduction
Introduction SmartDHOME thank you for choosing this TTDZ2 digital thermostatic head for radiator control. This device is Z-Wave certified and is compatible with the MyVirtuoso Home gateway. -
Page 4: Description And Product Specifications Pag
Description and Product Specifications The TTDZ2 digital thermostatic head has been designed to allow the customer to monitor and control the temperature delivered by their radiators. Activating or deactivating zones according to actual needs saves energy. Technical specifications Batteries: 2x1.5V AA alkaline, class III... - Page 5 • Action Confirmation Displayed on the Display • Enables / disables "Fast heating" mode. Press for 3 Shows the Z-Wave node seconds Press for 5 Enters "Exclusion" mode. seconds Press when Allows you to return to TTDZ2 is OFF factory settings.
- Page 6 LED Description Red LED Blinking Running software update. It is not possible to adjust the temperature during the update. Red LED Stay fixed for 5 An operation has failed. seconds Red LED Stay fixed An error has occurred. Refer to the manual to check the type of error.
- Page 7 It lights when the display shows the Z-Wave node ID. Visible when the battery is below 15% charge. "Child protection" mode is active. Visible if a precise temperature has been entered. Visible instead of "° C" if TTDZ2 is set to "Direct Control" mode.
-
Page 8: Package Contents
Package Contents: 1 TTDZ2 Thermostatic Head 3 Adapters (Danfoss RA, RAV, RAVL) 1 Owner's Manual Installation : Before you can mount the head for the first time, you will need to include it. a. Inclusion 1. Set the MyVirtuoso Home gateway to inclusion mode and turn on the head. - Page 9 If necessary, locate an appropriate adapter mount onto valve. Place the TTDZ2 on the ring and screw it until it reaches the correct position. For the duration of the process, the message "INS" will remain visible on the display. If the installation is successful, the LED will remain green for 5 seconds, while the display will show the default set temperature.
-
Page 10: Mode
"DEF" and the LED will remain green for 5 seconds, indicating the success of the reset. Mode The TTDZ2 digital thermostatic head can be used in several modes, which can be set up locally and / or through MyVirtuoso Home APP. - Page 11 a. Off mode To set it locally, press the key until the display shows "OFF". The temperature is now fixed at 6.0 ° C. This mode is designed for when the heating and opening of the valves is not necessary. b.
- Page 12 d. Fast heating mode To set it locally, press the key (alternatively, it can be activated by pressing the key while the display shows "ON"). The valve will open for 5 minutes. This mode is designed to quickly increase room temperature. f.
-
Page 13: Disposal
Disposal Do not dispose of electrical appliances in mixed urban waste, use separate collection services. Contact the local council for information about available collection systems. If electrical appliances are disposed of in landfills or in inappropriate places, hazardous substances can escape into groundwater and enter the food chain, damaging health and well-being. -
Page 14: Warranty
Warranty Visit the link: http://www.ecodhome.co.uk/warranty-and- repairs SmartDHOME Srl www.ecodhome.com info@smartdhome.com Rev. 07/2017 P/N 01335-1013-00...
