Check..........................................................................................................1
1，Check the package...................................................................... 1
2，Check the accessories................................................................ 1
3，Check the whole machine...........................................................1
Chapter 1 Overview................................................................................2
1, The instrument profile....................................................................2
2, The instrument features................................................................ 3
3, Technical indicators....................................................................... 3
Chapter II Instrument Description..................................................... 5
1, Display instructions........................................................................ 5
diagram.................................................................................................7
Chapter III Operating Instructions.................................................... 9
1, The communication connection...................................................9
2, The operating instructions.......................................................... 10
Chapter Ⅳ After-sales service..........................................................11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Juntek VAT series
-
Page 1: Table Of Contents
Check......................1 1，Check the package..............1 2，Check the accessories..............1 3，Check the whole machine............1 Chapter 1 Overview................2 1, The instrument profile..............2 2, The instrument features..............3 3, Technical indicators............... 3 Chapter II Instrument Description............. 5 1, Display instructions................ 5 2, The display module and measurement module power wiring diagram....................7 Chapter III Operating Instructions............ -
Page 2: Check
Check When you get a new VAT Voltage-Current Meter, we recommend that you follow the steps below to check the instrument. 1，Check the package If the package is damaged, please keep the damaged packaging or cushioning material until the goods have been thoroughly inspected and the instrument has passed both electrical and mechanical tests. -
Page 3: Chapter 1 Overview

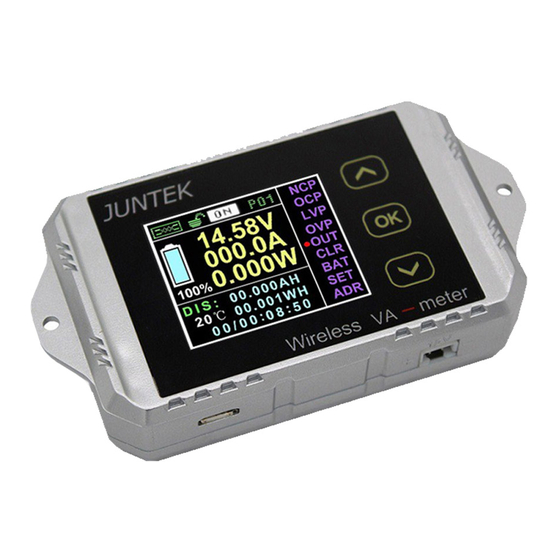

Chapter 1 Overview 1, The instrument profile VAT series is a multi-function meter based on 2.4G wireless data transmission technology. It can measure miscellaneous parameters such as voltage, current, power, charge and discharge capacity, watt-hour 、 time,and temperatureand with over-current protection Protection, under-voltage protection, and limited protection and other protection functions. - Page 4 Capacity display range 0%~100% Power measurement range 0~200kW Power resolution 0.001W AH measurement range 0~2000kAH Capacity resolution 0.001AH Watt-hour measurement range 0~4000kWH Watt-hour accuracy 0.001WH Time measurement range 0 ~ 99 days Time resolution 1 second Communication channel range A ~ Z (26 channels) Communication channel range 01~99 Voltage accuracy...
-
Page 5: Chapter Ii Instrument Description
Chapter II Instrument Description 1, Display instructions 1. The instrument is divided into two parts, including the display module and measurement module, the display interface in both Chinese and English, which can be set in the language settings. Main display panel interface... - Page 6 Reverse display interface easy to observe in the light, please read the "Operating Instructions” for details. 大字体界面 反白界面 3.VAT series display module and measurement module size (in mm)
-
Page 7: 2, The Display Module And Measurement Module Power Wiring
2, The display module and measurement module power wiring diagram The instrument can be "wired communication" and "wireless communication" 1. Display power supply wiring diagram is as follows: When the display board is powered separately, there are two power supply interfaces, which are the USB 5V power supply interface and the 2P socket interface (8-16V) power supply. - Page 8 2.2, wiring diagram of VAT1050, VAT1100, VAT1200, VAT1300 measuring voltage is 10-100V: The above figure applies to VAT1050, VAT1100, VAT1200, VAT1300 measurement circuit voltage of 10-100V; attention at this time attention to the jumper cap to receive 2W, the left wiring method is suitable for battery discharge measurement and DC circuit measurement;...
-
Page 9: Chapter Iii Operating Instructions
2.4, VAT1050, VAT1100, VAT1200, VAT1300 and VAT4300 external relay wiring diagram; The wiring method on the left is applicable to the discharge measurement of the battery and the measurement of the DC circuit; the wiring method on the right is only applicable to the charge measurement of the battery. When selecting the relay, pay attention to the relay's contact can withstand the maximum current in the circuit, such as the current in the test current is 80A, then select the relay, you must select the contact current can withstand... -
Page 10: 2, The Operating Instructions
2, The operating instructions Item Introduction This item can control the output status. Parameters will be “OUT” saved when set to OFF.Shutdown require relay coordination This item can set Negative over-current protection.Press “OK”can change the value, The function will be turned off “NCP”... -
Page 11: Chapter Ⅳ After-Sales Service
Chapter Ⅳ After-sales service ◆ Product quality problems (non-human caused) in 30 days, unconditional return policy ◆ The company promises to provide a lifetime warranty for its products, and does not collect any maintenance fees within one year. It only pays for the return shipping costs.
