INSTRUCTION MANUAL
FOR
3-in-1 Combo Electrotherapy Device
Model: R-C1
Shenzhen Roundwhale Technology Co., Ltd.
This manual is valid for the R-C1 Stimulator
Be sure to read this instruction manual before operate and
keep it where safe.
This user manual is published by Shenzhen Roundwhale
Technology Co., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-C1 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Roundwhale Technology Co., LTD. R-C1

Summary of Contents for Shenzhen Roundwhale Technology Co., LTD. R-C1

  • Page 1 3-in-1 Combo Electrotherapy Device Model: R-C1 Shenzhen Roundwhale Technology Co., Ltd. This manual is valid for the R-C1 Stimulator Be sure to read this instruction manual before operate and keep it where safe. This user manual is published by Shenzhen Roundwhale...
  • Page 2 However, Amendments will be published in a new edition of this manual. All Rights Reserved. R-C1 Rev.V1.1 © 2018, printed in Sep.11, 2018. Declaration of conformity: Shenzhen Roundwhale Technology Co., Ltd. declares that the device complies with following normative documents:...

  • Page 3: Table Of Contents

    TABLE OF CONTENS 1. FOREWORD 2. SAFETY INFORMATION 3. GETTING TO KNOW YOUR DEVICE 4. SPECIFICATION 5. OPERATING INSTRUCTION 6. INSTRUCTIONS FOR USE 7. Program 8. Cleaning and maintenance 9. Troubleshooting 10. Storage 11. Disposal 12. Electromagnetic compatibility (EMC) tables 13.

  • Page 4: Foreword

    1. FOREWORD Introduction The device R-C1 is a dual channel output TENS, EMS and MASSAGE stimulator.Before using, please read all the in- structions in this user manual carefully and keep it safe for future use. The COMBO stimulator belongs to the group of electrical stimulation systems.
  • Page 5 tem. It reminds us that something is wrong, without which, abnormal conditions may go undetected, causing damage or injury to vital parts of our bodies. Even though pain is a necessary warning signal of trauma or malfunction in the body, nature may have gone too far in its design. Aside from its function in diagnosis, long-lasting persistent pain serves useless purpose.

  • Page 6: Safety Information

    is able to work directly on muscle motor neurons. The EMS System has low frequency and this in conjunction with the square wave pattern allows direct work on muscle group- ings. 2. SAFETY INFORMATION 2.1 Intended use TENS mode It is used for temporary relief of pain associated with sore and aching muscles in the shoulder, low back, joint, hip, upper extremities (arm) and lower extremities (leg) due to strain from exercise or normal household work activities.
  • Page 7 use could cause electric shock, burns, electrical inter- ference, or death. 2) The device should not be used when cancerous lesions or other lesions are present in the treatment area. 3) Stimulation should not be applied over swollen, in- fected, inflamed areas or skin eruptions (e.g. phlebitis, thrombophlebitis, varicose veins, etc.).
  • Page 8 6) Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), which may not operate properly when electri- cal stimulation device is in use. 7) Do not apply stimulation when in bath or shower. 8) Do not apply stimulation while sleeping.
  • Page 9 are in contact with each other. 19) Keep the stimulator out of reach of children. 20) Consult your doctor if you are in any doubt whatsoever. 21) Discontinue it and do not increase the intensity level if you feel discomfort during use. 2.2.3 Precautions 1) TENS is not effective for pain of central origin including headache.
  • Page 10 11) Caution if stimulation is intended to be applied over the menstruation or pregnant uterus. 12) For single patient use only. 13) This stimulator should not be used by patients who is noncompliant and emotionally disturbed including whom with dementia or low IQ. 14) The instruction of use is listed and should be obeyed;...

  • Page 11: Getting To Know Your Device

    3. GETTING TO KNOW YOUR DEVICE 3.1 Accessories Description The COMBO Stimulator Electrode pad （50mm×50mm ) 4pcs Electrode wires 2pcs Ordinary batteries (1.5V, AAA) 4pcs User manual 3.2 LCD display No. Function description No. Function description Treatment mode 10 Timer sign Treatment body part 11 Standby mode: program num- ber;...

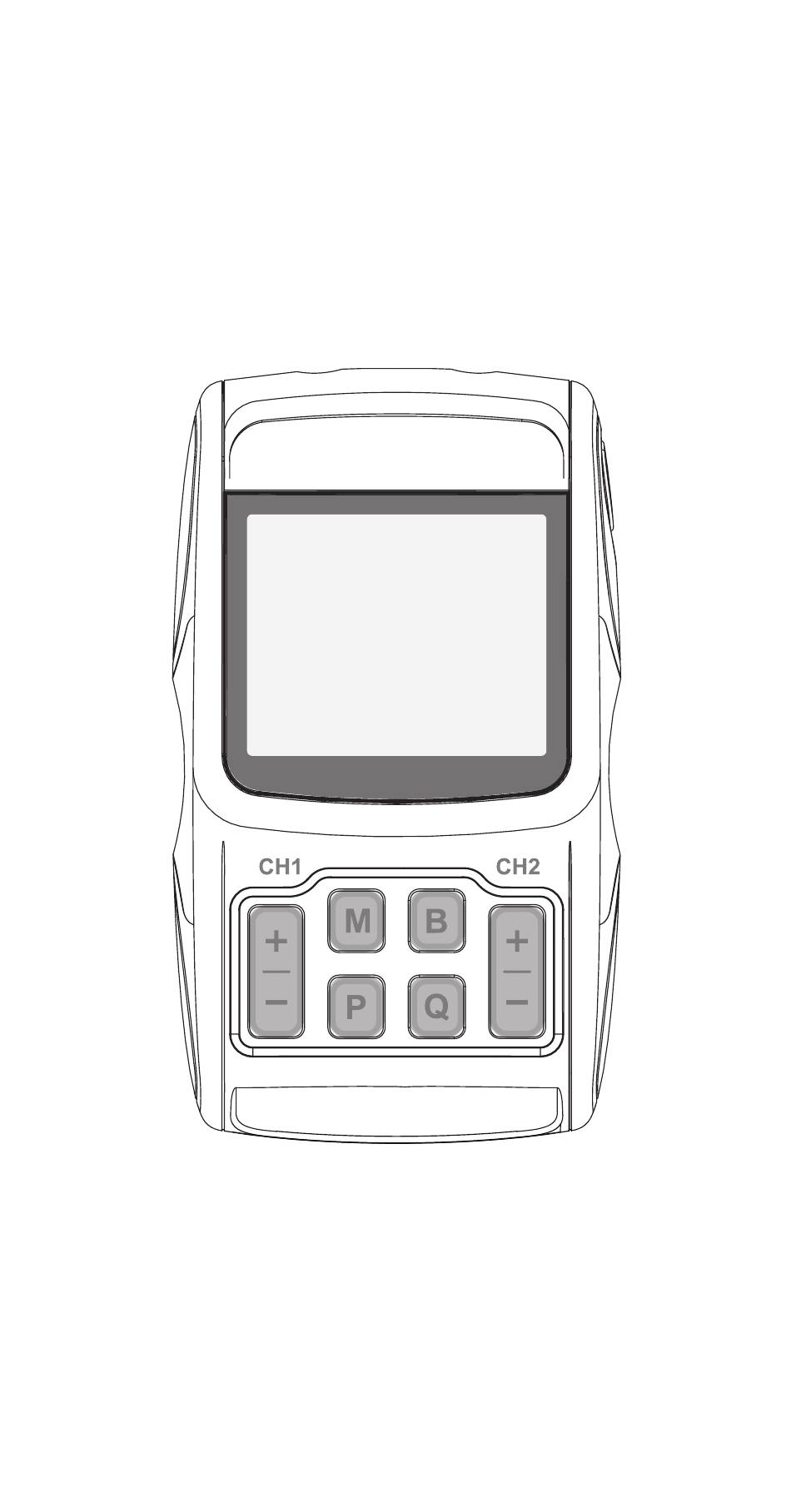

  • Page 12 3.3 Device illustration Description LCD display [ON/OFF] button: At power saving mode, press the [ON/OFF] button to turn on the de- vice; At standby mode, press the [ON/OFF] button to turn off the device; At treating mode, press the [ON/OFF] button to stop the treatment. At query mode, press the [ON/OFF] button to standby mode.

  • Page 13: Specification

    Battery compartment Rating label Output socket 4. SPECIFICATION 4.1Technical information Device name 3-in-1 Combo Electrotherapy Device Model/type R-C1 Power supply 6.0 V D.C., 4x AAA batteries Output Channel Dual channel Waveform Bi-phase square-wave pulse Output voltage Max. 120Vpp (at 1000ohm load) Output current Max.

  • Page 14: Operating Instruction

    TENS mode Number of program 18 programs P.W. (pulse width) 100-330μs P.R. (Frequency) 2-125Hz (Hz=vibration per second) Burst frequency Treatment time 30 minutes EMS mode Number of program 15 programs P.W. (pulse width) 200-380μs P.R. (Frequency) 1-110Hz (Hz=vibration per second) Treatment time 28, 30 and 32 minutes MASSAGE mode...
  • Page 15 regulations. As a consumer, you have legal obligation to return spent battery to the Recycle Bin. Caution 1. If a battery was swallowed accidentally, please seek med- ical assistance immediately ! 2. In case of battery leakage, please avoid contact with the battery through skin, eyes and mucus membranes.
  • Page 16 into the receptacle on the top of the main device. Ensure the electrode wires are inserted correctly. The de- vice has two output receptacles controlled by Channel A and Channel B at the top of the unit. You may choose to use one channel with one pair of electrode wires or both channels with two pairs of electrode wires.
  • Page 17 5.4.3 Electrode placement R-C1 is a kind of OTC stimulator, suitable for home use. You only have to use according to the user manual, place the electrode on the position where you feel pain. Conducting exercise, treatment and adjustment based on your own feeling.
  • Page 18 Back Palm hand Joint...
  • Page 19 Joint Position of electrode placement under EMS programs Back Shoulder...

  • Page 20: Instructions For Use

    6. INSTRUCTIONS FOR USE 6.1 Turn on When use it for the first time, open the battery cover and load four new batteries (Please kindly review Section 5.1.1 for the operating steps and schematic diagram) Press the [ON/OFF] button to turn the device on, the LCD will be lit.
  • Page 21 6.4 Select treatment program Based on your needs, press [P] button to select the treat- ment program. For each body part , it has 3 treatment pro- grams. The LCD displays as follows: 6.5 Start treatment Press the [+] button of CH1 to increase the channel 1 inten- sity, press the [+] button of CH2 to increase the channel 2 intensity.
  • Page 22 intensity of both channels decrease to zero, the stimulator will return to the standby mode. The LCD displays as fol- lows: Caution: If you feel or become uncomfortable, reduce the stimu- lation intensity to a more comfortable level and consult with your medical practitioner if problems insist.
  • Page 23 6.9 Load detection It will automatically detect the load if the intensity is above Level 9.If it haven’t detected the load or the electrode con- tacts the skin not well enough ,the intensity will automati- cally return to Level 0 and the symbol twinkles.
  • Page 24 Notice of batteries: a. Batteries may be fatal if swallowed. Therefore, keep the batteries and the product out of the reach of children. If a battery is swallowed, go to a hospital immediately. b. If there’s battery leakage, avoid contact with skin, eyes and mucus membranes.
  • Page 25 d. Electrode pads are private and intended for single per- son use. Please avoid use them by different persons. e. The electrode must connect entirely to the skin surface to prevent hot spots, which may lead to skin burns. f. Do not use the electrode pads for more than approx. 10 times, as connection between the electrodes and the skin deteriorates over time.

  • Page 26: Program

    tach the electrodes in such a way that the affected mus- cles are also enclosed by the electrodes. Usage advice for TENS: a) If you feel the output intensity too strong, you can press 【-】button to decrease it; b) During the treatment if you don’t feel any discomfort, we advise you use the device until the session ends.
  • Page 27 60/50/45/35/10 Back 6/8/10 330/150 Normal 2/100 200/150 Normal Normal 4/6/50 Normal 4/6/50 Burst 6/8/10 2/100 200/150 Joint Normal Burst In EMS mode Frequency (Hz) Applica- Pro- Pulse Treatment Prepare Work Relax ble parts gram width (uS) time (min.) stage stage stage 55/6 Shoul-...

  • Page 28: Cleaning And Maintenance

    55/6 75/4 110/1 55/6 75/4 110/1 In massage mode Applica- Pro- Frequency Pulse Treatment ble parts gram (Hz) width (uS) time (min.) Knead 83-132 50-220 25-80 30-220 150-290 30-220 8. Cleaning and maintenance Fully comply with the following necessary daily mainte- nance requirements to make sure the device is intact and guarantee its long term performance and safety.
  • Page 29 8.1.3 The COMBO stimulator is sensitive to heat and may not be exposed to direct sunlight. And do not place it on hot surfaces. 8.1.4 Clean the surface of the electrode pads carefully with a damp cloth. Make sure the device is turn off! 8.1.5 For reasons of hygiene, each user should use his/her own set of electrodes.

  • Page 30: Troubleshooting

    9. Troubleshooting Should any malfunction occur while using the device, check whether the parameters are set appropriately for therapy, and adjust the control correctly. Please see the fol- lowing table: Malfunction Common reasons Countermeasure 1. Check and clean the 1.There’s foreign body compartment.

  • Page 31: Storage

    1. The electrode loses 1. Check and place the Automatic connection with the electrode properly halt in the skin. on the skin. treatment 2. If the battery is used 2. Replace the battery. 1. Do the treatment once a day and shorten the treat- ment time.

  • Page 32: Disposal

    11. Disposal Spent batteries do not belong to the household wastes. Dispose of the battery according to the current regulations. As a consumer, you have the obligation to dispose of bat- teries correctly. Consult your municipal authority or your dealer for information about disposal. At the end of the product lifecycle, do not throw this prod- uct into the normal household garbage, but bring it to a collection point for the recycling of electronic equipment.
  • Page 33 R F e m i s s i o n s Class B CISPR11 The device is suitable for use in all es- Harmonic emis- Not appli- tablishments including those directly sions cable connected to the public low-voltage lEC61000-3-2 power supply network that supplies Voltage fluctua- to buildings power used for domestic tions/...
  • Page 34 <5% U (>95% dip in for 0.5 cycle 40% U Voltage dips, (60% dip in short interrup- not applicable tions and volt- for 5 cycles not applica- (For INTERNAL- age variations LY POWERED ME on power supply 70% U EQUIPMENT input lines (30% dip in IEC 61000-4-11...
  • Page 35 Radiated 10V/m 10V/m & Portable and mobile RF communi- & table table 9 cations equipment should be used not closer to any part of the Blood 61000-4-3 Pressure Monitor, including cables, than the recommended separation distance calculated from the equa- tion applicable to the frequency of the transmitter.
  • Page 36 a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.

  • Page 37: Normalized Symbols

    Bluetooth, Pulse WLAN, 2400- modu- 2450 802.11 b/g/ 2570 lation n, RFID 2450, 217Hz LTE Band 7 Pulse 5240 5100- WLAN 802.11 modu- 5500 5800 lation 5785 217Hz NOTE If it is necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m.The 1 m test distance is permitted by IEC 61000-4-3.

  • Page 38: Warranty

    The first number 2: Protect against solid for- eign objects of 12,5 mm Ф and greater. The second number: Protect against vertically IP22 falling water drops when enclosure titled up to 15º. Vertically falling drops shall have no harm- ful effects when the enclosure is titled at any angle up to 15º, on either side of the vertical.
  • Page 39 tomer or unauthorized third parities. • Damage which has arisen during transport from the manufacturer to the consumer or the service centre. • Accessories which are subject to normal wear and tear. • Device damage due to privately dissembling devices. 4.
  • Page 40 Shenzhen Roundwhale Technology Co., Ltd. Add: 202, 2/F, Building 27,Dafa Industrial Park，longxi community, longgang street, longgang district, Shenzhen, China. Tel: +86-755-23212776 Fax: +86-755-23212776 E-mail: info@roovjoy.com...
