Summary of Contents for Ringmaster Ringside trainer 700

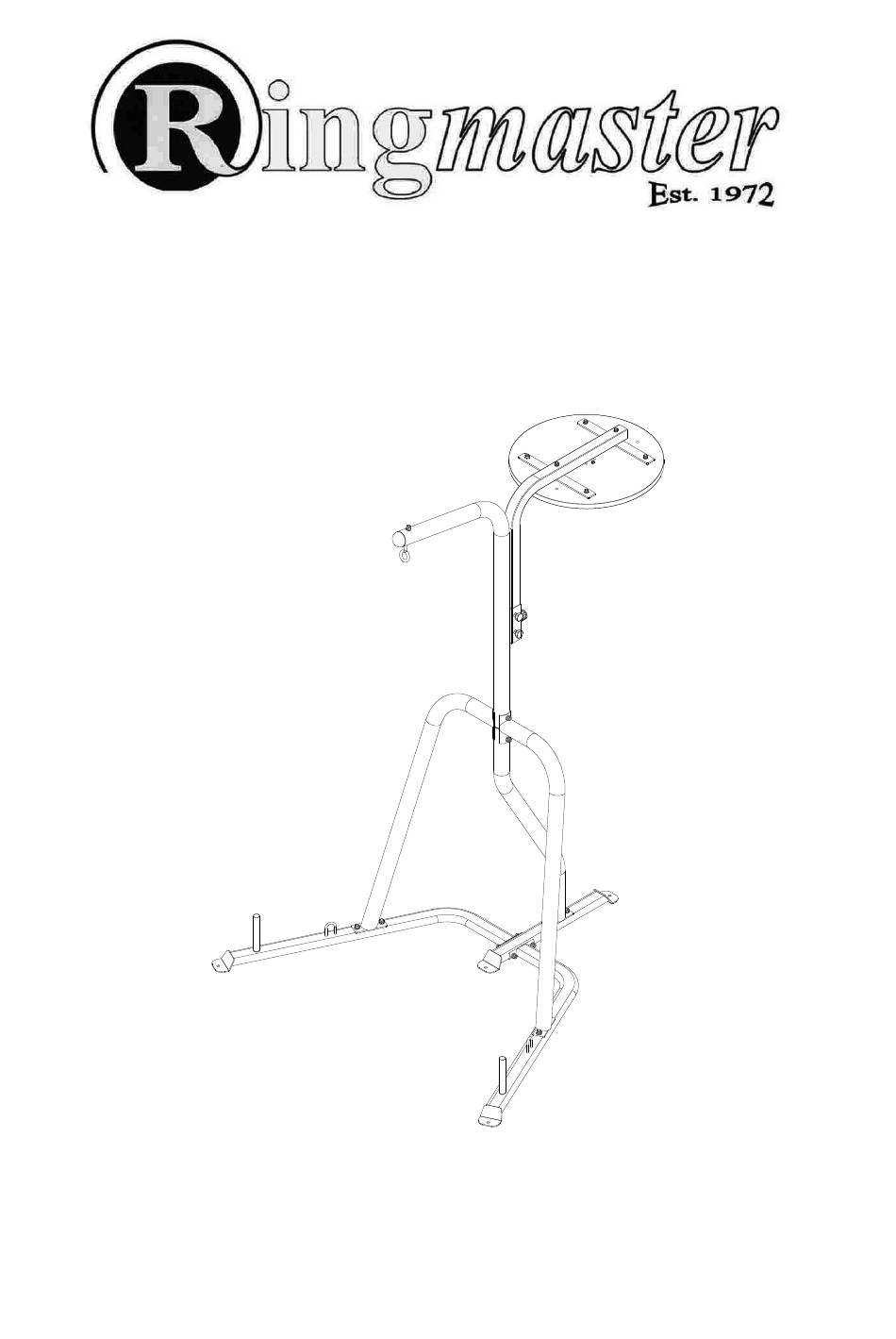

- Page 1 RINGMASTER RINGSIDE TRAINER 700 FRMRT700 FRMRT7000 OWNER’S MANUAL...
- Page 2 ESPECIALLY IF YOU ARE OVER THE AGE OF 35 OR HAVE PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING ANY FITNESS EQUIPMENT. RINGMASTER ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
-
Page 3: Parts List
PARTS LIST Right Base Left Base Main Base Plate Bar Main Vertical Support Code: Code: Code: Code: Code: Qty:1 Qty:1 Qty:1 Qty:2 Qty:1 Right Support Left Support Punchbag Support Platform Adjustment Platform Support Code: Code: Code: Code: Code: Qty:1 Qty:1 Qty:1 Qty:1 Qty:2... - Page 4 Step 1 A. Attach Left and Right Base (1, 2) to Main Base (3) with two M10*90 Bolts (19), four M10 Washers (22) and two M10 Lock Nuts (26). B. Attach Main Vertical Support (5) to Main Base (3) with two M10*45 Carrige Bolts (17), two M10 Washers (22) and two M10 Lock Nuts (26).
- Page 5 Step 2 A. Insert Punchbag Support (8) into the top of Main Vertical Support (5), aligning the hole. B. Attach Left Support (7) and Right Support (6) to Left and Right Base (1, 2) with four M10*45 Carrige Bolts (17), four M10 Washers (22) and four M10 Lock Nuts (26).
- Page 6 Step 3 A. Attach Platform Support (10) to Platform Adjustment (9) with two M8 Washers (21) and two M8 Lock Nuts (25). B. Attach Swivel (14) to Speed bag Platform (23) with four M5*40 Bolts (15), four M5 Washers (20) and four M5 Lock Nuts (24).
- Page 7 MADE IN CHINA FOR WWW.RINGMASTERFITNESS.COM.AU...
