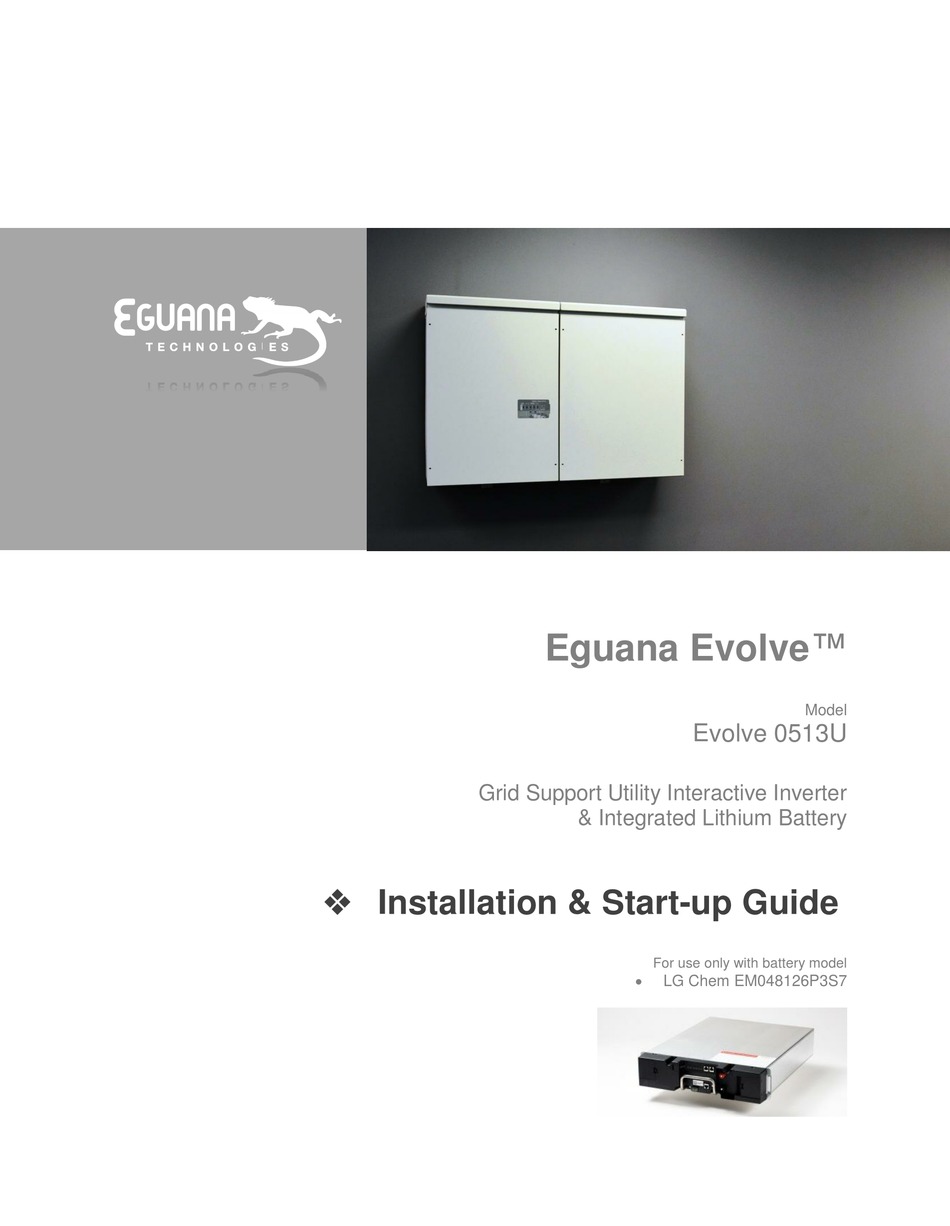

- Page 1 Eguana Evolve™ Model Evolve 0513U Grid Support Utility Interactive Inverter & Integrated Lithium Battery Installation & Start-up Guide For use only with battery model LG Chem EM048126P3S7...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for the Eguana Evolve™ Energy Storage System – including the Power Control System (PCS) and base model battery cabinet installation and operation. The AC Battery is expandable with the addition of up to two more battery cabinets. Refer to the manual, “Eguana AC Battery Expansion Cabinet Installation Guide”...
-
Page 3: Table Of Contents
Table of Contents Contents 1 INTRODUCTION ....................................1 – T 1.1 A ....................1 BOUT THIS ANUAL ARGET UDIENCE 1.2 G .............................. 1 LOSSARY 1.3 I ...................... 2 NITIAL NSPECTION OF ATERIAL 1.4 S & ........................2 PECIAL TOOLS HARDWARE 2 INSTALLATION SITE PREPARATION ............................ -
Page 4: Introduction
1 Introduction Throughout this manual, the following symbols will be used to highlight important information and procedures: Symbol Definition Symbol Definition WARNING! A dangerous voltage or other condition exists. Use extreme caution when Meter measurement required. performing these tasks. CAUTION! This information is critical to the safe installation and or operation of the inverter. -
Page 5: Initial Inspection Of Material List
1.3 Initial Inspection of Material List The system components supplied with your Eguana Evolve™ Energy Storage system are shown below. Each component should be inspected visually for any damage that may have been caused by shipment. If damage is present, please contact your local distributor. -
Page 6: Installation Site Preparation
2 Installation Site Preparation Before installing the Evolve home energy storage components, read all instructions and warnings in this manual. CAUTION! All electrical installation work should be performed in accordance with local building and electrical codes. WARNING! Isolate the PCS from all energy sources prior to electrical installation by means of disconnects, breakers or connectors. -
Page 7: Installation Plan - Power And Communication Circuits
2.3 Installation plan – power and communication circuits The following example outlines the conduit plan for power and communication circuits for the battery system complete with the ACXIS EMS panel. In this example, the PV inverter is coupled to a backup power sub-panel and is within the battery system’s maximum charge limit of 5 kW AC. -
Page 8: Sld - Ac Coupled Pv System With Back-Up Power Operation
2.4 SLD - AC Coupled PV System with Back-up Power Operation The single line diagram shown below is a representation of a typical installation configured for utility interactive and back- up power operation, with AC coupled PV connected to a critical load panel for solar charging of batteries during a grid outage. -
Page 9: Pcs And Battery Cabinet Wall-Mounting Instructions
3 PCS and Battery Cabinet Wall-Mounting Instructions Cabinet mounting slot Wall Alignment mount slot 1. Mount the wall bracket to the wall. Use the available slot pattern to mount to a load-bearing structure rated for the weight of the final system. - Page 10 8. Remove the PCS cabinet from its packaging and stand upright. (not shown). Remove the front cover. 9. Assemble and mount the leveling bracket as shown in steps 3 and 4 above. CAUTION! The PCS cabinet is heavy. Mechanical lift recommended. 10.
-
Page 11: Pcs / Battery Inter-Cabinet Wiring
4 PCS / Battery Inter-Cabinet Wiring Plastic barrier The following instructions cover the interconnection wiring of the PCS and master battery cabinet. No cable preparation is required with battery modules pre-installed in the cabinet. Refer to appendix A for a complete inter-cabinet wiring diagram. Note: Overcurrent protection of the DC source is provided ... -
Page 12: Battery Bms To Pcs Communication Connection
4.2 Battery BMS to PCS communication connection BMS In port Figure 7: PCS - BMS high level communication wire installation. Left – PCS cabinet termination. Right – Battery cabinet termination. The communication cable can be routed with DC power cables. Take care that the communication cable is routed through the inter-cabinet coupler so that there is no stress or tension on the terminations. -
Page 13: Ac Power Connections
5.1 AC power connections This battery system contains two independent AC power connection ports; one port dedicated for an electrical utility connection, marked “AC Grid”, the other port dedicated for backup operation, marked “AC load”. This product’s primary application is intended for utility interconnection, and must be connected to a utility electrical service supplying split phase 240/120 Vac, 60 Hz. -
Page 14: Chassis Grounding
5.2 Chassis Grounding In this section, “Chassis Ground” is referred to as “ground” or “grounding” unless otherwise mentioned. The AC and DC grounding are intended to provide a low impedance signal path at all frequencies. DC Ground Wiring Installation: The PCS cabinet is shipped with ungrounded DC power terminals within the inverter. However the default setting for DC grounding is set for DC negative to ground. -
Page 15: Start-Up Sequence
6 Start-up Sequence CAUTION! Powering the Evolve home energy storage system requires a specific start-up procedure. Please follow the steps below. CAUTION! If the battery disconnect has been placed in the OFF position at any time during operation, wait one minute before returning to the ON position. Rapid cycling (less than one minute) of the battery disconnect can cause damage to the pre-charge circuit. - Page 16 Green indicator: The left indicator indicates normal operation. Blue indicators (SOC): In normal operation, the four indicators on the right show the module’s state of charge (SOC). Each indicator represents 25% of a full charge. If the SOC value is 50%, the three rightmost indicators are on solid BLUE.
-
Page 17: Operation
7 Operation The Evolve home energy storage system is fully automated. The EMS will be programmed to connect the system to the grid after AC and DC sources are applied. Refer to the user interface manual for system monitoring and operation status. The operating states can also be viewed on the PCS display panel. -
Page 18: Service Button
8.3 Service Button The service button can be used to wake the LED display, and either place the system into or out of service mode, as well as cycle through various operating modes. If the system has gone into service mode, the user can attempt to bring the system back into normal operation using the service button. -
Page 19: Specifications
11 Specifications Refer to section 11.1 for operating characteristics in compliance with the UL 1741 SA standard. Table 1: PCS Electrical / Mechanical Ratings ACB05ULP Model Grid : Charging Grid : Discharging Off Grid Maximum DC Voltage 80 V DC Operating DC Voltage Range 40 to 80 V DC Operating DC Voltage Range(full load) - Page 20 Table 2: PCS Field Wiring Ratings – AWG / Torque Use Copper Wire Only, 90°C or higher rated Field Wiring Minimum Wire Size mm Maximum Wire Size mm Tightening Torque, Nm (in. Terminal (AWG) (AWG) lbs) Ground Lug 16 mm (6 AWG) 16 mm (6 AWG)
-
Page 21: Ul 1741 Sa Grid Support Utility Interactive Inverter Specifications
11.1 UL 1741 SA Grid Support Utility Interactive Inverter Specifications The Bi-Direx PCS within this integrated storage product complies with the UL 1741 SA standard for grid support utility interactive inverters. These functions are intended to be either enabled or disabled in accordance with local utility interconnection requirements. -
Page 22: Thermal Performance: Charge / Discharge Curves
11.2 Thermal performance: Charge / Discharge Curves Figure 13: Energy storage system thermal derated charge and discharge curves. -
Page 23: Appendix A: Electrical Block Diagram Of Inter-Cabinet Wiring
Appendix A: Electrical Block Diagram of Inter-Cabinet Wiring The following reference diagram outlines the DC and communication interconnections between PCS, master battery, and expansion battery cabinets. Reference Title Notes 801003338 PCS-BMS cable Connects master battery to PCS [BMS CAN] port. 801003533 BMS cable –... - Page 24 THIS PAGE INTENTIONALLY LEFT BLANK...
