Portable Air Compressor
User Manual
[Revision 4.0 October 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
Advertisement
Table of Contents
Related Manuals for Outbac OTB600
Summary of Contents for Outbac OTB600
- Page 1 Portable Air Compressor User Manual [Revision 4.0 October 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
Portable Air Compressor Table of Contents Safety................................1 Included Items ..............................2 Operation ................................. 3 Inflation ..................................3 Deflation ................................... 4 Maintenance ..............................5 Specifications ..............................5 E&OE © 2018 Outbac... -
Page 3: Safety
Leader hose and fittings on extension hose will become very HOT during and after use. If necessary, wear heat-resistant gloves to remove extension hose from the leader hose. E&OE © 2018 Outbac... -
Page 4: Included Items

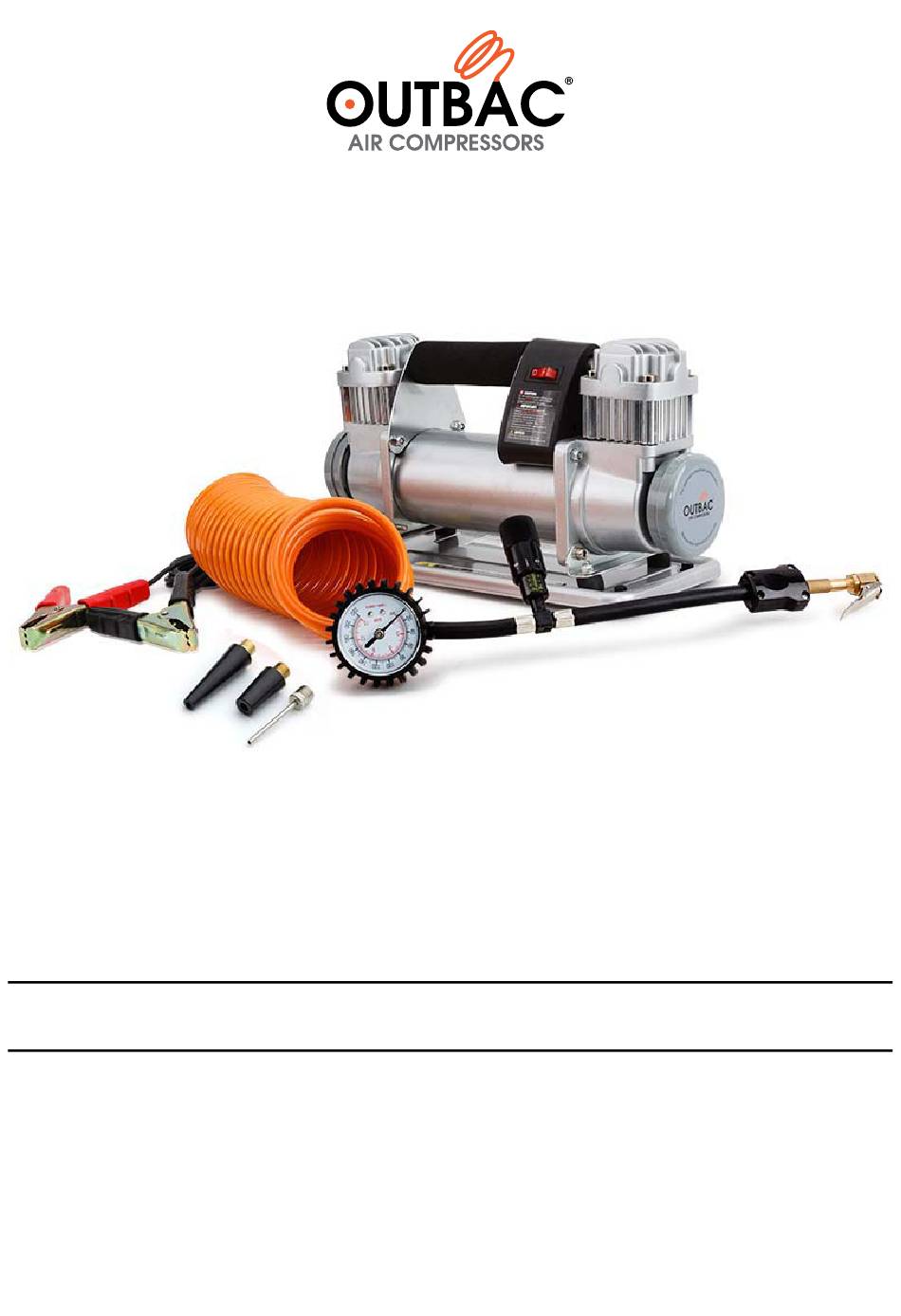

Portable Air Compressor Included Items Air Compressor Hose tips Battery Clamps (with re-settable fuse) Fix Kit Hose (with pressure & deflation gauge) E&OE © 2018 Outbac... -
Page 5: Operation
Portable Air Compressor Operation Inflation Connect hose to air compressor. Connect battery clamps to battery - Ensuring red is connected to positive and black is connected to negative. Rotate dial all the way to the top. E&OE © 2018 Outbac... -
Page 6: Deflation
Turn off and disconnect battery clamps. Deflation Use this feature when using on soft surfaces such as sand. The battery clamps or air compressor are not needed for this function – only the orange hose is. Rotate dial to desired pressure. E&OE © 2018 Outbac... -
Page 7: Maintenance
Maximum restart pressure 220 PSI Maximum ambient temp 60°C Min. ambient temp -55°C Recommended duty cycle 30 min @ 2.8 BAR (40psi) @ 24°C Hose fittings 1/4" NPT Hose Length Auto reset thermal protection Connection Type Quick release E&OE © 2018 Outbac... - Page 8 ©2018 Outbac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
