HTD BR-TPR Manual

Wall-mount speaker bracket

Advertisement

Thank you for giving Home Theater Direct the chance to win your business! We are confident you will find that HTD offers an
outstanding combination of performance and value in everything we make. Please take a moment to carefully read this manual.
Should you lose this manual, you can always download a copy for free from our website.
The BR-TPR has been tested to work with our Level TWO and Level THREE bookshelf and center speakers only. While these
speaker brackets have been rated to hold up to 44 pounds, HTD makes no warranty for their use with non-HTD products

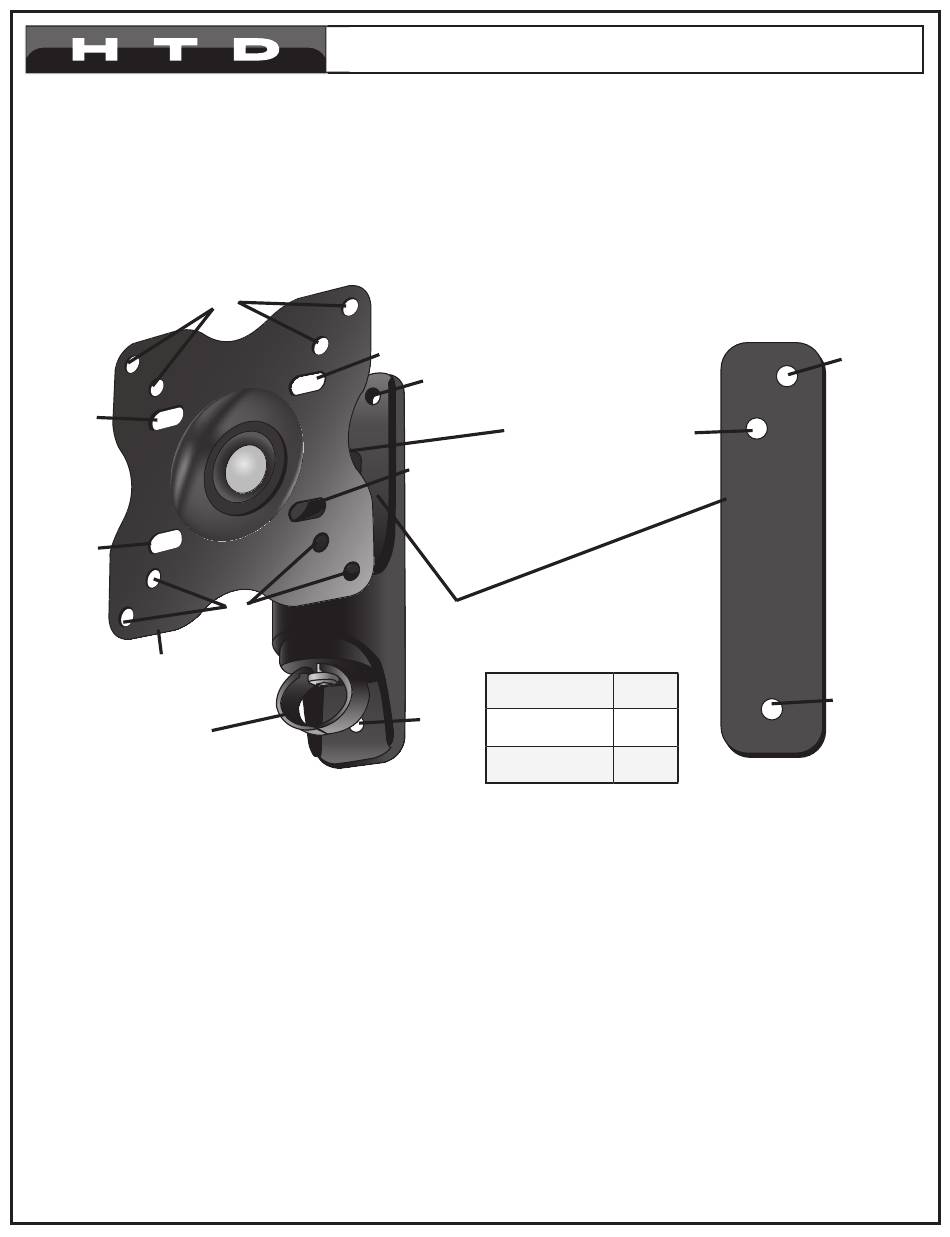

Anatomy of the Speaker Bracket

The BR-TPR consists of several parts all working together to ensure a secure attachment in numerous positions. Every part is
important and none should be discarded under any circumstance.
w
y
Multi-directional
Mounting Plate
Speaker Cable
Channel

Mounting the Wall Plate

The Wall Plate can be attached to a wall or ceiling (for the remainder of these instructions, please substitute the word "ceiling" for
"wall" when performing a ceiling installation). The Wall Plate MUST be anchored to a stud (or similarly reinforced surface) with a
minimum actual dimension of 1.5" x 3.5". Mounting into sheetrock alone is NOT sufficient to hold the HTD Level TWO or Level
THREE speakers. Locate the stud behind the wall using a stud finder and mark the wall along the centerline of the stud at the
height you plan to mount the bracket. Place the Wall Plate in position such that holes "a", "b", and "c" are positioned along the
stud.
You will need three screws per bracket for a secure installation. It is important to use a wood screw that will penetrate the stud
by a minimum of 1" (in addition to the thickness of your drywall). Insert a screw through hole "a" using a power screwdriver
(alternatively, you can first drill pilot holes and then use a regular screw driver). Repeat for hole "b" and "c". The Wall Plate should
now be firmly in place.
Alternatively, when access is available to the back side of the mounting stud (such as in a wall opening to a garage or attic), you
may choose to use nuts and bolts in place of screws.

Mounting the Speaker Plate

It is only necessary to connect the Speaker Plate to the HTD speaker with two bolts. The Speaker Plate includes four holes
to allow two options when attaching the Speaker Plate to the back of the speaker. HTD Level TWO and Level THREE Main
Speakers are equipped with two mounting bolts on the back of each speaker that match perfectly with either pair of holes on the
Speaker Plate.
B R - T P R Wa l l - m o u n t S p e a k e r B r a c k e t
p
X
q
a
Tightening
bolt
z
Wall Plate
Primary Stud Holes
c
Speaker Mounting
holes
vesa mounting
holes (not used)
Wall Plate
b
a, b, c
w, x, y, z
p, q
.
a
c
