Summary of Contents for twisted electrons cells

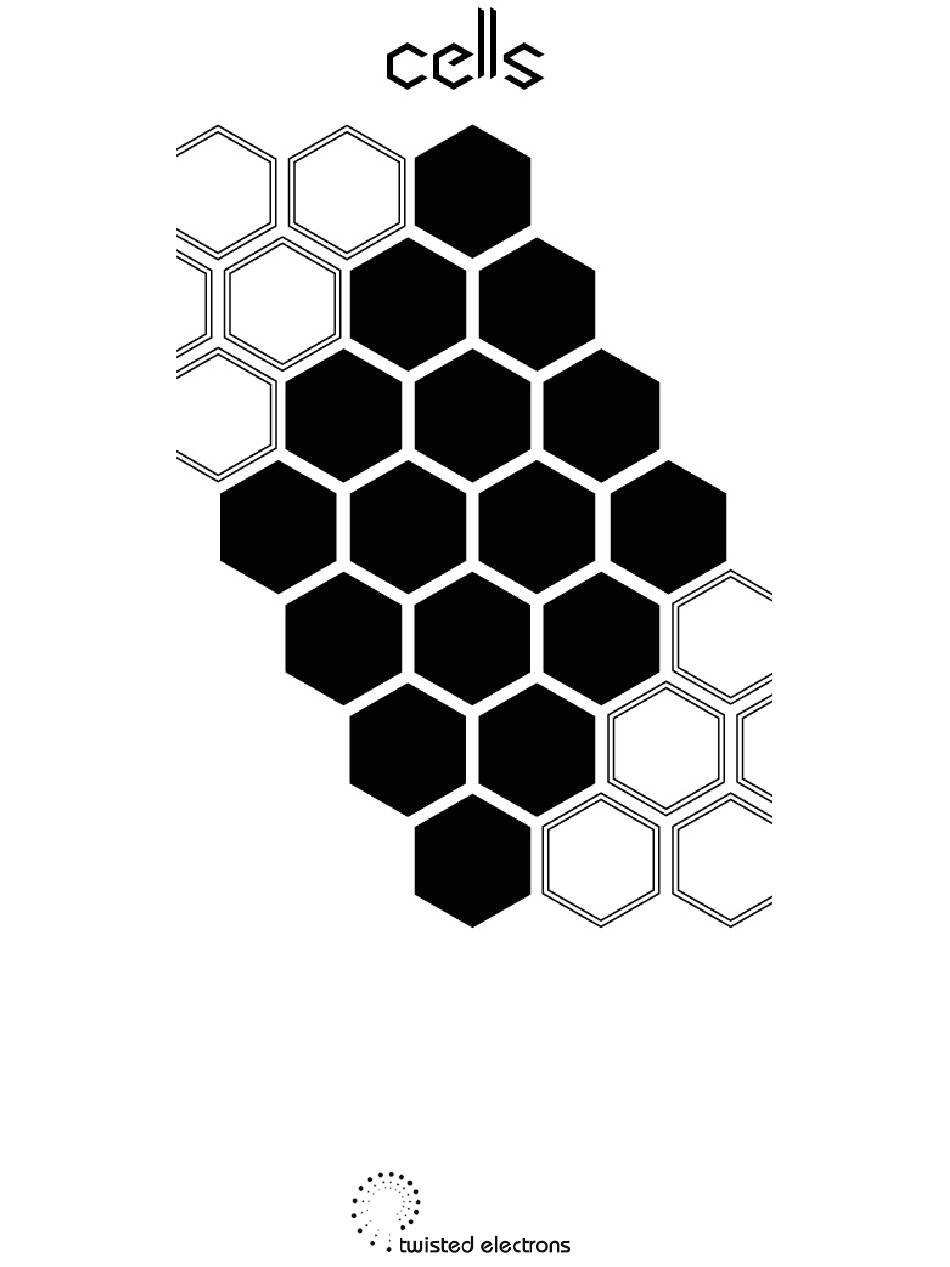

- Page 1 user’s manual Feed it, play it, sequence it...
- Page 2 Play It Press a pad to trigger both gate and cv outputs Hold 2 or more pads and Cells will arpeggiate, the rate can now be changed with the left knob. The right knob changes the octave range. Sequence It Sequence the cells using the trigger inputs.
- Page 3 5v supply setting Cells requires +5V DC power to operate, as well as +/- 12V . On-board 12V to 5V conversion is provided if 5V isn’t available in your system. This is configured via a jumper on the rear of the module: In this setup, no external 5v supply is required Cells will provide 5V from the 12V rail (22mA draw).
