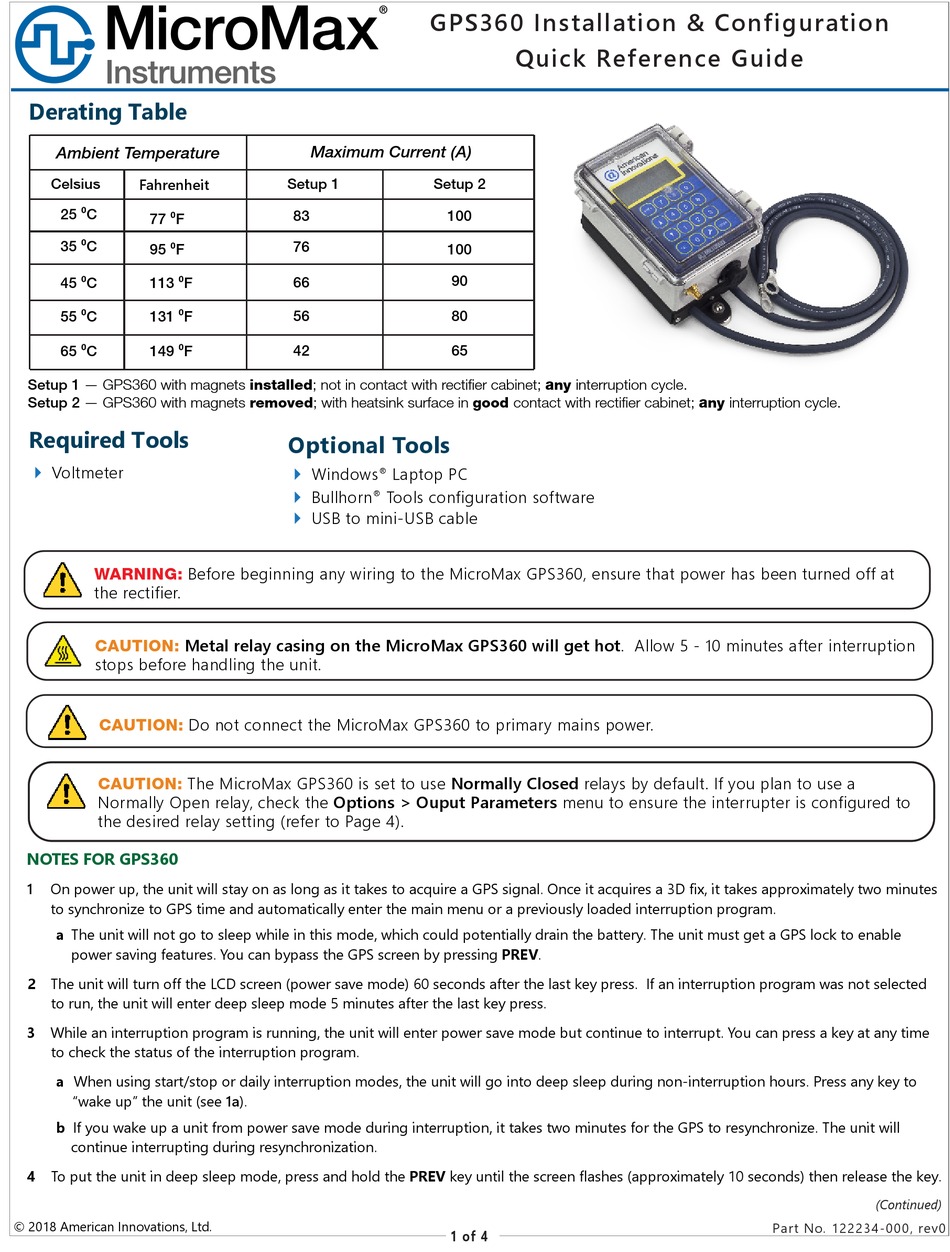

American Innovations MicroMax GPS360 Quick Reference Manual

Derating Table
Ambient Temperature
Fahrenheit
Celsius
25 C
77 F
35 C
95 F
45 C 113 F
55 C 131 F
65 C 149 F
Setup 1 — GPS360 with magnets installed; not in contact with recti er cabinet; any interruption cycle.
Setup 2 — GPS360 with magnets removed; with heatsink surface in good contact with recti er cabinet; any interruption cycle.
Required Tools
Voltmeter

Before beginning any wiring to the MicroMax GPS360, ensure that power has been turned off at
WARNING:
the rectifier.
Metal relay casing on the MicroMax GPS360 will get hot. Allow 5 - 10 minutes after interruption
CAUTION:
stops before handling the unit.
Do not connect the MicroMax GPS360 to primary mains power.
CAUTION:
The MicroMax GPS360 is set to use Normally Closed relays by default. If you plan to use a
CAUTION:
Normally Open relay, check the Options > Ouput Parameters menu to ensure the interrupter is configured to
the desired relay setting (refer to Page 4).
NOTES FOR GPS360
1 On power up, the unit will stay on as long as it takes to acquire a GPS signal. Once it acquires a 3D fix, it takes approximately two minutes
to synchronize to GPS time and automatically enter the main menu or a previously loaded interruption program.
a The unit will not go to sleep while in this mode, which could potentially drain the battery. The unit must get a GPS lock to enable
power saving features. You can bypass the GPS screen by pressing PREV.
2 The unit will turn off the LCD screen (power save mode) 60 seconds after the last key press. If an interruption program was not selected
to run, the unit will enter deep sleep mode 5 minutes after the last key press.
3 While an interruption program is running, the unit will enter power save mode but continue to interrupt. You can press a key at any time
to check the status of the interruption program.
a When using start/stop or daily interruption modes, the unit will go into deep sleep during non-interruption hours. Press any key to
"wake up" the unit (see 1a).
b If you wake up a unit from power save mode during interruption, it takes two minutes for the GPS to resynchronize. The unit will
continue interrupting during resynchronization.
4 To put the unit in deep sleep mode, press and hold the PREV key until the screen flashes (approximately 10 seconds) then release the key.
© 2018 American Innovations, Ltd.
GPS360 Installation & Configuration
Maximum Current (A)
Setup 1 Setup 2
83 100
76
100
90
66
56 80
42 65
Optional Tools
Windows Laptop PC
®

Bullhorn Tools configuration software
®

USB to mini-USB cable

1 of 4

Quick Reference Guide

(Continued)
Part No. 122234-000, rev0
