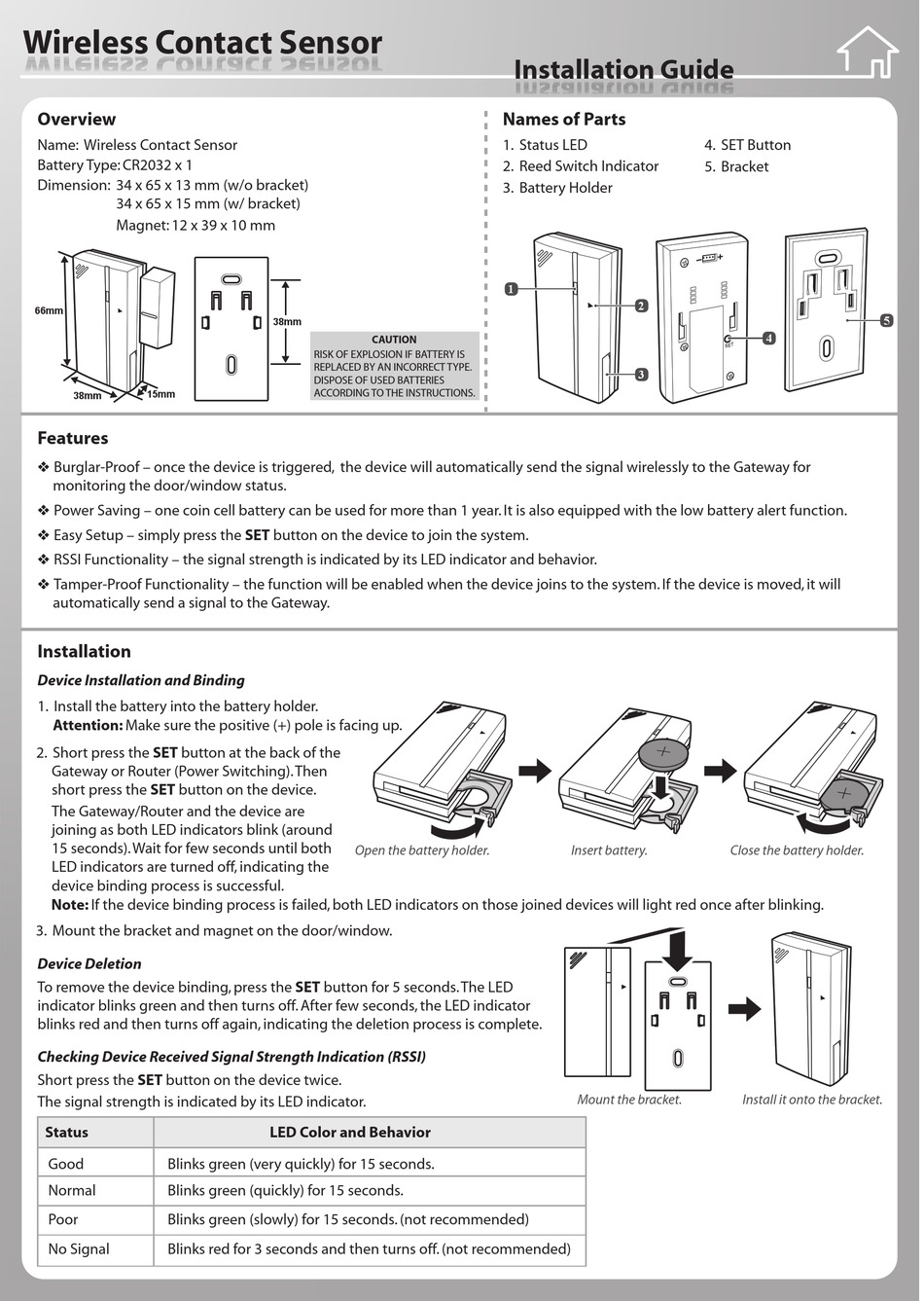

Jaycar LA5584 Installation Manual

Wireless Contact Sensor

Overview

Name: Wireless Contact Sensor
Battery Type: CR2032 x 1
Dimension: 34 x 65 x 13 mm (w/o bracket)
34 x 65 x 15 mm (w/ bracket)
Magnet: 12 x 39 x 10 mm
66mm
15mm
38mm

Features

Burglar-Proof – once the device is triggered, the device will automatically send the signal wirelessly to the Gateway for
monitoring the door/window status.
Power Saving – one coin cell battery can be used for more than 1 year. It is also equipped with the low battery alert function.
Easy Setup – simply press the SET button on the device to join the system.
RSSI Functionality – the signal strength is indicated by its LED indicator and behavior.
Tamper-Proof Functionality – the function will be enabled when the device joins to the system. If the device is moved, it will
automatically send a signal to the Gateway.

Installation

Device Installation and Binding

1. Install the battery into the battery holder.
Attention: Make sure the positive (+) pole is facing up.
2. Short press the SET button at the back of the
Gateway or Router (Power Switching). Then
short press the SET button on the device.
The Gateway/Router and the device are
joining as both LED indicators blink (around
15 seconds). Wait for few seconds until both
LED indicators are turned off, indicating the
device binding process is successful.
Note: If the device binding process is failed, both LED indicators on those joined devices will light red once after blinking.
3. Mount the bracket and magnet on the door/window.

Device Deletion

To remove the device binding, press the SET button for 5 seconds. The LED
indicator blinks green and then turns off. After few seconds, the LED indicator
blinks red and then turns off again, indicating the deletion process is complete.

Checking Device Received Signal Strength Indication (RSSI)

Short press the SET button on the device twice.
The signal strength is indicated by its LED indicator.
Status
Good Blinks green (very quickly) for 15 seconds.
Normal Blinks green (quickly) for 15 seconds.
Poor Blinks green (slowly) for 15 seconds. (not recommended)
No Signal Blinks red for 3 seconds and then turns off. (not recommended)
38mm
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
Open the battery holder.
LED Color and Behavior
Installation Guide

Names of Parts

1. Status LED
2. Reed Switch Indicator
3. Battery Holder
1
2
3
Insert battery.
Mount the bracket.
4. SET Button
5. Bracket
4
S E T
Close the battery holder.
Install it onto the bracket.
5
