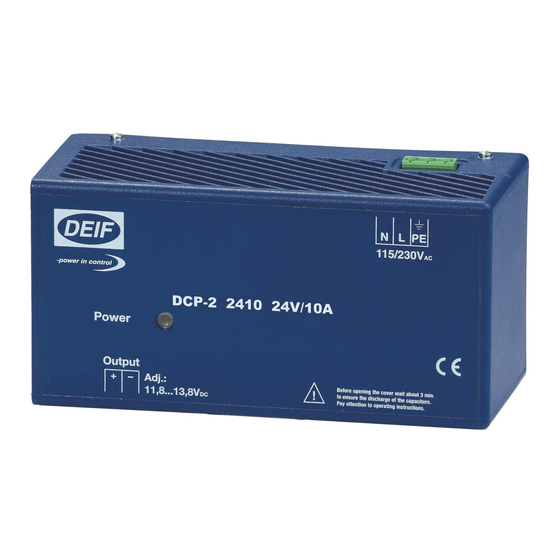

Installation instructions
Type DCP2
Battery chargers
4189320008D (UK)
•
Easy installation - DIN-rail mounting
•
Automatic recovery from overload conditions
•
5-10-20-40A types
•
Switch mode power technology
•
Extremely low ripple <100mV
DEIF A/S
Frisenborgvej 33, DK-7800 Skive Fax:
Denmark
+
-
Tel.:
E-mail: deif@deif.com
+ -
(+45) 9614 9614
(+45) 9614 9615
Advertisement
Table of Contents
Summary of Contents for Deif DCP2
- Page 1 Installation instructions Type DCP2 Battery chargers 4189320008D (UK) • Easy installation - DIN-rail mounting • Automatic recovery from overload conditions • 5-10-20-40A types • Switch mode power technology • Extremely low ripple <100mV DEIF A/S Tel.: (+45) 9614 9614 Frisenborgvej 33, DK-7800 Skive Fax:...
- Page 2 292 x 185 x 130 mm (DCP2-2440) Distance for con- vection: 100 mm above and below the DCP2, 30 mm to each side Mounting: DIN-rail, EN 50022-35 Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 2 of 8...
- Page 3 Installation instructions, DCP2 Safety: VDE0805/EN60950/IEC950 Protection: Class I Deg. of protection: IP20 Leakage current: <0.75mA (47-63Hz line frequency) (DCP2-2420 3-phase supply and DCP2-2440: <3.5mA) Weight: DCP2-1205 approx. 0.8 kg DCP2-2405 approx. 0.8 kg DCP2-1210 approx. 1.2 kg DCP2-2410 approx. 1.2 kg DCP2-2410/115V approx.
- Page 4 Functions and settings Besides the output terminals (secondary side) the DCP2 has a trim potentiometer for setting of the output voltage. By means of an insulated slotted screwdriver or adjusting pin the output voltage can be set in the range 23.5-27.5V respectively 11.8-13.8V.
- Page 5 Switch - external (setting 3A) CE marking All variants of the DCP2 are CE marked to the EMC Directive and the Low Voltage Directive. However, the following comments concerning EN 61000-3-2 (limits for harmonic current emissions) apply and must be observed upon installation of the 10A...
- Page 6 Alternatively, permission to connect the 10A and 20A variants must be given by the local power supply authority of the place of installation of the DCP2, as stipulated by EN 61000-3-2, clause 4. In this case the entire CE marking provided by DEIF A/S, including to EN 61000-3-2, is valid.
- Page 7 Installation instructions, DCP2 Appendix Type Dimensions DCP2-1205 DCP2-1210 DCP2-2405 DCP2-2410 -2410/115V 4189320008D (UK)
- Page 8 Type Dimensions DCP2-2420 DCP2-2440 Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 8 of 8...
