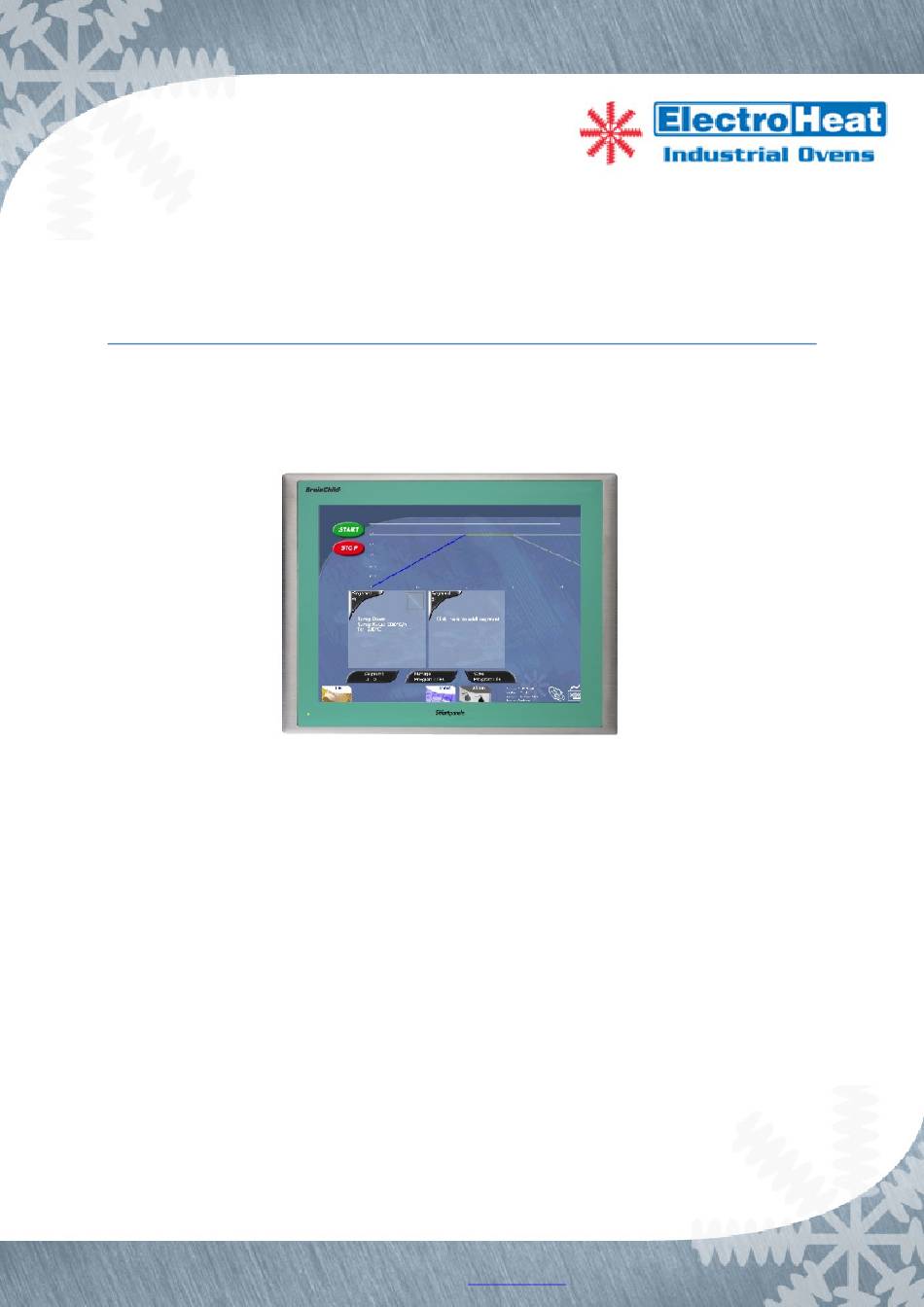

- Page 1 Side 1 of 14 Rev:0 Furnblog X5 ElectroHeat Control System ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg Email: info@electroheat.se Internet: www.electroheat.se...
-
Page 2: Table Of Contents
3. Trend ..............................11 4. Alarm ..............................11 5. Log file .............................. 12 6. Keyboard ............................13 7. Setup ..............................13 ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 3: Start Of Control System
“Clear alarm list and reset alarms”. Alarm starts flashing Alarm at start Button to clear alarm list Alarm list ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 4: Program
Ramp Down: When cooling with certain rate is required, desired value is typed in here. Program Down: When temperature in “Program done” has been achieved the program will end and stop logging temperature. ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701... -
Page 5: Email: Info@Electroheat.se
Select a segment type, enter the desired values and press the right button “Add segment”. Select Segment Type To add the second segment click on the Segment box 2 and choose a segment type for this segment. Segment 2 ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 6: Email: Info@Electroheat.se
To delete or change a segment, press on desired segment and press either of the two right buttons “Delete Segment” or “Change Segment”. Delete button Change button Delete or change segment ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 7: Save Program File
When you have pressed “Save Program File” you will type in a name for the file and press either “Save file to USB” or “Save file to System”. Save program file ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701... -
Page 8: Manage Program File
Start and stop of heating program is managed with buttons in the upper left corner. Start heating program Stop heating program Start and stop heating ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 9: Email: Info@Electroheat.se
(+-). Heating Output: Shows power for heating in percentage used for the furnace. Cooling output: Shows power for cooling in percentage used for the furnace. ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701... - Page 10 When you return to the screen with the program graph press “Update” in the upper left corner. Update Program Picture 1 - Update ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg...
-
Page 11: Trend
During heat treatments, Alarms can appear, and the Alarm tab will start to flash. By clicking on the tab, a list of alarms will be shown. To clear and reset the alarms press ”Clear alarm list and reset alarms”. Alarm List ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 12: Log File
The symbol will start flash in red and green. N.B! Don’t take the USB memory out until it has stopped flashing. (The transfer of file can be done from any window). Save to Save log file to USB ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg... -
Page 13: Keyboard
Furnblog setup is entered by turning the maneuver breaker from 0 to 1 to make a restart of the display. Therafter ”Enter Setup” in the right upper corner is pressed. Enter Setup ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701... - Page 14 Side 14 of 14 Rev:0 OBS! DON’T CHANGE ANY PARAMETERS WITHOUT CONSULTING ELECTROHEAT! To clear the log files press the button ”Clear Log Files”. Clear logfiles ElectroHeat Sweden AB Phone: +46 31 764 36 30 VAT No: SE556101713701 Box 8065 Fax: +46 31 54 47 02 402 78 Göteborg...
