2647 37th Ave. S Unit 1 Minneapolis MN 55406
Phone: 612-568-3498 • E-mail: info@bikefixtation.com
www.bikefixtation.com
_____________________________________________________________________________________________
Installation Instructions for Bike Fixtation Electric Bike
Pump Manual 311111 RevD

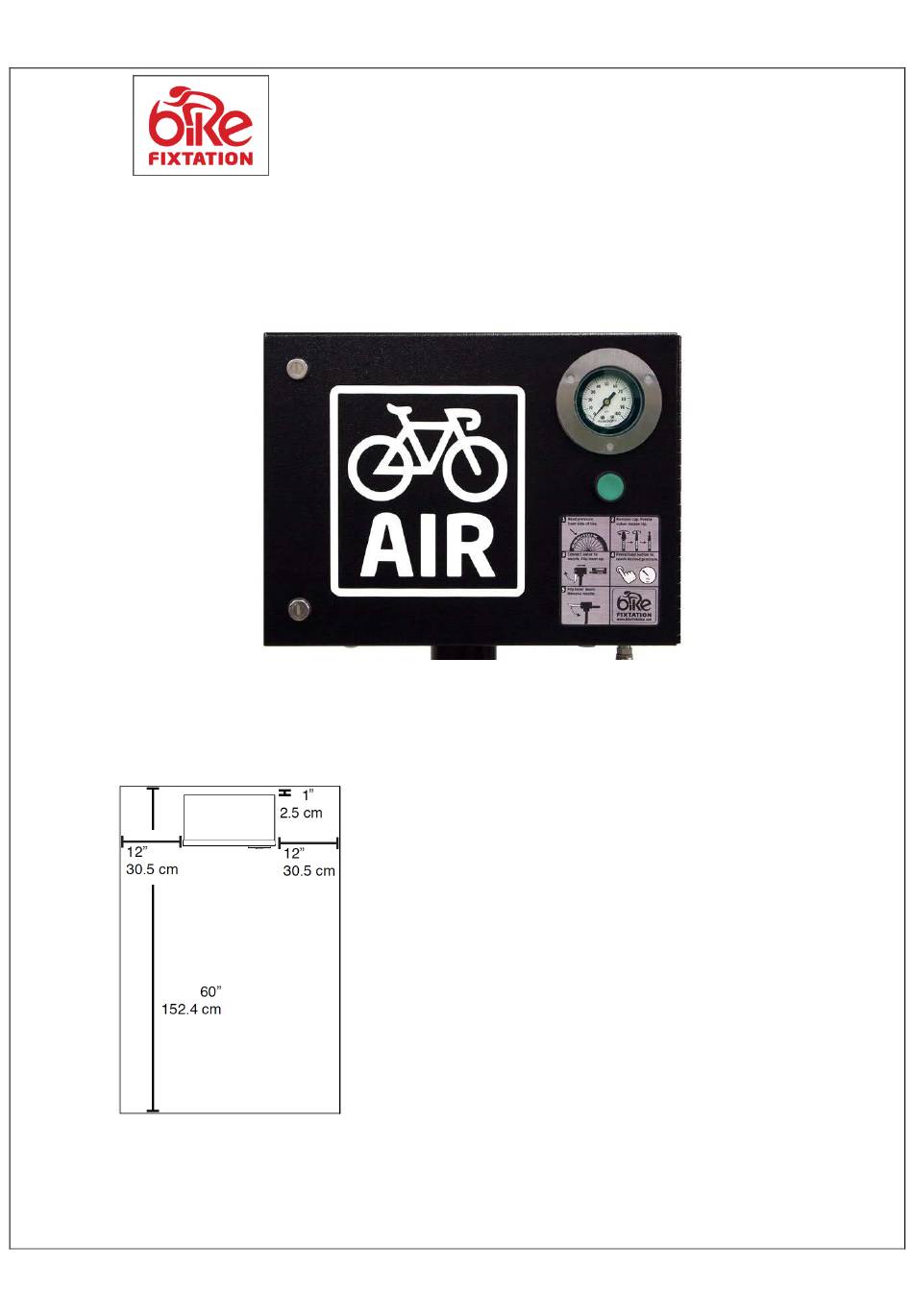

Parallel Wall or object Setbacks:
Both sides of the electric public bike pump should be at least 12" from walls or other obstructions.
If pedestal mounting, we suggest mounting it tight against a wall. See Figure 1.
Figure 1: Setbacks
Advertisement
Related Manuals for Bike Fixtation Electric Public Bike Pump
Summary of Contents for Bike Fixtation Electric Public Bike Pump
- Page 1 Pump Manual 311111 RevD Parallel Wall or object Setbacks: Both sides of the electric public bike pump should be at least 12” from walls or other obstructions. If pedestal mounting, we suggest mounting it tight against a wall. See Figure 1.
- Page 2 Typical Tools Needed for Installation Tape Measure ½” Masonry Drill Bit Drill (Hammer drill recommended) Hammer Anchor Set Tool (included) Triple Slot Nut Driver (included) 3/8” drive ratchet Marker or Pencil SAE hex key set Level Wall Mounting or Vending Machine Mounting 1.
- Page 3 The anchor size is designated by the inside diameter of the anchor. The Bike Fixtation electric pump pedestal comes with 3/8”-16 anchors. The diameter of the hole to be drilled is the same size as the outside diameter...
- Page 4 5. When fastening to solid concrete with a drop in anchor, a hole must be drilled into the base material. A hammer drill should be used as it will drill the best quality hole. Once the bit is chucked into the hammer drill, the depth of the hole to be drilled can easily be set by using the depth gauge on the drill or by wrapping the bit with tape at the required depth.
- Page 5 11. Check how level the pump is and level with washers. Installation of vibration absorbing feet 1. The Bike Fixtation electric pump comes to you with shipping screws mounting the compressor to the enclosure. For optimum performance and quiet operation, vibration absorbing feet are included and must be installed.
-
Page 6: Electrical Hook-Up
Do not over tighten screws! Electrical Hook up 1. The Bike Fixtation electric pump is meant to be installed by a licensed electrician. 2. We suggest running rigid electrical conduit to hard wire the pump. This will help to avoid tampering. -
Page 7: Air Line Hook Up
Air Line Hook up 1. The Bike Fixtation electric pump comes without the airline connected. Ensure PTFE tape is installed on pipe fitting and tighten hose into fitting at the base of the enclosure. Use two wrenches to tighten.
