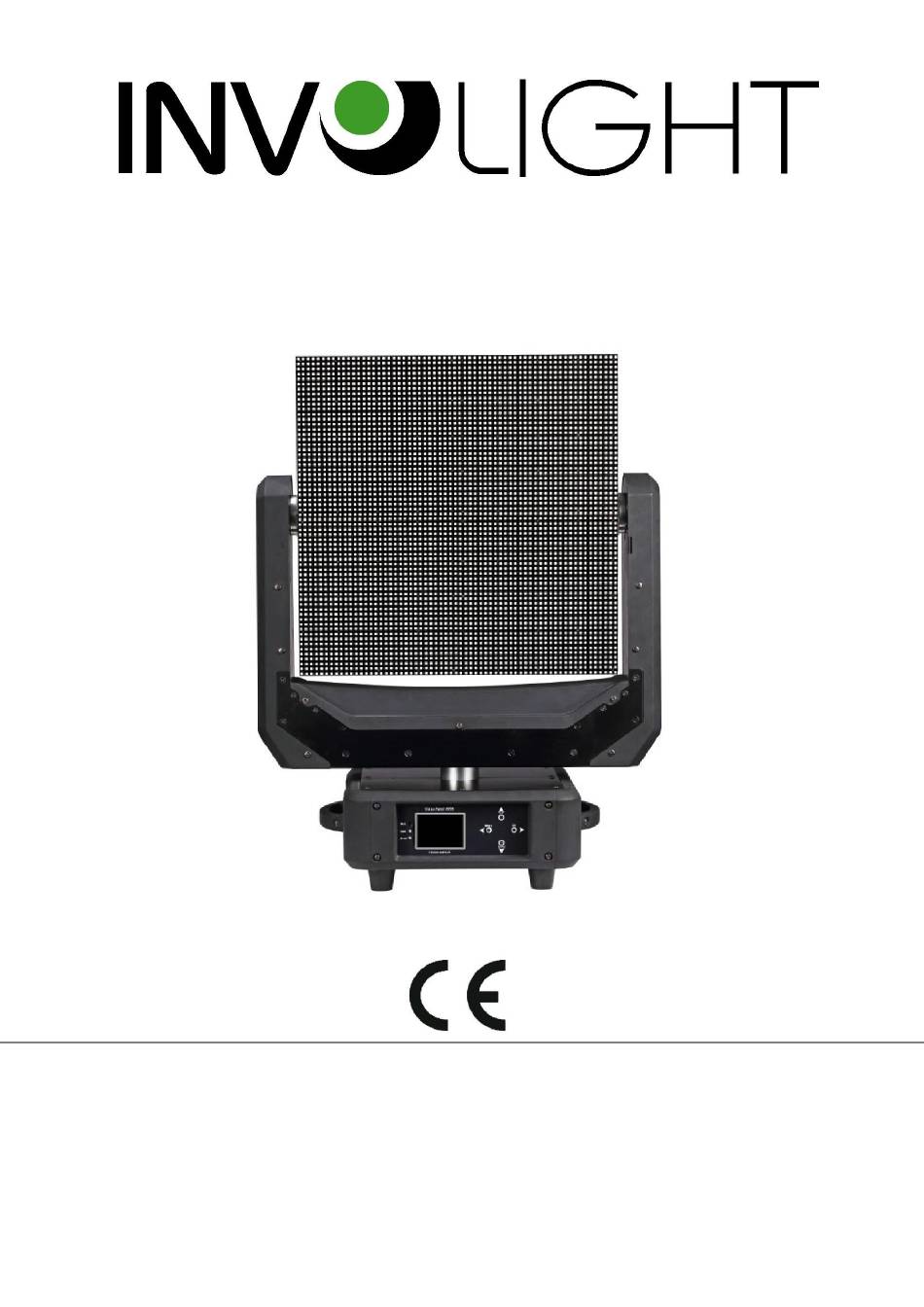

- Page 1 MH VIDEO HD User Manual Thanks for choosing our goods please read this manual carefully before your operating and keep this manual for future needs...
- Page 2 Thank you for purchasing GVP4096, every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
-
Page 3: Installation
is subject to change without notice. We reserve the right to modify and upgrade its range of products, with no obligation to integrate these changes into products already sold. Warning ● To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. - Page 4 Specifications and Features: • DMX Channel: 15CH • Pixel pitch (mm): 6 • LED Source: 4096pcs SMD5050 RGB LED • Continuous PAN and TILT rotation • Dynamic color macro effect with variable speed • Electronic dimmer from 0 to 100% without color variation •...
- Page 5 Product View Menu Operation • DMX: When DMX Signal in, the LED will be flash • ERR: When the Light error, the LED will be flash • Mic: Sound Control (No use now) • Menu: Click enter into main menu to choose the function •...
- Page 6 Back Panel The Connection Powercon Blue: Use the power cable connect the light Powercon White: Use powercon cable to supply the power to another light 3pin&5pin XLR connector: Use DMX Controller to connect the light. It can control the XY movement, built-program.
- Page 7 DVI Mapper can auto recognize the device. Set the video panel size, for example if 10pcs GVP4096, it will be Width: 640, Height: 640...
- Page 8 Draw the connected device to this window, you can move at any position in this image. After set well, the computer will show the capture window.
- Page 9 Open the Madrix, set the Matrix Generator, choose the DVI, set the effect. Then show two windows, one is from the Madrix, one is DVI mapping, Make the two windows in same position. For example, if not in same position the light will show like this:...
- Page 10 It can use router to connect the light and computer, then no need set the IP address and universal.
- Page 11 Menu DMX: Choose the DMX Address Network: Set the Network address, Net Mask and Universe WorkMode: Choose the work Mode Setting: Set the light parameter Reset: Reset the light Home: Return to intial interface DMX Address Set Push the UP or Down to choose the DMX Address, after push OK to confirm.
- Page 12 Network Set Work Mode Set DMX: DMX Mode ARTNET: Internet work Mode Slave: Slave Mode Auto: Auto Run Mode Manual: manual set the light value...
- Page 16 Dimmer Strobe Green Blue Program 1 – Program 15 Program 16 – Program 29 Program 30 Auto run program Speed of program Movement for X-axle CH10 Adjustment for X-axle CH11 Movement for Y-axle CH12 Adjustment for Y-axle CH13 XY Speed CH14 Reset CH15...
-
Page 17: Troubleshooting
Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The unit does not work,no light and the fan does not work a. check the connection of power and main fuse. b. - Page 18 4. One of the channels is not working well a. The stepper motor might be damaged or the cable connected to the PCB is broken. b. The motor’s drive IC on the PCB might be out of condition 5. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output.
- Page 19 Warranty The GVP4096 fixture is guaranteed against manufacturing defects for the duration of one (1) year from the date of purchase. This warranty does not cover the unit for evidence of physical shock or damage caused by abuse or any use not in accordance with the operating conditions set forth in the present user manual.
