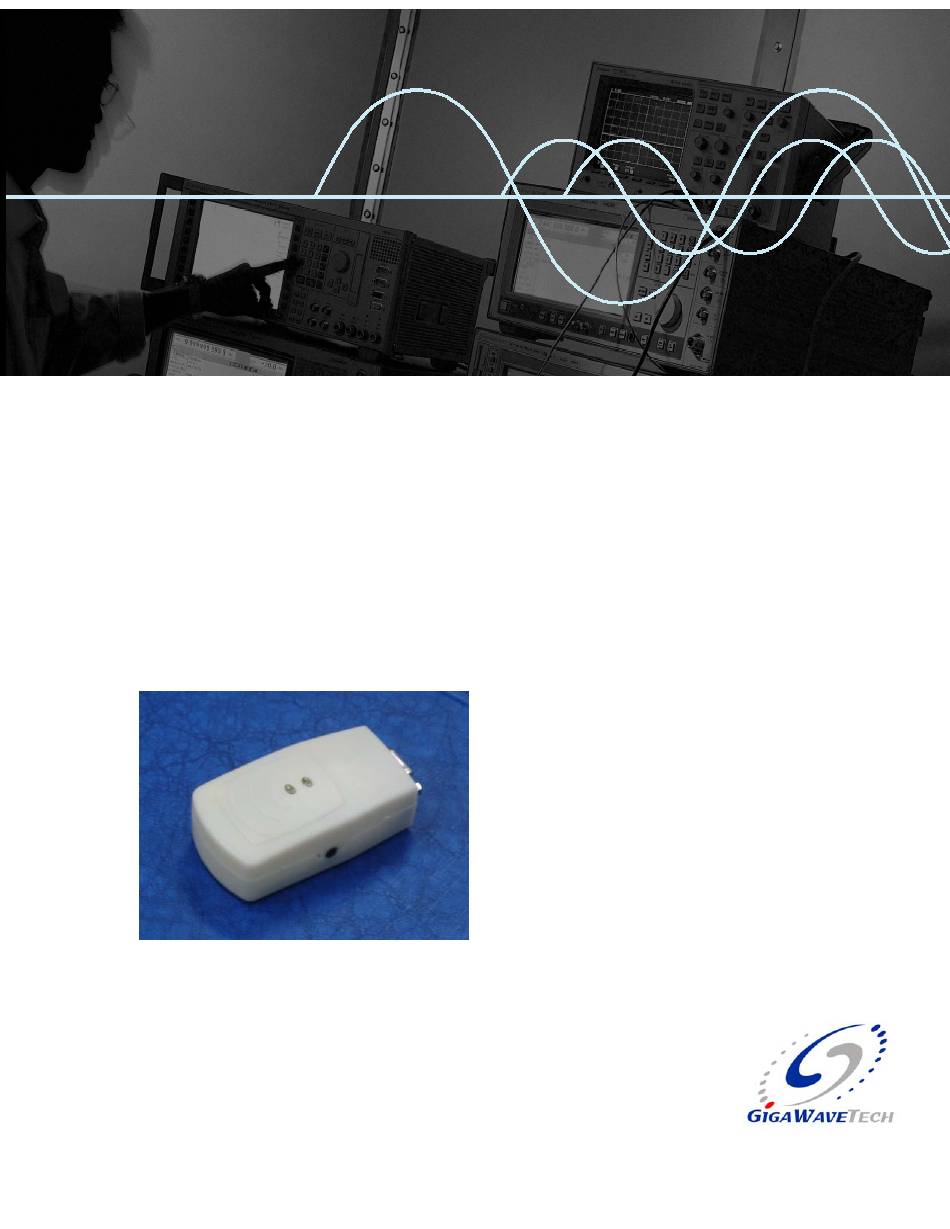

- Page 1 Bluetooth™ Serial Port Dongle GWT-SPP1 Users’ Guide The easy way to add Bluetooth functionality to your equipment with a serial port. GigaWaveTech (Pte) Ltd (a member of schmidt electronics asia)
- Page 2 Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to equipment may be made by GigaWaveTech Pte Ltd at any time and without notice. Such changes will however be incorporated into new editions of this manual. Hardware, software and firmware mentioned in this document are subject to continuous development and improvement.
-
Page 3: Table Of Contents
Table of Contents Introduction ........................ 4 Accessories ....................... 4 Parts of the GWT-SPP1..................... 4 Installation Procedure ....................5 Connecting to a Host PC..................5 Connecting to Power Source.................. 5 Transferring Data from Other Bluetooth Devices to Host PC........6 Using the Light Emitting Diodes (LEDs)..............7 Using the Pairing Switch .................... -
Page 4: Introduction
Congratulations on the purchase of your GigaWaveTech Bluetooth Serial Port Dongle GWT- SPP1. The GWT-SPP1 is a plug and play adapter that allows you to easily add Bluetooth wireless connectivity to the serial port of your equipment. In itself, the GWT-SPP1 does not require installation of software or drivers on the host machine. -
Page 5: Installation Procedure
Source. 5. The Host PC is ready to receive data from other Bluetooth devices through the serial port with the serial port settings matching that of the GWT-SPP1. The GWT-SPP1 has an interface configuration of baud rate 115.2kbps, using 8-bit data with 1 start and 1 stop bit. -
Page 6: Transferring Data From Other Bluetooth Devices To Host Pc
The fixed baud rate is 115.2kbps, using 8-bit data with 1 start and 1 stop bit. The host PC must same matching serial port settings. The GWT-SPP1 attached to the host PC can be used with other Bluetooth devices supporting Bluetooth serial port profile (SPP) to transfer data between the two machines. Some possible configurations are illustrated as shown below. -
Page 7: Using The Light Emitting Diodes (Leds)
Once the other device is installed, let it discover the GWT-SPP1 dongle. NOTE: If there is more than one GWT-SPP1 dongle in the vicinity for it to discover, you may want to note the Bluetooth device address of your dongle the product label. -
Page 8: Troubleshooting
TROUBLESHOOTING Symptom Possible Cause Action LED does not light up Dongle is not receiving Make sure the AC-DC adaptor output is power securely connected to the dongle and the wall outlet is switch ON Dongle internal error Unplug and re-insert the AC-DC adaptor Green LED does not Dongle internal error Unplug and re-insert the AC-DC adaptor... -
Page 9: Specifications
SPECIFICATIONS Bluetooth: • Bluetooth Protocol - Bluetooth 2.45 GHz ISM band frequency hopping • Bluetooth Antenna – Integrated • Bluetooth Radio range - Up to 30 ft (10 m) • Bluetooth Connection - Point-to-point • Bluetooth Security – Supports security mode 1 (no encryption) RF/Radio: •... - Page 10 FCC part 15 • Europe: ETS 300 328, ETS 300 826, EN 60950 Hardware warranty: • One (1) year • For warranty information, you can contact us at: Email: info@gigawavetech.com WWW: http://www.gigawavetech.com Telephone: +65 6377 4801 Fax: +65 6375 0966...
-
Page 11: Useage & Safety Considerations
Bluetooth equipment, before using this product. • Modifications without the written permission of GigaWaveTech (Pte) Ltd may void your authority to operate this card. • Use with the supplied AC-DC adapter only. Use of unauthorized DC adapter may damage your dongle and void the warranty. - Page 12 frequency electromagnetic fields (microwaves) in the frequency range of 2.4 to 2.5 GHz. The output power is low at 0.0025 watt maximum. • Your Bluetooth device is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with a properly certified Bluetooth device.
-
Page 13: Appendix A: Limited Product Warranty
APPENDIX A: LIMITED PRODUCT WARRANTY GigaWaveTech (Pte) Ltd (”GigaWaveTech”) warrants this product to be free from defects in material and workmanship at the time of original purchase by a consumer, under normal use and service, for a subsequent period of one (1) year. - Page 14 LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL GIGAWAVETECH BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, DAMAGE TO PROPERTY, OR DAMAGES FOR PERSONAL INJURY, TO THE FULLEST EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
-
Page 15: Copyright Notice
GigaWaveTech (Pte) Ltd. Bluetooth and the Bluetooth logos are trademarks owned by the Bluetooth SIG, Inc., USA, and licensed to GigaWaveTech (Pte) Ltd. All other brand and product names are trademarks of their respective holders. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written permission of GigaWaveTech (Pte) Ltd. -
Page 16: Regulatory Compliance Notice
REGULATORY COMPLIANCE NOTICE The GWT Bluetooth Serial Port Dongle is designed to be compliant with the rules and regulations in locations where they are sold, and will be labeled as required. The card is type approved, which means that users are not required to obtain license or authorization before use. -
Page 17: Life Support Policy
LIFE SUPPORT POLICY GIGAWAVETECH’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL MANAGEMENT GIGAWAVETECH PTE LTD As used herein: 1. Life support devices or systems are devices or systems which, (a) are intended...
