Summary of Contents for Car Top Cargo CTC-18S

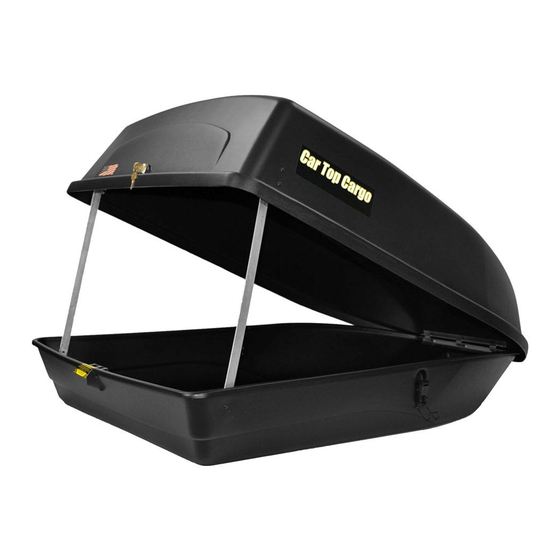

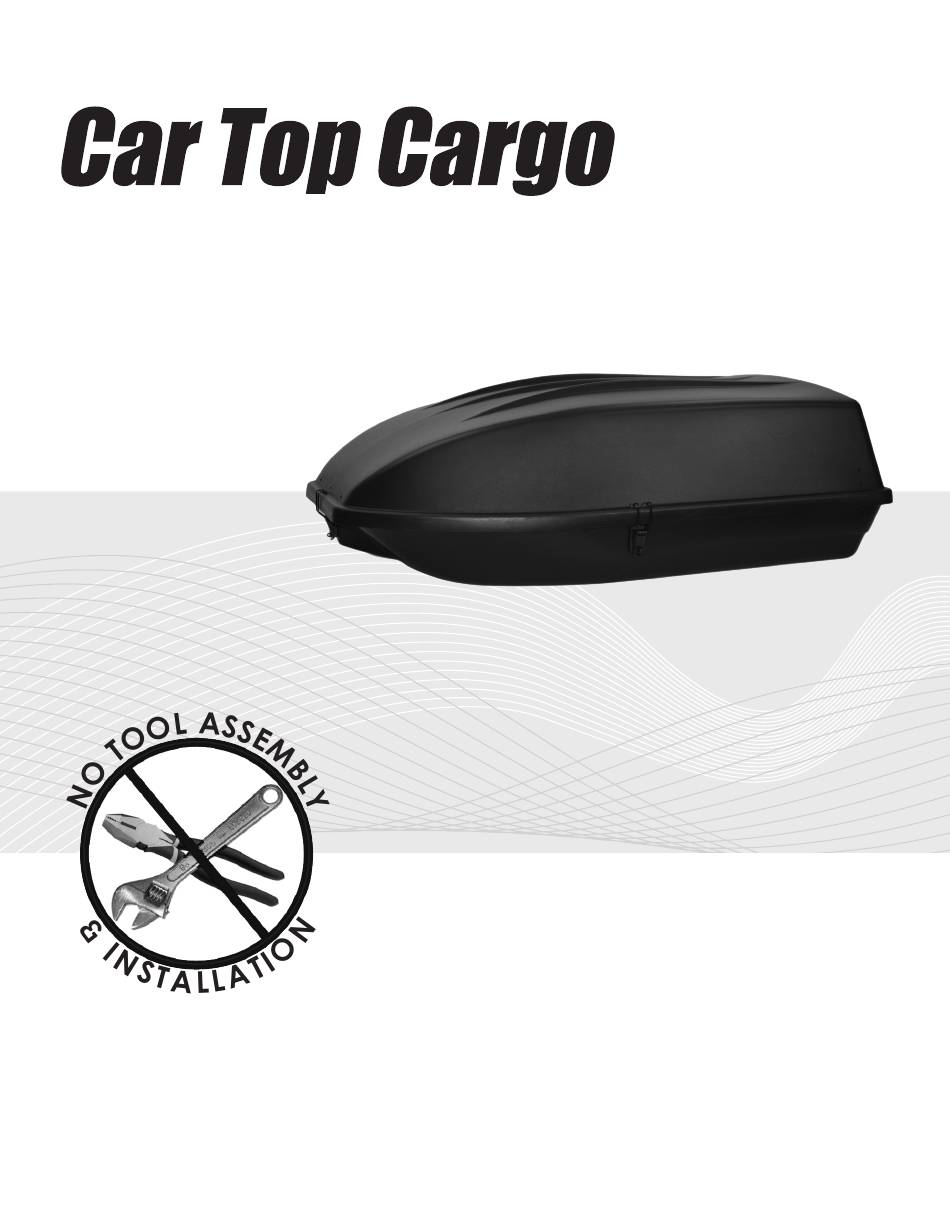

- Page 1 User Manual 18 Cu. Ft. Cargo Carrier...
- Page 2 PARTS Roof rack and cross rails are not included. Carrier must be mounted on a roof rack with cross rails. COMPONENTS C. MOUNTING B. THREADED BACK PLATE, D. CAUTION E. KEYS, F. CLIP HOOKS, A. MOUNTING KNOBS, Qty: 8 DECAL, Qty: 1 Qty: 2 Qty: 4 BRACKET, Qty: 4...
- Page 3 CAUTION READ INSTRUCTIONS BEFORE ASSEMBLY OR WARRANTY IS VOID ● Prior to assembly and installing the cargo carrier carefully read and follow all instructions printed below. Assembly and installation is your responsibility. The manufacturer’s warranty is exclusively limited to material and workmanship defects and is exclusively limited to replacement of a defective cargo carrier.
- Page 4 INSTRUCTIONS Front of Base Back of Base Unlocked Locked Place the base on the ground. Remove On the back of the lid, locate key and turn it to all FOUR clip hooks (F) located on cargo be parallel with the ground to “unlock” and then carrier.
- Page 5 INSTRUCTIONS / INSTRUCCIONES / INSTRUCTIONS Front of carrier bale latch clip hook Close the cargo carrier. Pull up on the lid in the Engage the bale latch on the front of the cargo front of the cargo carrier to be sure hinge tabs carrier.
- Page 6 INSTRUCTIONS Lift the back of the cargo carrier lid to Raise the TWO uprights and place into locked approximately 30° as shown above. position on the bracket as shown. Mounting Bracket Mounting Plate Place the mounting bracket (A) through the Then slide the mounting plate (C) over the pre-drilled holes from below the vehicle threaded posts inside the cargo carrier.
- Page 7 INSTRUCTIONS Load cargo carrier with travel gear paying careful attention to proportionately distribute weight and not to exceed the maximum allowed weight of either the box or cross rails. Side alignment brackets clip hook YES! BOTH side alignment brackets Close cargo carrier. Be sure that BOTH side must NOT be visible! alignment brackets are NOT visible.
- Page 8 INSTRUCTIONS Yellow Warning Label Visible Yellow Warning Label Not Visible Be sure cargo carrier is fully closed. When this Close up of warning label which should NOT occurs, the yellow warning label will no longer be visible when cargo carrier is properly closed. be visible.
- Page 9 WARNING CAUTION Check that all THREE bale latches are closed and secured with THREE clip hooks. Be sure a FOURTH clip hook is placed on center hinge tab on the inside front of cargo carrier. Lid will not lift up when pulled.
-
Page 10: Additional Instructions
Material won’t chip or crack. You will not be using the existing set of back holes. Repeat on Other Side And now you are ready to install your Car Top Cargo Carrier! Find out more about roof racks and cargo carriers we have.
