Videofied ISD Product Install Sheet

Product presentation
• Completely wireless - Battery powered with 3V
Lithium battery for 2 years battery life.
• Dual tamper function provides detection for both
wall and cover tamper.
• Transmits check-in/status signals every 8
minutes
85dB output level at 3m
•
• 24h detection
Installation and Programming
The following provides summarized steps for device
programming and testing.
1
Mount the base to the wall.
2
Insert 3V DC CR123A Lithium battery , observing correct
polarity and close the battery cover.
3
Mount the detector on its base. The yellow light
should switch off.
4
With the programming keypad, browse to the ADD A NEW
DEVICE menu (Level 4).
5
Press OK/YES. The keypad displays PRESS PROGRAM
BUTTON OF DEVICE.
6
Press program button. The button blinks in green. Wait
for keypad to display SMOKE DETECT. n RECORDED.
7
Press OK/YES. The display shows RADIO RANGE TEST?
Press OK/YES again to run the test. The keypad display shows
TEST IN PROGRESS.
8
Make sure the siren is flashing indicating good
communication with the control panel. The test result must
stabilize at 8/9 as a minimum.
If the radio range level is below 8/9, change the location of the
detector to obtain satisfactory radio range level.
9
Press OK/YES to end the radio range test then ESC NO.
10
Name the detector. When finished, keep ESC NO pressed
to exit from configuration mode.
For full programming details, please refer to the control panel
installation manual.
P R O D U C T I N S T A L L
www.videofied.com
ISD Smoke Detector
S H E E T
Installation guidelines
RF testing will ensure good communication between the
control panel and all system devices. Install the detector and
other system devices in the order of the following steps :
>
Program the detector and all other devices into the control
panel and test RF communication from each intended device
location to the control panel.
>
Mount the detector at the final location.
Indicator light
> Yellow blink with 3 beeps:
> Continuous yellow blink:
> Red blink once every 334 seconds:
> Red blink once every 10.7 seconds:
Reduced sensitivity operation (during 10 minutes)
> Fixed red light with 3 loud beeps:
Doc. - Ref. 2110-ISD
Version : February 2015

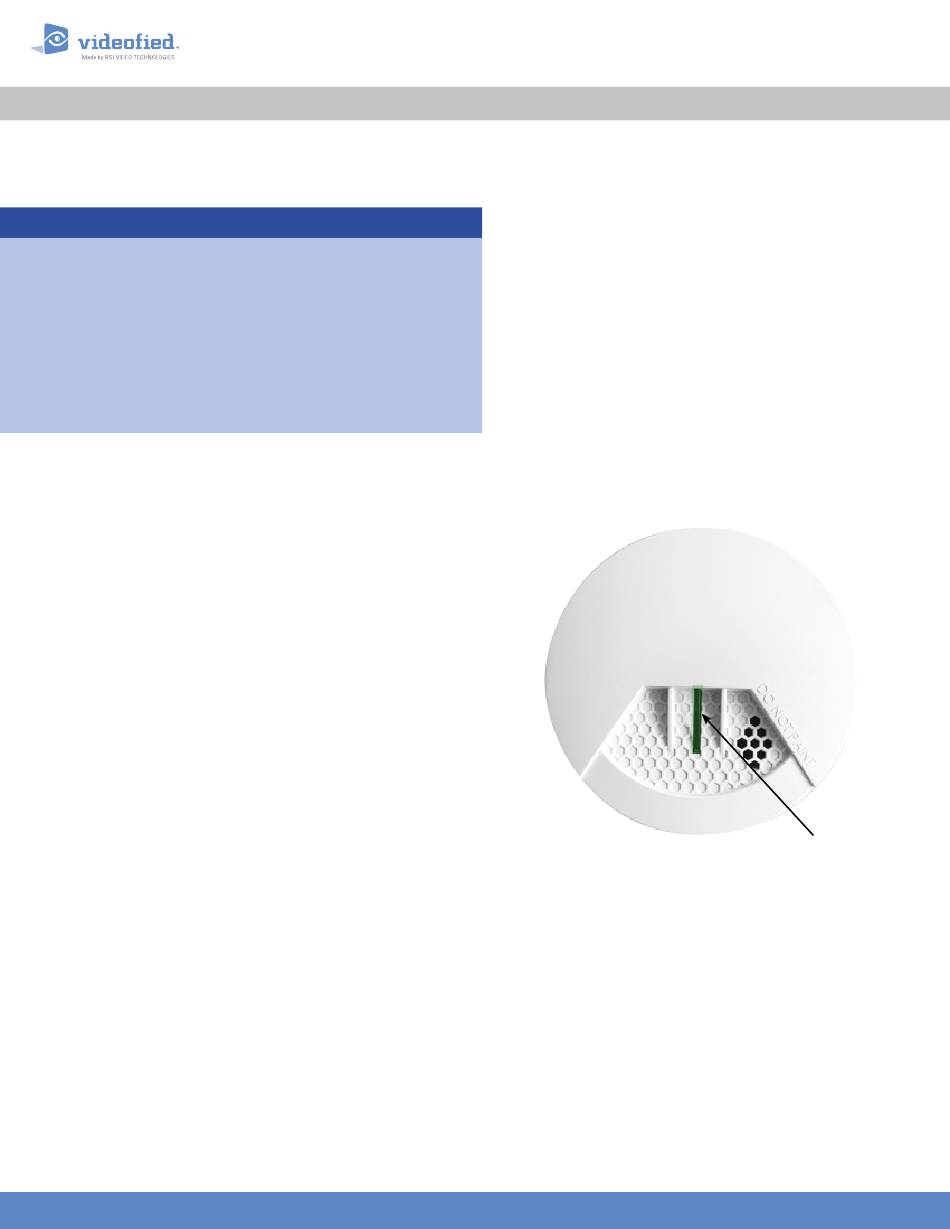

Program Button
and Indicator light
Malfunction
Low Battery
Normal Operation
Alarm
