Summary of Contents for Devolo Home Control Smoke Detector

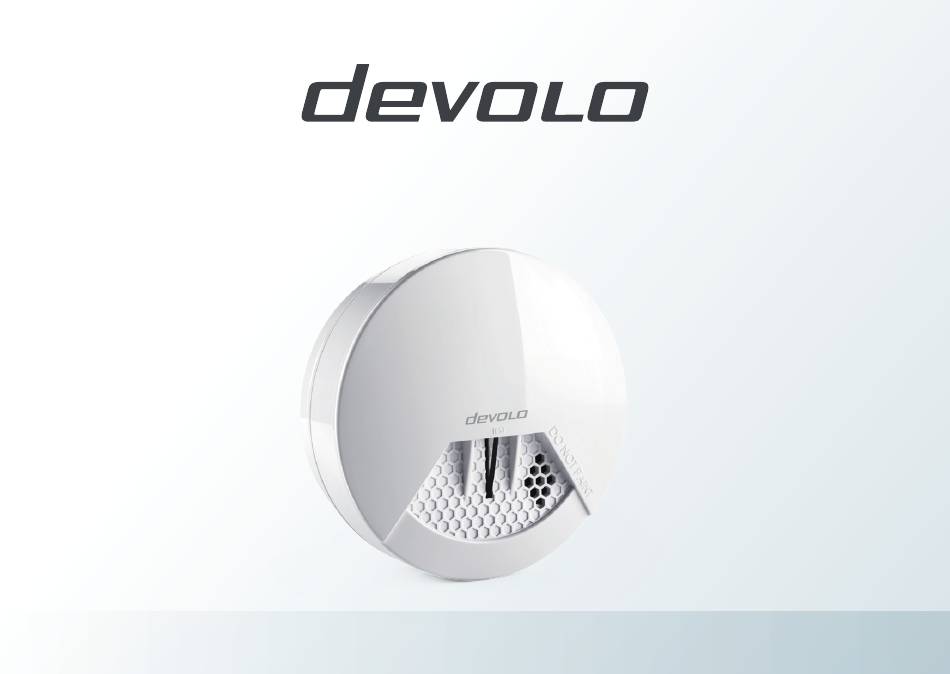

- Page 1 Home Control Smoke Detector first steps...
- Page 2 Important note that should be observed. Background information and configuration tips for your device. Intended use Use the Home Control Smoke Detector as described in these instructions and in the Home Control online help to prevent damage and injuries. CE conformity...
-
Page 3: Devolo Home Control
-compatible control unit such as the Home Control Central Unit from devolo. Use its Home Control Portal to coordinate the Home Control Smoke Detector and all other Home Control devices. You can access the Home Control Central Unit through the my devolo app and at www.mydevolo.com... - Page 5 The Home Control Smoke Detector The Home Control Smoke Detector alerts you acoustically with an audible signal, visually via an LED light, via text message, e-mail or an app. Thanks to the mobile and simultaneous notification sent to multiple mobile phone numbers and e-mail addresses that you select, you can respond immediately even when on the go.
- Page 6 Safety notes Fasten the Home Control Smoke Detector on the ceiling in the centre of the room or at least 50 cm away from walls, ceiling joists or fixtures. The room may be up to 6 m in height. Fasten the Home Control Smoke Detector as horizontally as possible (inclination an- gle no more than 20°...
- Page 7 > 60 m² or is interrupted by ceiling joists. If you install the Home Control Smoke Detector on a balcony of > 2 m length and width and a surface > 16 m², an additional Home Control Smoke Detector is required...
- Page 8 In elongated rooms, the Home Control Smoke Detector may be fastened up to 7.5 m from the front side of the room. When using multiple Home Control Smoke Detec- tors, the distance between the devices may be no more than 15 m.
- Page 9 After each battery change, the smoke detector must be checked for proper operation using the test equipment (see section Test alarm on page 12). The Home Control Smoke Detector requires a commercially available CR123 3V lithium battery. For information on replacing the battery, please refer to the Home Control online help.
- Page 10 Installing the Home Control Smoke Detector Only use the Home Control Smoke Detector indoors. Turn the detector anti-clockwise to unscrew it from the housing backplate and access the battery com- partment. Battery compartment Screws Test button with Housing backplate safety cap...
- Page 11 Close the battery compartment cover. The installation was successful if the LED on the Home Control Smoke Detector flashes yellow once after about 10 seconds and you hear a short alarm tone. After each battery change, the smoke detector must be checked for proper...
- Page 12 Registering the Home Control Smoke Detector on the control unit (e.g. Home Control Central Unit) When you plug in the Home Control Central Unit from devolo, follow the description in the section devolo Home Control on page 3 to call up your Home Control Central Unit and select Devices Add device devolo Home Control Smoke Detector.
- Page 13 Steam and smoke from cooking can also trigger an alarm. Therefore, the Home Control Smoke Detector may not be installed in the kitchen or bathroom. If the Home Control Smoke Detector reports an alarm, first check whether there is a source of fire. If fire is discovered, call the fire brigade.
-
Page 14: Service And Warranty
* Detailed information about the actual costs of the telephone calls can be found on the devolo website. Disposal Neither the Home Control Smoke Detector nor the battery may be disposed of with the household waste. In- stead, you can return these at no charge at your municipal collection point or at the retailer (e.g. supermarket,... - Page 15 Appendix Here you will find more information about the Home Control Smoke Detector. For the online version of the CE declaration and the description of services, refer to: www.devolo.co.uk/documents/Smoke-Detector. To view the documents on your computer/laptop you need a PDF reader such as Acrobat Reader from Adobe®.
- Page 16 AG Charlottenburger Allee 60 52068 Aachen – Germany www.devolo.com...
