Summary of Contents for Caldwell 1099107

  • Page 1 Instructions #1100864 REV. A Product #1099107 INSTRUCTIONS...

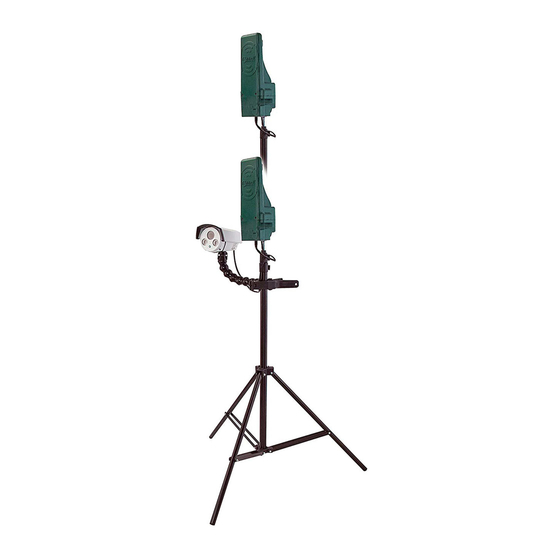

  • Page 2 CONTENT A. HD Camera E. Router Stand Stake B. Flexible Camera Mount F. Wall Charger C. Long Distance Transmitter G. Storage/Carrying Case D. Router Stand (not shown) This system is designed to deliver a live video stream of a target to the shooters location up to 400 yards away.
  • Page 3 WARNINGS Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 2. Alternatively, http://www.btibrands.com/ provides direct links to the appropriate apps for the different mobile platforms supported by Caldwell. 3. Once the app is installed you will see the Caldwell Ballistic Precision Target Camera app icon in your smartphone home screen.
  • Page 5 SETUP cont. (Photo 5) (Photo 6) Rotate Clamp to desired height • Attach Camera Mount to the Router Stand at the desired height (Photo 6) • Connect the Camera power connector and communication connector (Photo 7) • Power on the transmitter, select either External or Internal power •...
  • Page 6 APPLICATION INSTRUCTIONS • The app provides live stream of the target to the user • The Connect/Disconnect button turns the camera display on/off NOTE: This can be used as a master reset button, by cycling the camera off then back on •...
  • Page 7 • The Group Size calculator can be used to calculate the group size on a target STEP 2 - Draw a line, of known length close to the group (Example: Most grid/line spacing on standard targets STEP 1 - Click Zoom/Pan measure grouping icon are spaced at 1”) STEP 3 - Select all of the target hits.
  • Page 8 GENERAL RECOMMENDATIONS • Although this system is designed to be weather resistant, it is not recommended that the device is left outside for extended periods • Always store your device in a dry location • Do not submerge any of the components •...
