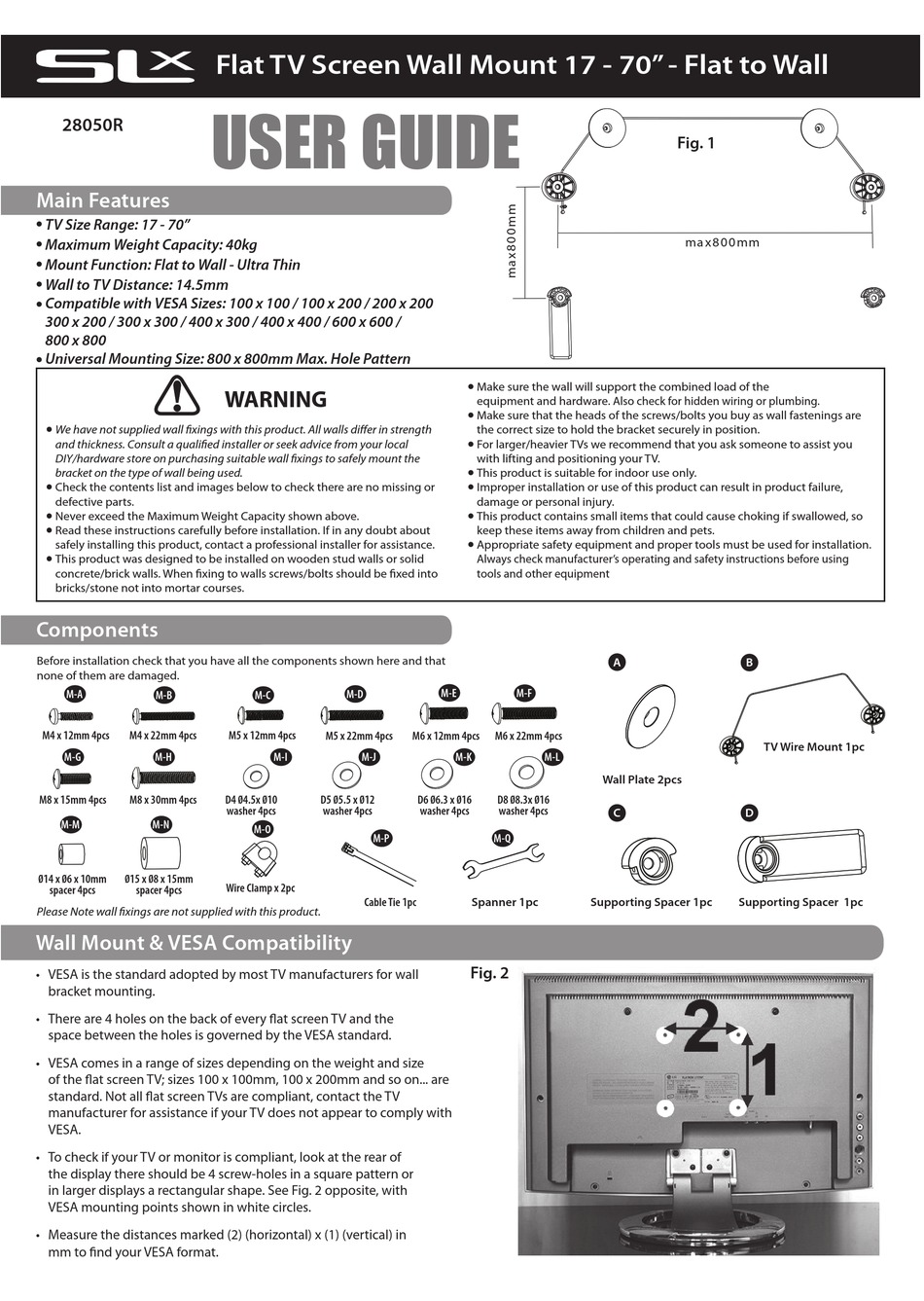

Philex SLx 28050R User Manual

28050R

Main Features

•
TV Size Range: 17 - 70"
•
Maximum Weight Capacity: 40kg
•
Mount Function: Flat to Wall - Ultra Thin
•
Wall to TV Distance: 14.5mm
•
Compatible with VESA Sizes: 100 x 100 / 100 x 200 / 200 x 200
300 x 200 / 300 x 300 / 400 x 300 / 400 x 400 / 600 x 600 /
800 x 800
•
Universal Mounting Size: 800 x 800mm Max. Hole Pattern
•
We have not supplied wall fixings with this product. All walls differ in strength
and thickness. Consult a qualified installer or seek advice from your local
DIY/hardware store on purchasing suitable wall fixings to safely mount the
bracket on the type of wall being used.
•
Check the contents list and images below to check there are no missing or
defective parts.
•
Never exceed the Maximum Weight Capacity shown above.
•
Read these instructions carefully before installation. If in any doubt about
safely installing this product, contact a professional installer for assistance.
•
This product was designed to be installed on wooden stud walls or solid
concrete/brick walls. When fixing to walls screws/bolts should be fixed into
bricks/stone not into mortar courses.

Components

Before installation check that you have all the components shown here and that
none of them are damaged.
M-A
M-B
M4 x 12mm 4pcs M4 x 22mm 4pcs
M-G M-H
M8 x 15mm 4pcs M8 x 30mm 4pcs
M-M M-N
14 x 6 x 10mm 15 x 8 x 15mm
spacer 4pcs spacer 4pcs
Please Note wall fixings are not supplied with this product.
Wall Mount & VESA Compatibility
• VESA is the standard adopted by most TV manufacturers for wall
bracket mounting.
• There are 4 holes on the back of every flat screen TV and the
space between the holes is governed by the VESA standard.
• VESA comes in a range of sizes depending on the weight and size
of the flat screen TV; sizes 100 x 100mm, 100 x 200mm and so on... are
standard. Not all flat screen TVs are compliant, contact the TV
manufacturer for assistance if your TV does not appear to comply with
VESA.
• To check if your TV or monitor is compliant, look at the rear of
the display there should be 4 screw-holes in a square pattern or
in larger displays a rectangular shape. See Fig. 2 opposite, with
VESA mounting points shown in white circles.
• Measure the distances marked (2) (horizontal) x (1) (vertical) in
mm to find your VESA format.
Flat TV Screen Wall Mount 17 - 70" - Flat to Wall
USER GUIDE
WARNING
M-D
M-C
M5 x 12mm 4pcs
M5 x 22mm 4pcs
M-I M-J
D4 4.5x 10 D5 5.5 x 12
washer 4pcs washer 4pcs
M-O
M-P
Wire Clamp x 2pc
Cable Tie 1pc
•
Make sure the wall will support the combined load of the
equipment and hardware. Also check for hidden wiring or plumbing.
•
Make sure that the heads of the screws/bolts you buy as wall fastenings are
the correct size to hold the bracket securely in position.
•
For larger/heavier TVs we recommend that you ask someone to assist you
with lifting and positioning your TV.
•
This product is suitable for indoor use only.
•
Improper installation or use of this product can result in product failure,
damage or personal injury.
•
This product contains small items that could cause choking if swallowed, so
keep these items away from children and pets.
•
Appropriate safety equipment and proper tools must be used for installation.
Always check manufacturer's operating and safety instructions before using
tools and other equipment
M-E
M-F
M6 x 12mm 4pcs M6 x 22mm 4pcs
M-K M-L
D6 6.3 x 16 D8 8.3x 16
washer 4pcs washer 4pcs
M-Q
Spanner 1pc
Fig. 2
Fig. 1
ma x800mm
A
B
TV Wire Mount 1pc
Wall Plate 2pcs
C D
Supporting Spacer 1pc Supporting Spacer 1pc
