Warnings:
* Risk of fire or electric shock.
* Disconnect all power before installing or servicing.
* Installation Instructions for qualified electricians only.
* Install per National Electrical Code and local regulations.
* Read Installation Instructions completely before installation.
* Failure to follow Installation Instructions may void warranties.
Pre-Installation Note:
clean and undamaging environment. The trim unit will be put in place after housing / ceiling installation. For joist installations or where
wiring access to housing is limited, it is advised to pre-wire the housing with leads before installation.
Butterfly Mounting (Commercial):
Step 1.
Fixture comes equipped with Universal BUTTERFLY
MOUNTING BRACKETS and take common 1" or 1-1/2" Black
Iron or Galvanized MOUNTING CHANNELS (Supplied By Others).
Step 2.
POSITION FIXTURE so the MOUNTING CHANNELS lie on
top of ceiling runners.
Step 3.
Fasten MOUNTING CHANNELS securely to the ceiling
runners with wire tie downs.
Step 4.
Secure MOUNTING CHANNELS to the UNIVERSAL
BUTTERFLY MOUNTING BRACKETS with wire tie downs.
Step 5.
ADJUST ELEVATION OF FIXTURE so that the surface of
the PERFORATED HOUSING PLATE SITS FLUSH with the top of
the finished ceiling surface AND THE TRIM COLLAR EXTENDS
FLUSH WITH THE FINISHED CEILING AND MUD PLATE.
Step 6.
The perforated housing plate is adjustable from 1/2" to
1" ceiling thickness. Fine adjustments can be made by loosen-
ing the two (2) 1/4" HEX SCREWS on both UNIVERSAL
BUTTERFLY MOUNTING BRACKETS and set collar depth
accordingly Fig 1 / Fig 5 Detail.
Mounting Channel
(By Others)
Universal Butterfly
Mounting Bracket
Perforated
Housing Plate
(2) 1/4" Hex Screws
Trim Collar
©2014 LF ILLUMINATION LLC
We reserve the right to change or
withdraw specifications without prior notice.
The trim insert and housing are packaged and shipped in separate cartons. Set the trim unit aside in a
Align Collar
Perforated
to Ceiling
Housing Plate

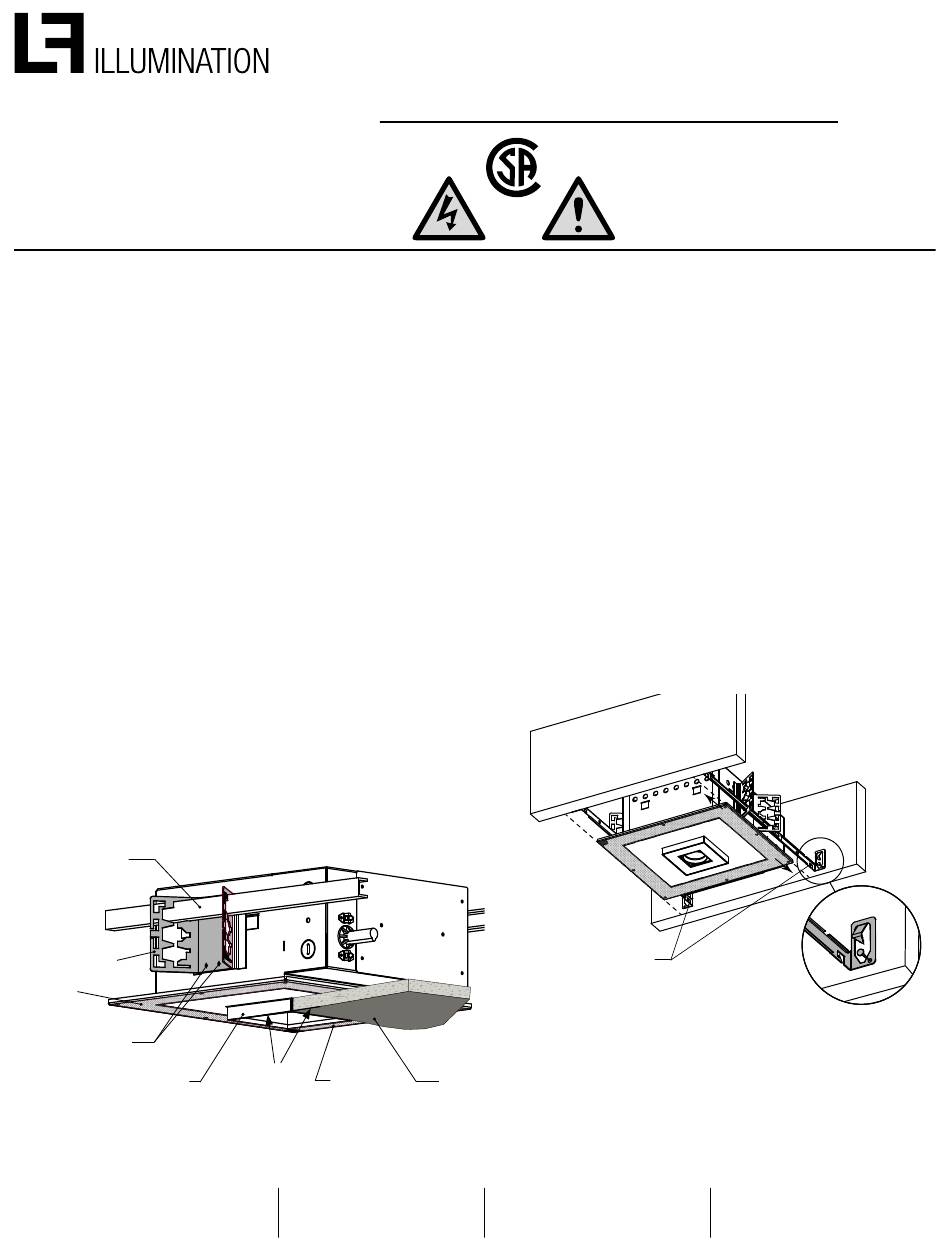

FIGURE 1
HEADQUARTERS
9200 Deering Avenue
Chatsworth CA 91311
INSTALLATION INSTRUCTIONS
®
C
US
Joist Installation:
HANGER BARS required for installation. (Supplied)
Step 1.
attach to joist or frame member using appropriate hardware for
material. See Fig 2, Detail 2A.
Step 2.
the PERFORATED HOUSING PLATE SITS FLUSH with the top of
the finished ceiling surface AND THE TRIM COLLAR EXTENDS
FLUSH WITH THE FINISHED CEILING AND MUD PLATE.
See Fig 1. Step 6.
Step 3.
Secure housing in position using wire tie downs.
Finished
Ceiling Material
Telephone: 818-885-1335
Toll Free: 855-885-1335
Fax: 818-576-1335
DUAL TRIM INSERT
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
Extend HANGER BARS to fit between joist and
ADJUST ELEVATION OF FIXTURE so that the surface of
Position housing horizontally by sliding on hanger bars.
Hanger Bars
(Supplied)
FIGURE 2
VF100 Series
Page 1 of 2
Detail 2A
www.lfillumination.com
VF1002LT 07.19.14
Advertisement
Table of Contents
Related Manuals for LF Illumination VF100 Series
Summary of Contents for LF Illumination VF100 Series
- Page 1 Align Collar Finished Perforated Trim Collar Ceiling Material to Ceiling Housing Plate FIGURE 1 ©2014 LF ILLUMINATION LLC HEADQUARTERS Telephone: 818-885-1335 We reserve the right to change or 9200 Deering Avenue Toll Free: 855-885-1335 www.lfillumination.com VF1002LT 07.19.14 withdraw specifications without prior notice.
- Page 2 VF100 Series INSTALLATION INSTRUCTIONS DUAL TRIM INSERT Page 2 of 2 TRIMLESS INSTALLATION ASSEMBLY ELECTRICAL CONNECTION: The housing features an easy access junction box for simplified field wiring installation. DO NOT modify the factory wiring settings as it may cause the luminaire to malfunction and void warranty.
