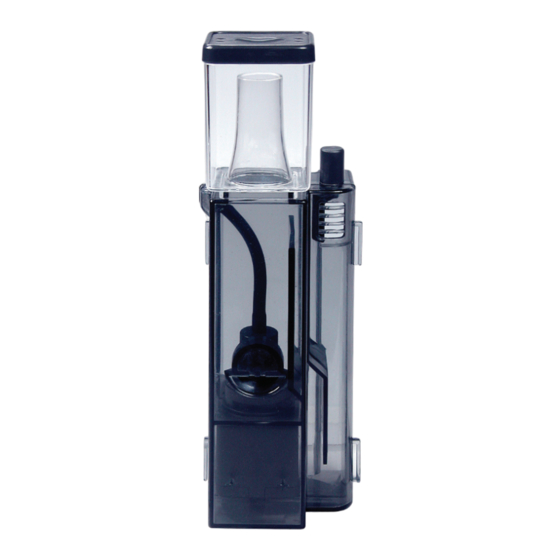

AquaticLife Internal Mini Skimmer 115 Installation & Maintenance Manual
Skimmer 30 gallon
Hide thumbs
Also See for Internal Mini Skimmer 115:
Related Manuals for AquaticLife Internal Mini Skimmer 115
Summary of Contents for AquaticLife Internal Mini Skimmer 115

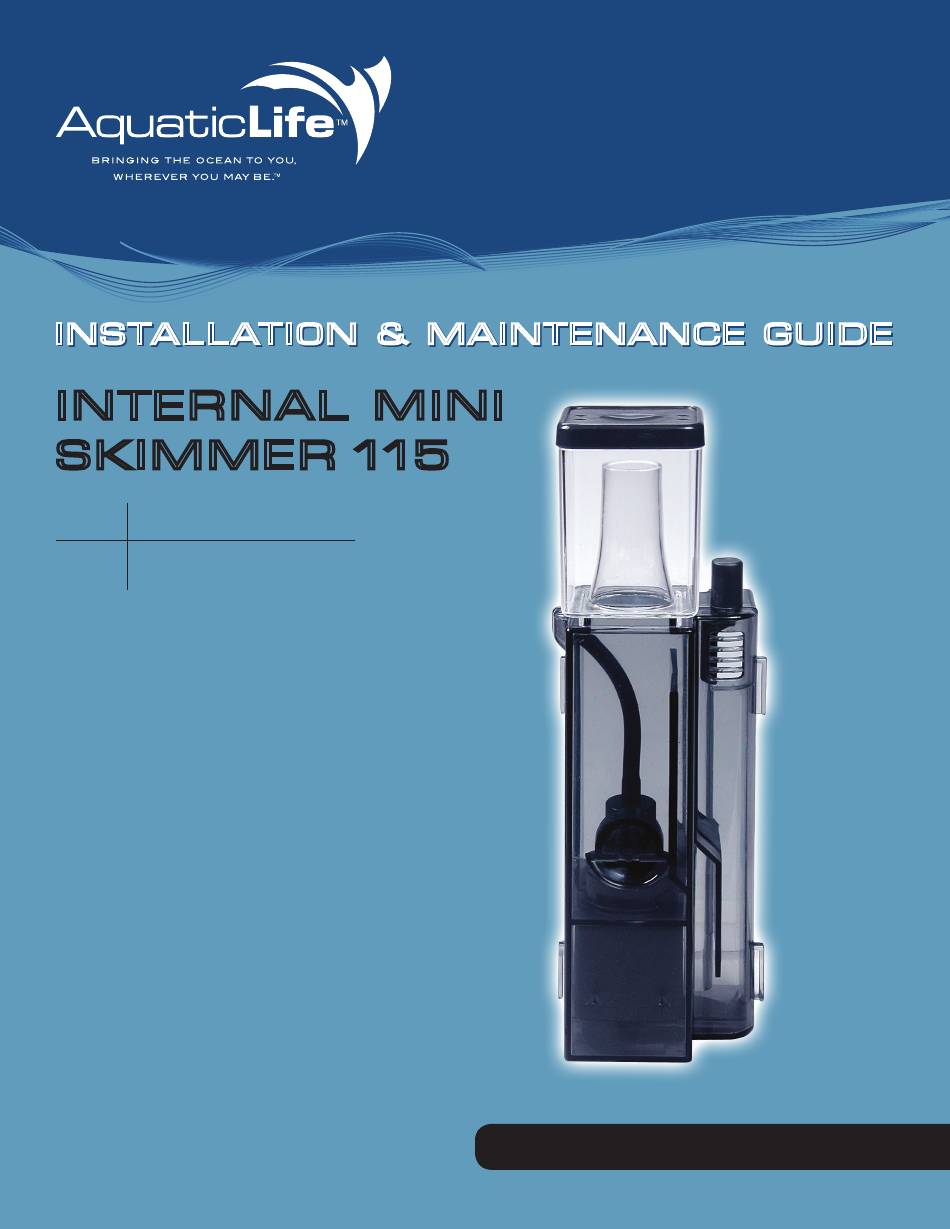

- Page 1 InstallatIon & MaIntenance GuIde InstallatIon & MaIntenance GuIde InteRnal MInI sKIMMeR 1 15 Item # Product Description 510114 Skimmer 30 Gallon w w w . a q u a t i c l i f e . c o m...
-
Page 2: Table Of Contents
Your purchase includes a coupon on the side of the box. Save Life Rewards™ point coupons from Aquatic Life products and redeem them for free merchandise at www.aquaticlife.com. This is our way of saying thank you for your loyalty. Copyright © Aquatic Life, LLC All rights reserved. -
Page 3: Important Safety Instructions
safety InStruCtIonS A) READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Warning B) DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. TO GUARD AGAINST INJURY, BASIC For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or pRECAUTIONS SHOULD BE OBSERvED, discard the appliance: INCLUDING THE FOLLOwING:... -
Page 4: Parts & Specifications
skIMMeR PartS / SPeCS Parts List Part item number Collection Cup with Cone 470115 Collection Cup Lid 470116 Suction Cup (4) 470117 Mounting Clip (2) 470118 Mounting Bracket 470119 Mounting Lock 470120 Front Housing Rear Housing Flow Control Knob 470121 Pump Impeller 470122... -
Page 5: Installation
skIMMeR InStallatIon PUMP instaLLation 1) Slide Impeller Shaft into Impeller and place Impeller Shaft Caps over Impeller Shaft. 2) place Impeller into pump. 3) Slide pump Cover onto pump. 4) Insert pump with pump Cover into Front Housing. 5) Insert venturi Tube into hole on top of Front Housing. ControL Knob anD HoUsing 1) Insert Flow Control Knob into Front Housing. -
Page 6: Mounting Clips And Suction Cups
skIMMeR InStallatIon MoUnting CLiPs anD sUCtion CUPs (oPtion #1) 1) Attach Suction Cups to Mounting Clips. 2) Route power Cord through built in channel in Rear Housing. 3) Slide Mounting Clips over Rear Housing and lock into clips on Front Housing. MoUnting braCKet anD LoCK (oPtion #2) 1) Slide Mounting Lock onto Mounting Bracket. -
Page 7: Operation
skIMMeR oPeratIon sKiMMer Positioning place Skimmer in the aquarium so that the water level is just below the top of the housing. Secure the Skimmer to the aquarium by either the mounting clips or the mounting bracket. NOTE: The air intake must be above the water line. -
Page 8: Maintenance
skIMMeR MaIntenanCe Monitor the height of the bubbles in the Collection Cone on a daily basis and adjust the Flow Control Knob as needed. Also inspect the intake of the Skimmer to clear any obstructions that would impede water flow. Maintenance on the Impeller is recommended every 3 months minimum. -
Page 9: Glossary Of Terms
GlossaRy of terMS Detritus: Non-living particulate organic material such as dead plants, organisms or fecal matter. Detritus is normally colonized by communities of microorganisms which act to decompose the matter. Drip Loop: To arrange an electrical cord so it hangs down well below the outlet before running back up again. -
Page 10: Product Registration & Warranty
Card and mail it in within 15 days from the date of purchase or register your product online at www.aquaticlife.com. Some Aquatic Life products will include a Serial Number. To validate your warranty, the Serial Number must be included for appropriate products. - Page 11 Bringing the Ocean to You, Wherever You May Be and Life Rewards are trademarks of Aquatic Life LLC Commerce, CA 90040 www.aquaticlife.com © Copyright Aquatic Life LLC P/N 9000076 REV 05/11...
